DX51D+Z Pre-painted Galvanized Steel Coil For Construction
Product Details:
| Place of Origin: | China |
| Brand Name: | HUIYI-PPGI |
| Certification: | ASTM, AISI, GB, JIS, DIN, EN |
| Model Number: | G550 , G300,DX51D+Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard exporting package , wrapped with waterproof paper. Then after fully wrapped with high density PE film. Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical. |
| Delivery Time: | 15-35days |
| Payment Terms: | L/C,T/T,D/P |
| Supply Ability: | 5000 tons per month |
|
Detail Information |
|||
| Name: | PPGI Steel Coil | Width: | 600-1250mm |
|---|---|---|---|
| Thickness: | 0.12MM-1.2MM | Color: | RAL Standard |
| Standard: | ASTM,GB,JIS,AISI,DIN | Coil Id: | 508mm Or 610mm |
| Type: | Steel Coil,Steel Sheet | Application: | Building Decoration / Electrical Household Appliances |
| Zinc Coating: | 30 - 275g/m2 | Paint: | 17-25 μm/5-10 μm |
Product Description
Product Description:

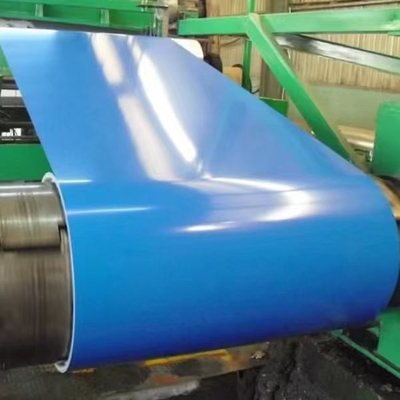

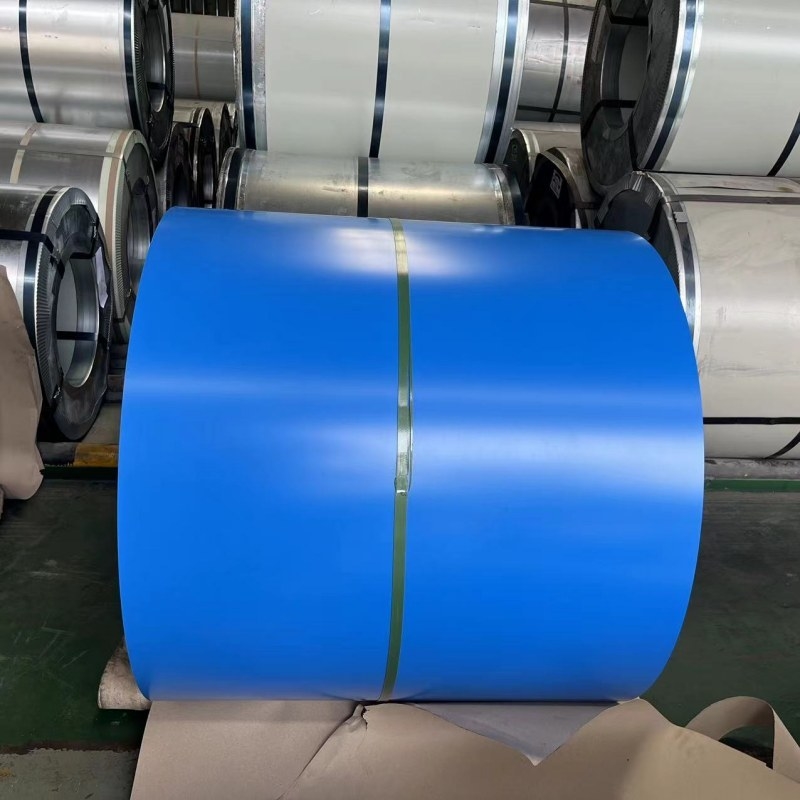

Huiyi PPGI Steel Coil merges a durable galvanized steel base with a high-performance painted coating (PVDF/HDP/SMP), delivering superior corrosion resistance and aesthetic appeal. It offers excellent weatherability and color retention, with thicknesses from 0.15mm to 1.5mm and full RAL color customization. Ideal for architectural, industrial, appliance, and automotive applications.
Product Parameters:
|
Brand Name
|
Huiyi |
|
Standard
|
AISI, ASTM, DIN, GB, JIS
|
|
Surface
|
Pre-painted (PVDF/HDP/SMP options)
|
|
Zinc coating
|
Z40-275g/m2
|
|
color
|
Ral Color
|
|
Inner Diameter
|
508mm-610mm
|
|
Outer Diameter
|
800mm-1500mm
|
|
Application
|
Automotive Manufacturing,Electrical Appliances,Roofing
|
Key Features:
Galvanized Protection: The base material of PPGI coils is galvanized steel, which, combined with the surface coating, provides dual-layer protection.
Oxidation Resistance: The coating gives PPGI coils strong anti-oxidation properties, effectively preventing issues such as rust, corrosion, and fading.
Wide Range of Colors and Finishes: PPGI coils are available in various colors and surface effects (e.g., glossy, matte, textured, etc.).
Excellent Weather Resistance: The coating offers outstanding weather and UV resistance, ensuring long-term durability even under prolonged sun exposure.
Applications:
1. Construction & Architectural
Widely used in roofing, wall cladding, roller shutters, modular containers, and commercial building systems, offering durability and aesthetic flexibility.
2. Automotive & Transportation
Suitable for tractor casings, vehicle interiors, protective barriers, and EV charging infrastructure, combining formability with corrosion resistance.
3. Household Appliances
Ideal for washing machines, refrigerators, kiosks, and other household or commercial appliance housings thanks to its decorative and rust-resistant properties.
4. Industrial & Niche Applications
Includes industrial ceilings, control cabinet casings, condenser units, agricultural greenhouses, cleanrooms, and newspaper dispensing machines.
Packing and Shipping:
Each coil is securely wrapped in moisture-resistant plastic film, reinforced with steel straps, and shipped with standard inner/outer diameters. Export-ready packaging ensures safe transit via sea or land.
FAQ:
Q1: Do you provide samples?
A: Yes, we offer complimentary samples globally. Customers only need to cover the shipping cost.
Q2: What details should I provide for an inquiry?
A: Please let us know the grade, width, thickness, coating type, and estimated quantity required.
Q3: How is the price determined?
A: Pricing fluctuates based on raw material market conditions. We always strive to offer the most competitive rate.
Q4: Can I visit your factory?
A: You’re welcome to visit our factory—we regularly host clients from around the world.
