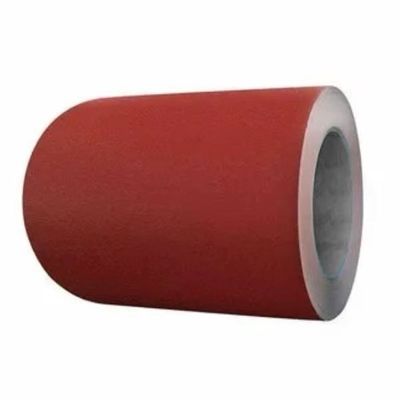

AZ150 AZ180 Cold Rolled Prepainted Galvanised Steel Coil DX51D Z275 For Roofing
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PPGI--HUIYI |
| Certification: | SGS,BV,ISO |
| Model Number: | G550,G450,G400,CGCC,CGLCC,CGCH,CGLCH,DX51D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 tons |
|---|---|
| Price: | USD/MT |
| Packaging Details: | export packing with waterproof paper, PE Film,Iron sheet |
| Delivery Time: | 20-35days |
| Supply Ability: | 5000 tons per month |
|
Detail Information |
|||
| Color: | Ral Colors | Width: | 914mm-1200mm |
|---|---|---|---|
| Thickness: | 0.12-1.2mm | Standard: | ASTM,GB,JIS,AISI,DIN |
| Coil Weight: | 3-8 Tons | Zinc Coating: | 30-275g/m2 |
| Spangle: | Regular Spangle | Application: | Roofing,Structure |
| Highlight: | DX51D Z275 Prepainted Galvanised Steel Coil,Prepainted Galvanised Steel Coil,Cold Rolled Prepainted Galvanised Steel Coil |
||
Product Description
| Attribute | Value |
|---|---|
| Color | RAL colors |
| Width | 914mm-1200mm |
| Thickness | 0.12-1.2mm |
| Standard | ASTM, GB, JIS, AISI, DIN |
| Coil weight | 3-8 Tons |
| Zinc coating | 30-275g/m² |
| Spangle | Regular Spangle |
| Application | Roofing, Structure |
PPGI steel coils are produced through a process where a layer of galvanized or aluminum-zinc-silicon alloy is continuously applied to steel. This involves three main steps:
- Surface Preparation: The steel surface is thoroughly cleaned and chemically treated to remove any impurities.
- Coating Application: A precise method of roll-coating is used to apply one or more layers of liquid paint.
- Curing Process: The coated steel is then baked and cooled under controlled conditions to ensure the paint adheres properly.
Long-Lasting Color Retention: Our advanced coating technology ensures vibrant color that lasts for years, resisting fading and chalking even when exposed to intense sunlight and harsh weather.
Superior Coating Adhesion: The proprietary formulation creates an exceptionally strong bond with the steel substrate, allowing it to withstand extreme temperatures, humidity, and corrosive elements.
Extended Service Life: Engineered for longevity, our product offers superior resistance to corrosion, fading, and environmental degradation, resulting in fewer replacements and lower total cost of ownership.
Architectural Cladding: Ideal for exterior walls, facades, and roofing systems in commercial, residential, and industrial buildings.
Premium Appliance Manufacturing: Used in refrigerators, washing machines, ovens, and air conditioners for clean finish and moisture resistance.
Consumer Electronics Casings: Provides structural integrity and electromagnetic shielding for televisions, speakers, and computer towers.
Industrial Components: Suitable for cabinets, enclosures, panels, and framework components exposed to demanding conditions.
| Model Number | SGCC/CGCC |
| Type | Steel Coil |
| Technique | Hot/Cold Rolled |
| Material Thickness | 0.12-2.0mm |
| Surface Finished Color | RAL Standard |
| Paint Coating | Front 20-35um, Back 5-15um |
All-Round Excellence: Combines excellent decorativeness, bendability, corrosion resistance, strong coating adhesion, and impressive color fastness.
Economical Alternative: Serves as an efficient substitute for wood panels with convenient installation, energy conservation benefits, and contamination resistance.
Enhanced Durability: Available with surface texturing for superb anti-scratch qualities and produced in a wide array of colors for design flexibility.
