Color Coated Steel PPGI Coil For Making Corrugated Metal Roofing Sheet
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PPGI---HUIYI |
| Certification: | SGS,ISO,BV |
| Model Number: | JIS,ASTM,GB,DIN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 tons |
|---|---|
| Price: | USD/MT |
| Packaging Details: | Standard exporting package.wrapped with waterproof paper，high density PE film，iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical |
| Delivery Time: | 20-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 tons per month |
|
Detail Information |
|||
| Product Name: | PPGI Coil | Type: | Steel Coil |
|---|---|---|---|
| Thickness: | 0.12MM-1.2MM | Width: | 600-1250MM |
| Color: | RAL Color | Spangle: | Regular Spangle/Non Spangle |
| Material: | DX51D+Z,DX52D+Z | Application: | Agricultural Use, Roofing |
| Highlight: | PPGI Coil For Roofing Sheet,Color Coated PPGI Coil,Corrugated Metal Roofing Sheet PPGI Coil |
||
Product Description

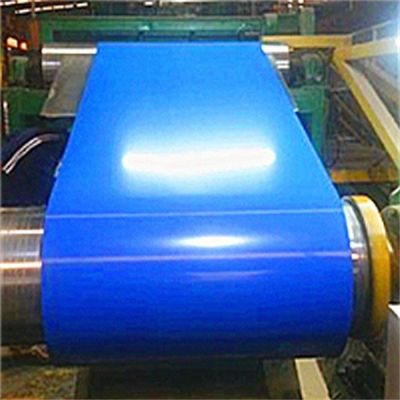

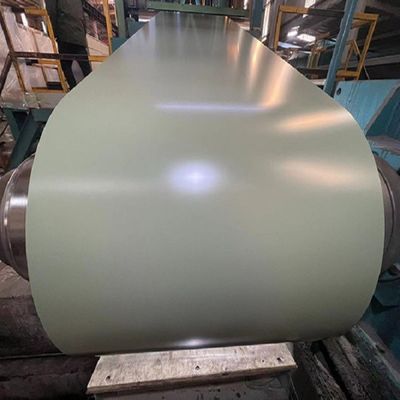

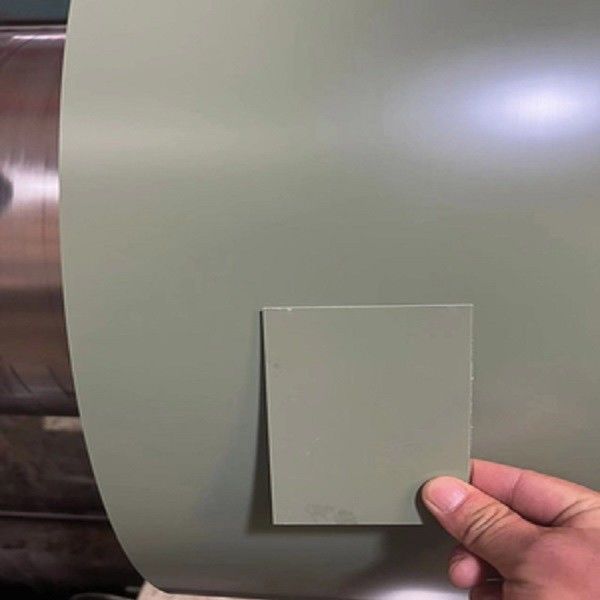

Color Coated Steel PPGI Coil For Making Corrugated Metal Roofing Sheet
Introduction:
PPGI, also known as pre-painted galvanized steel, pre-coated steel, or color coated steel, is manufactured using hot-dip galvanized steel coil as the substrate. The production process involves surface pretreatment, followed by the application of one or more layers of liquid coating using a roll coating method, and finally baking and cooling. The coatings used include polyester, silicon modified polyester, and others, offering high durability, corrosion resistance, and formability.
Specification:
| Material | CGCC,SGCH,G350,G450,G550 |
| Zinc coating | Z40-275g/m2 |
| Painting Coating | Top: 15 to 25 μm back: 7 +/- 2 μm |
| Coating type | PE, SMP, PVDF |
| Resin con-structure | Double painting and double baking process |
| Back side coating color | Light grey, white and so on |
| Coil ID | 508 / 610MM |
| Coil Weight | 3-5 Tons |
| Hardness | Soft hard(60),medium hard(HRB60-85),full hard(HRB85-95) |
| Surface structure | Norma,Matt,PVC film,wood grain,Flower Grained,embossed, etc |
Application Of Prepainted Galvanized Steel Coils:
Construction (Outdoor): Plant, Agriculture Warehouse, Balcony handrail, newstall, roller shuttle door.
Construction (Interior): Door, Light steel structure, Elevator.
Electric Appliance: Refrigerator, Switch Cubicle, Air Conditioner, stover and bread maker.
House furnishings: Radiator, Light cover, chest of srawers, sesk, ded, bookshelf.
Transportation: Decoration of Autor and train, clapboard, container, shiftting board of steamboat.
Others: White boad, Dustbin, ad boad, instrument panel, weighing machine and photograph material.
Packing & Shipping:
3 layers of packing,inside is kraft paper, water plastic film is in the middle,
ouside GI steel Sheet to be covered by steel strips with lock with inner coil sleeve.
FAQ:
1.Are the products tested before shipping?
Yes, all of our products was qualified before shipping. We test every batch every day.
2.What's your normal delivery time?
Our delivery time about 15-30days for standard sizes, if you have other requirements like hardness, quanity and width ,it is about 20-40days. But don't worry ,we also try our best for the delivery time ,because time longer and our cost is higher.
3.Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but the freight will be borne by our client.
4.Q: What is your payment method?
A: L/C at sight or 30%as deposit and the balance paid against scan copy of BL.
5.Q:What is the difference between PPGI and PPGL coils?
A: Galvanized steel, PPGI, is coated completely with zinc, while Galvalume steel, PPGL, is coated with aluminum, zinc, and a small amount of silicone. This provides superior corrosion resistance and durability over the typical galvanized coating.
