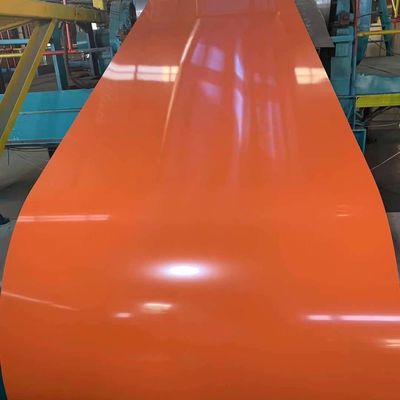

PPGI Color Coated Galvanized Corrugated Metal Roofing Sheet Prepainted GI Steel Coil
Product Details:
| Place of Origin: | China |
| Brand Name: | HUIYI-PPGI |
| Certification: | SGS,BV |
| Model Number: | TDC51D,TDC512D,CGCC,,CGLCC,CGLCD1,CGLCH... |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 tons per thickness |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard exporting package. |
| Delivery Time: | 10-30days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 30000Tons per month |
|
Detail Information |
|||
| Product Name: | PPGI Steel Coil | Standard: | Q/BQB440 |
|---|---|---|---|
| Grade: | TDC51D,TDC512D,CGCC,,CGLCC,CGLCD..... | Thickness: | 0.12mm~1.0mm |
| Width: | 100-1500mm | Zinc Coating: | Z30-Z275g/m2 |
| Coil Weight: | Standard Is 5-8mt | Color: | Blue , White , Green , Red , Yellow Etc. |
| Highlight: | Galvanized Corrugated Metal Roofing Sheet,Color Coated Ppgi Prepainted Steel Coil,Prepainted GI Steel Coil |
||
Product Description
High-durability Polyester PPGI Steel Coil Color Coated Steel Coil For Buildings and Construction
Generally, PPGL steel coil refers to a product formed by coating (roll coating) a substrate after surface treatment or bonding an organic film and baking, which can be further processed into a final product. It’s called "pre-coated steel plate" and "plastic steel plate" in foreign countries. PPGL steel coil has beautiful colors or patterns when it leaves the factory, so it is also called "color coated steel plate". Color coated steel plate is commonly called in our country and is simply called "color coated plate" or "color plate".It is made by taking hot galvanized sheet and zinc-iron alloy hot galvanized sheet as the substrate through surface pretreatment, coating one or more layers of liquid coating by roll coating, baking and cooling. The used coatings including polyester, silicon modified polyester, high-durability polyester, polyvinylidene fluoride, epoxy and high corrosion-resisting coating are widely used for building, transport, home appliances, solar energy, furniture, etc. It is mainly used as the side door plate of refrigerators, and shell of DVDs, air conditionings, freezers, and washing machines.
The product uses metal ion dissolution of the antibacterial mechanism, in the course of antibacterial agent slowly release metal ions, dissolution of metal ions that can destroy the bacterial cell membrane or cell protoplasm activity of enzyme activity, also has anti-yellow staphylococcus and Escherichia coli Of the role, with high antibacterial efficiency, antibacterial time is long and so on. Antibacterial color plate on Staphylococcus aureus, Escherichia coli and other Gram-negative bacteria rate of 99% or more, the growth of fungi and fungi also significantly inhibited, is to reduce cross-infection and bacterial infection probability of an effective way , Has broad market prospects and huge application potential.
Pre-painted galvanised /PPGI steel coil specifications :
| Description | Prepainted Galvanized Steel Coil/Sheet | |
| Standard | Q/BQB440 | |
| Grade | DX51D+Z/DX52D+Z/DX53D+Z | |
| Thicknees | 0.12-1.0 mm | |
| Width | 100-1500mm | |
| Surface Finish | Normal Coated | |
| Zinc Coating | Z30-Z275g/m2 | |
| Color | all RAL Colors, or According to Customers‘ Require/Sample | |
| Category Of Finish Coating | High-durability Polyester | |
| Polyvinylidene Fluoride | ||
| Anti-static | Polyester | |
| Silicon Modified Polyesters | Easy-Cleaning | |
| Coating Type | Top Surface | Bottom Surface |
| Double Coated | Double Coated | |
| Double Coated | Single Coated | |
| Coating Thickness | Top Surface:10-25microns | Back Surface: 3-20microns |
| Coating Structure | Primer | Finish Coating |
| Epoxy Primer | Polyester | |
| Polyester Primer | Silicon Modified Polyesters | |
| Water-soluble Acrylic Acid Primer | High-durability Polyester | |
| Polyurethane Primer | Polyvinylidene Fluoride | |
| Method of Test | 1. Acid/Alkaline-Resistance Test | |
| 2. Test of Resistance to Neutral Mist | ||
| 3. Air Exposure Test | ||
| Futher Process | 1. Cut coil into Sheet | |
| 2. Corrugated Roofing Sheet | ||
| Coil ID | 508mm | |
| Coil weight | 3-10 ton | |
| MOQ | 1 container | |
| Shipment Time | Within 15-30 workdays after receiving deposit or workable L/C | |
| Export Packing | Standard Export Seaworthy Package.Suit for all kinds of transport,or as required | |
Pre-painted galvanised /PPGI steel coil introductions :
PPGI steel coil is a cost-effective material, which can be applied in various industries, such as construction, transportation, home appliances, furniture, etc. PPGI coil is suitable for investment because of its promising market and great processability. While the pre-painted galvanized sheet is user-friendly, which can be used or sold directly.
Here comes several frequent-used GI products:
- Color coated roofing sheets
- Car steel sheets
household electric appliances steel sheets
PRODUCT DESCRIPTION
PACKING AND SHIPPING
Standard exporting package.wrapped with waterproof paper.Then after fully wrapped with high density PE film. ID 508MM steel inner core 3mm(IN NET WEIGHT).Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4
Query:
1. How to make sure your quality?
A: We have experienced inspector to check each order before production,if can not reach customer's
quirements,we won't export to our clients.
2. Which contries does your company export to?
A: We have exported more than 20contries until now .
Asia: Brunei,Malaysi,Korea, Singapore, Vietnam, Thailand, Burma, India, Pakistan, Philippines,
Bangladesh, Nepal and Sri Lanka,Jordan, Israel, Saudi Arabia, Iraq, Iran,
Syria, Lebanon, UAE, Yemen
Europe: Romania, Turkey, Greece
Africa: Egypt, Algeria, Nigeria, Ghana, Sudan, Cameroon
Oceania: Australian
3. Hour about your experience?
A: We have exported steel products more than 6years, know all kinds of steel products very well And
know our customers' requirements very well.We can always grasp the market and suggest our clients to
order at the appropriate time.
