Color Coated PPGI Steel Coils Prepainted Galvanized Zinc Material
Product Details:
| Place of Origin: | China |
| Brand Name: | HUIYI-CZ |
| Certification: | SGS,BV,ISO9001 |
| Model Number: | DX51D+AZ,DC51D+AZ,CGLCC,SGLCC,CGCH,SGLCH... |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | USD/MT |
| Packaging Details: | Standard exporting Iron pallet package.waterproof paper,PE film,then covered with iron sheet with metal edge protectors. |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 8000 tons per month |
|
Detail Information |
|||
| Product Name: | Back Painted Coating PPGI Steel Coil Using For Central Heating Slice | Color: | All RAL Colors, Or According To Customers‘ Require/Sample |
|---|---|---|---|
| Paint Brand: | Akzo Nobel,Nippon,Dulux,PPG,Etc | Front Paint Coating: | 14-25um |
| Back Paint Coating: | 5-10um | Thickness: | 0.12-1.5mm Or As Your Requirements |
| Warranty: | According To Its Base Material And Paint Coating | Surface Finish: | Normal Coated |
| Width: | 600-1250 Mm Or As Your Requirements | Grade: | DX51D+Z/DX52D+Z/DX53D+Z |
| Highlight: | Color Prepainted Galvanized Steel Coil,Galvanized PPGI Colour Coated Sheet,Prepainted Ppgi Coated Coil |
||
Product Description
High-durability Polyester PPGI Steel Coil Color Coated Steel Coil For Buildings and Construction
Pre-painted galvanized steel combines utility with beauty. It consists of tin, chrome, zinc or paint, which are the extra finish applied to the natural steel surface. The application of coating is to protect the surface of steel from oxidation and it is also used to enhance requirements for visual appearance.It is made by taking gavalume sheet and alloy gavalume sheet as the substrate through surface pretreatment, coating one or more layers of liquid coating by roll coating, baking and cooling. The used coatings including polyester, silicon modified polyester, high-durability polyester, polyvinylidene fluoride, epoxy and high corrosion-resisting coating are widely used for building, transport, home appliances, solar energy, furniture, etc. It is mainly used as the side door plate of refrigerators, and shell of DVDs, air conditionings, freezers, and washing machines.
Color coated steel plate is a new type of building material that has been rapidly developed in the world in the past 30 years. It is refined by chemical pretreatment, primary coating, color coating and other processes on a continuous unit. The coating quality is much more uniform, stable and ideal than that of single-piece spraying or brushing on the formed metal surface.
Featured by excellent decoration, formability, corrosion resistance and strong coating adhesion, the color coated steel plate can keep the novel color for a long time. Therefore, the color coated steel plate can obtain good economic effects such as replacing wood with steel, efficient construction, energy conservation, pollution prevention, etc., and become an ideal material for manufacturing building plates today.
Pre-painted galvanised / PPGI steel coil details :
| Thickness | 0.12-1.5mm |
| Width | 600-1250mm |
| Length | Any length based on coil weight or requirements |
| Coating | Zinc 30 - 180 / Al-Zinc 30 -100 |
| Color | Ral color as required |
| Finish Paint | PE SMP HDP PVDF |
| Paint Thickness | Top 14-25 μm / Back 5 -10 μm |
| Price Term | FOB CFR CIF |
| Payment | L/C at sight |
| T/T 30% in advance,70% balance by B/L copy |
| Hot-dip Galvanized Steel Coil | |||||||
| CNS 1244 | JIS G 3302 | ASTM A653M | AS1397 | EN 10346 | |||
| Specifications | Hot-rolled Base: | Cold-rolled Base: | Hot-rolled Base: | Cold-rolled Base: | DS | G1~G3 | DX51-52-53D |
| SGHC | SGCC | SGHC | SGCC | DDS | G250 | S220GD | |
| SGHD | SGCD | SGHD | SGCD | CS TYPE A, B, C | 300 | (250 | |
| SGH | 1~3 | SGH | 1~3 | FS TYPE A, B | 350 | 280 | |
| 340 | SGC | 340 | SGC | SS GRADE | 400 | 320 | |
| 400 | 340 | 400 | 340 | 33(230) | 450 | 350 | |
| 440 | 400 | 440 | 400 | 37(255) | 550 | 550) | |
| 490 | 440 | 490 | 440 | 40(275) | |||
| 540 | 490 | 540 | 490 | 50(340)CLASS 1~3 | |||
| 570 | 570 | 80(550)CLASS 1~3 | |||||
| Thickness of Base Steel (mm) | 1.2~4.60 | SGCD1~3: 0.27~2.0mm | 1.2~4.60 | SGCC,SGC340: 0.18~3.0mm; | DS: 0.27~2.0mm; | G1: 0.19~4.50mm; | DX51D: 0.19~4.50mm; |
| SGCC/SGC: 0.19~2.0mm | SGCD1~3: 0.25~2.0mm; | DDS: 0.25~2.0mm; | G2&G3: 0.27~2.0mm; | S220~550GD: 0.19~4.6mm; | |||
| SGC400, 440: 0.229~3.0mm; | CS/FS: 0.19~4.50mm; | G250~550GD: 0.19~4.6mm; | S250GD: 0.18~2.02mm; | ||||
| SGC490: 1.8~3.0mm; | SS GRADE 33~80: 0.19~4.50mm; | G300: 0.229~2.3mm; | DX52D: 0.295~2.0mm; | ||||
| SGC570: 0.229~2.2mm | CS TYPE A, B, C, Grade 33, 37: 0.18~3.0mm; | G350: 0.229~3.0mm; | DX53D, 54D: 0.25~2.0mm; | ||||
| FS TYPE A, B: 0.295~2.0mm; | G450: 0.6~3.0mm; | S280GD, S350GD: 0.229~3.0mm; | |||||
| Grade 40, 50: 0.229~3.0mm; | G500: 1.1~2.5mm; | S320GD: 0.229~2.3mm; | |||||
| Grade 55(380): 0.35~3.0mm; | G550: 0.229~2.2mm | S550GD: 0.229~2.2mm | |||||
| Grade 60(410): 0.47~1.6mm; | |||||||
| Grade 65(450): 0.6~3.0mm; | |||||||
| Grade 80: 0.229~2.2mm | |||||||
| Coating Mass: | Z08~Z60 | Z08~Z60 | Z90~Z600 | Z100~Z600 | Z100~Z350 | ||
| Regular Spangle | |||||||
| (thickness > 0.60mm) | |||||||
| Minimized (Zero) | |||||||
| Spangle | |||||||
| Surface Finish | Regular Spangle, Minimized (Zero) Spangle | ||||||
| Surface Treatment | Chromating, Oiled, Resin Coated (Anti-Fingerprint), or according to your requirements | ||||||
| Remarks | 1. Tolerance for thickness, width, flatness and so on conforms to individual product specification. | ||||||
| 2. All products with thickness 2.0mm and under can be skin passed. | |||||||
| 3. The specification for thicknesses under 1.6mm for hot-rolled base metal according to JIS G3302 will be the same as for thicknesses 1.6mm. | |||||||
| 4. The coil inside diameters can be either 508mm or 610mm. The maximum coil outside diameter is 2000mm. | |||||||
| 5. Please make inquiries to our company for products with special specifications. | |||||||
| 6. Coating mass beyond the specifications above can be provided upon mutual agreement between customers and us. | |||||||
Introduction of pre-painted galvanised/PPGI steel coil :
Pre-painted galvanised/PPGI steel coil usually the galvalume steel,GL after surface treatment on their surfaces coated with a certain thickness of the adhesive coating or layer of organic film,after curing,become a color plate,with excellent corrosion resistance,molding,decoration in the building,home appliances,light industry,transportation and other industries widely used as an ideal composite material.Corrugated Sheets are divided into Galvanized Corrugated Sheets,Galvalume Corrugated Sheets,Color Coated Corrugated Sheets according to its based material and surface processing mode.Such kind of products are widely used in roofing metals.
Since It's very cost-effective and longer warranty compared to clay title,more and more clients used such kind of products to Shelter from the wind and rain .
There are many kinds of shape for such kinds of products,which will make the buildings more artistic and attractive .
PPGI Steel coil features & advantages:
1)The most popular feature of this roofing material is its durability. These roofing sheets can easily last for about 5 to 7 years.
2)Corrugated metal roofing sheets are treated and coated with chemicals to prevent the growth of algae and mildew. They are also resistant to rot, rust and insects.
3)Other beneficial features include its non-combustible nature.These sheets have a Class A fire rating,which is the highest rating as far as fire-resistance is concerned.
4)They are also lightweight, which facilitates easy installation and reduction of load on the roof structure.

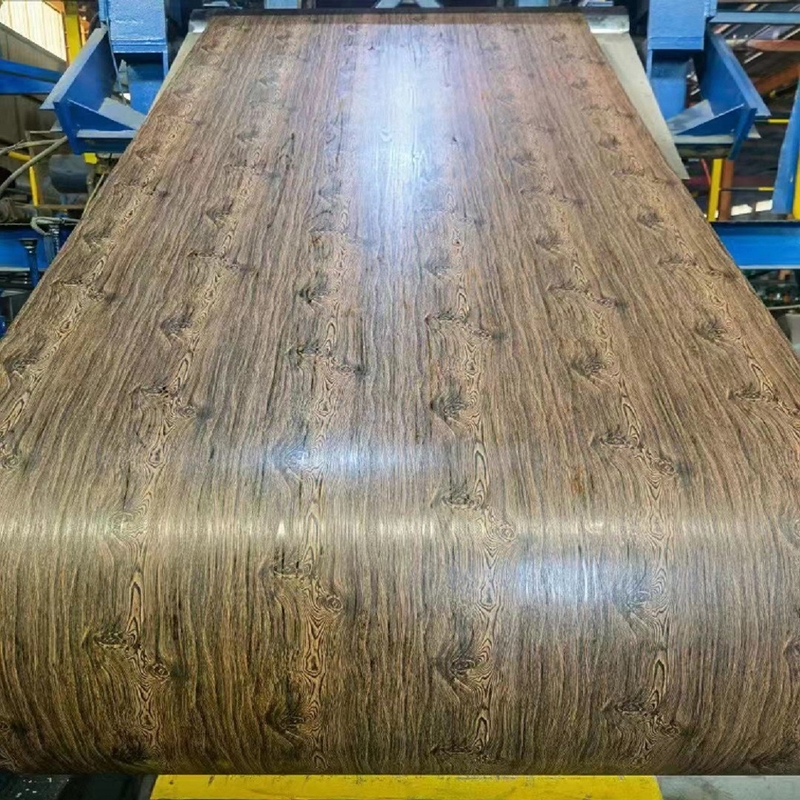

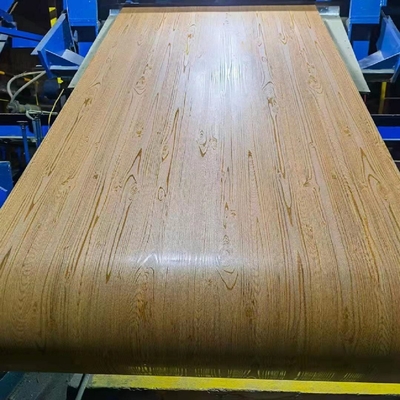

Here comes some cases of pre-painted galvanised/PPGI steel coil as below:
Company profile :
SHANGHAI HUIYI INTERNATIONAL CO.,LTD has got huge support and help from our customers and suppliers,we have been growing up with fast and healthy pace.We will do our best to give our customers better price ,better quality and better servic.
Our products are mainly exported to Africa,Southeast Asia,The Middle East,Europe,which are used in projects and Construction field.
We have been continuing to supply superior products,services and solutions to customers based on our competitive advantages in brand,technology,innovation and ability.
FAQ:
1. Minimum Order Quantity?
A: The MOQ is 22 tons, the galvanized steel sample is available as long as your quantity is ok.
2. What kind of terms of payment?
A: T/T, L/C are available.
3.Is free sample available?
A: Yes, free sample is available.
4. Can you do Customization & Reproduction if I provide a photo?
A: Yes, we do Customization & Reproduction service.
5. Does the packaging safe and arrive in good conditions?
A: Yes, safe Packing guarantee , all the products will arrive your door under good conditions.
We response to problem of shipping if there unfortunately is.
6. How long does it usually take to deliver the product?
A: We will make the shipment to you immediately. It will take about 18 to 40 days arrive worldwide. It depends on the specific quantity.
