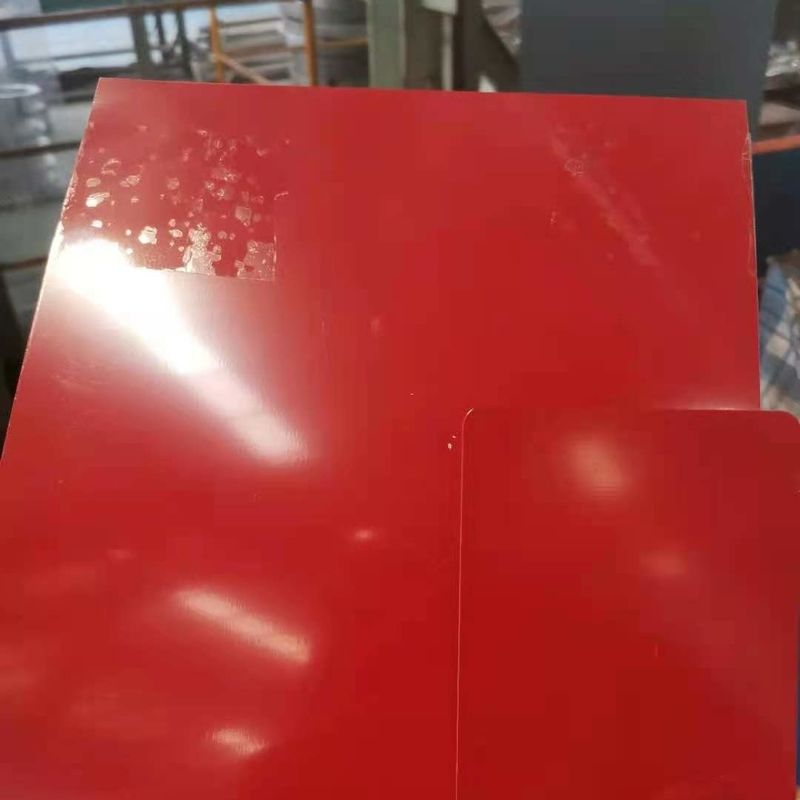

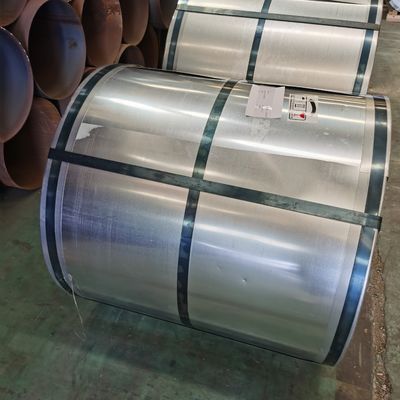

PVDF SMP Color Coated PPGI Steel Coil JIS G3322 ID 610MM

PVDF SMP Color Coated PPGI Steel Coil JIS G3322 ID 610MM

Product Details:

Place of Origin: CHINA
Brand Name: PPGI---HUIYI
Certification: SGS,ISO,BV
Model Number: CGCC,CGLCC, CGCH , G550,G400,G450,DX51D

Payment & Shipping Terms:

Minimum Order Quantity: 25 tons
Price: USD/MT
Packaging Details: Standard exporting package.wrapped with waterproof paper,high density PE film,iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical
Delivery Time: 20-35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: PE / PVDF / SMP , JIS G3322 , Color Coated Coil / Plat Surface Treatment: Coated,galvanised
Thickness: 0.12-2.0mm Width: Under 1500mm
Material: GI,GL,SS Steel,Aluminium Application: Roofing ,decoration
Coil ID: 508MM,610MM Coil Weight: Based On Customers‘requirements
Highlight:

Color Coated PPGI Steel Coil

,

PVDF PPGI Steel Coil

,

JIS G3322 PPGI Steel Coil

Product Description

PE / PVDF / SMP , JIS G3322 ,  Color coated coil / plat



PPGI & PPGL (prepainted galvanized steel & prepainted galvalume steel) also known as pre-coated steel or color coated steel coil, It is a product made of hot-dip galvanized steel sheet, hot-dip galvalume steel sheet, electro galvanized steel sheet, etc. After surface pretreatment, one or several layers of organic coating are applied on the surface, and then baked and solidified. The color coated steel coil is light in weight, beautiful in appearance, and has good anti-corrosion performance, and can be directly processed. The color is generally divided into gray, sea blue, brick red, etc. It is mainly used in advertising, construction, decoration, home appliances, electrical appliances, Furniture industry and transportation industry. The coatings used for color coated steel coils are based on the environment in which the resin is selected, such as polyester silicon modified polyester, polyvinyl chloride plastisol, polyvinylidene chloride, and the like





Specification of prepainted Galvanised steel :



 Standard :   JIS G3312-1998 , ASTM A755 , GB / T12754 - 2006
 Grade :  SPCC , SPCD , SPCE , DX51 / 52 / 53 / 54D + Z , Q195 / 215 / 235 And Etc
Base Metal :  Cold Rolled Steel / Galvanized Steel / Galvalume Steel
Material Thickness :  Normally 0.15 -1.5 mm
Width :  30 - 1500 mm ( Mainly in 914 mm ,1000 mm , 1219 mm and 1250 mm )
Coating :  PE / PVDF / SMP
Coating Thickness :  Min. Single Side - 50 g / sqm Max. Single Side - 275 g / sqm
Top Painting :  15 - 35 micrometer
Back Painting :  5 - 25 micrometer
Surface Finished Color :  According To RAL Standard
Packing Condition : Seaworthy



Characteristics :



Color Coated Steel Feature Excellent Decorativeness , Bendability , Corrosion Resistance, Coating Adhesion And Color Fastness .

They Are Ideal Substitutes For Wood Panels In The Construction Industry Because Of Their Good Economic Features Such As Convenient Installation , Conservation Of Energy And Resistance To Contamination .

Color Steel Sheets With Surface Texturing On The Surface Has Extremely Superb Anti - Scratch Qualities , Can Be Produced In Various Colors , And Has Credible Quality And Can Be Mass - Produced Economically.



Product Application of prepainted galvalume steel :



Buildings And Constructions Workshop , Warehouse , Corrugated Roof And Wall , Rainwater , Drainage Pipe , Roller Shutter Door
Electrical Appliance Refrigerator , Washer , Switch Cabinet , Instrument Cabinet , Air Conditioning , Micro - wave Oven , Bread Maker
Furniture Central Heating Slice , Lampshade , Book Shelf
Carrying Trade Exterior Decoration Of Auto And Train , Clapboard , Container , Insulation Board
Others Writing Panel , Garbage Can , Billboard , Timekeeper , Typewriter , Instrument Panel , Weight Sensor , Photographic Equipment
