G550 Pre Painted Decorative PPGI Steel Coil 914mm

G550 Pre Painted Decorative PPGI Steel Coil 914mm

Product Details:

Place of Origin: CHINA
Brand Name: PPGI--HUIYI
Certification: SGS,BV,ISO
Model Number: G550,G450,G400,CGCC,CGLCC,CGCH,CGLCH,DX51D

Payment & Shipping Terms:

Minimum Order Quantity: 25 tons
Price: based on actual market
Packaging Details: export packing with waterproof paper, PE Film,Iron sheet
Delivery Time: 20-35days
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Custom Cut Width Prepainted Galvanised Steel Coil For Roofing , Decoration ,etc. Color: Red,Brown,Yellow,Black,Grey,Orange,Ral Colors ,etc.
Paint Brand: PPG,AKZO,NIPPON,DULUX Front Paint Coating: 20-35um
Back Paint Coating: 5-15um Zinc Coating: Z30-Z275g/m2
Width: 914mm/1000mm/1200mm/1219mm Or Other Required Width Inner Diameter: 508mm/610mm
Thickness: 0.12-2.0mm Packing: Export Packing With Waterproof Paper, PE Film,Iron Sheet
Highlight:

G550 PPGI Steel Coil

,

HUIYI 35um colour coated galvanized sheets

,

HUIYI 914mm PPGI Steel Coil

Product Description

Custom Cut Width Prepainted Galvanised Steel Coil for roofing , decoration ,etc.



It is made by taking hot galvanized sheet and zinc-iron alloy hot galvanized sheet as the substrate through surface pretreatment, coating one or more layers of liquid coating by roll coating, baking and cooling. The used coatings including polyester, silicon modified polyester, high-durability polyester, polyvinylidene fluoride, epoxy and high corrosion-resisting coating are widely used for building, transport, home appliances, solar energy, furniture, etc. It is mainly used as the side door plate of refrigerators, and shell of DVDs, air conditionings, freezers, and washing machines .Pre-painted steel coil / Color coated steel coil usually the galvanized steel,GL after surface treatment on their surfaces coated with a certain thickness of the adhesive coating or layer of organic film,after curing,become a color plate,with excellent corrosionresistance,molding,decoration in the building,home appliances,light industry,transportation and other industries widely used as an ideal composite material.It is the products coated steel sheet (galvanized , zincalumed , cold plate , etc.)after surface chemical treatment (degreasing , phosphating , and chromium hydrochloric acid passivation and coated (rolled) with coatings , again baking to forming .And it is produced by printing or baking paints onto the surface of cold-rolled steel or GI or GL sheets.That features a wide range of colors and patterns which are commonly used to make the exterior of buildings and consumer electronics products look more polished and sophisticated. They are made on high-speed continuous coating lines through a number of processes such as chemical pre-treatment, primary coating and finish coating, thus they have better coating quality than single piece coating.



Specification:



Standard: JIS G3312-1998, ASTM A755, GB/T12754-2006 Zinc Coating : Min Single Side --- 30g/sqm
Grade: SPCC,SPCD,SPCE,DX51/52/53/54D+Z,Q195/215/235 And Etc Paint Coating  : front 20-35um,back 5-15um
Base Metal: Cold Rolled Steel/Galvanized Steel/Galvalume Steel Paint Brand:Akzo Nobel,Nippon,PPG
Material Thickness: Normally 0.12-2.0mm Coil ID:508MM/610MM
Width: 30-1500mm(Mainly in 914mm,1000mm,1219mm and 1250mm) Surface Finished Color: According To RAL Standard
Coating: PE/PVDF/SMP Packing Condition: Seaworthy


Characteristics:



Color coated steel feature excellent decorativeness, bendability, corrosion resistance, coating adhesion and color fastness. They are ideal substitutes for wood panels in the construction industry because of their good economic features such as convenient installation, conservation of energy and resistance to contamination. Color steel sheets with surface texturing on the surface has extremely superb anti-scratch qualities.Can be produced in various colors, and has credible quality and can be mass-produced economically.



Product Application:



1. Furniture

Lampshade , Central Heating Slice, Book Shelf

2. Buildings And Constructions

Corrugated Roof And Wall , Workshop, Roller Shutter Door,Warehouse , Rainwater, Drainage Pipe

3. Carrying Trade

lsolation Board , Exterior Decoration Of Auto And Train, Clapboard, Container

4. Electrical Appliance

Instrument Cabinate, Refrigerator, Washer, Switch Cabinet , Bread Maker, Air Conditioning, Micro-wave Oven

5. Others

Timekeeper, Typewriter, Instrument Panel,Writing Panel, Garbage Can, Billboard,  Weight Sensor, Photographic Equipment



Loading Pictures:

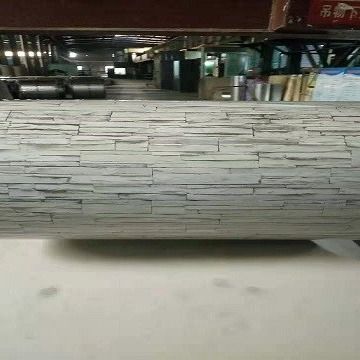

G550 Pre Painted Decorative PPGI Steel Coil 914mm 0

G550 Pre Painted Decorative PPGI Steel Coil 914mm 1
