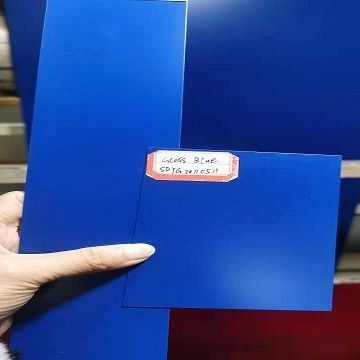

1200mm Al Mg Mn PPGI Profile Sheet CGLCC CGLCH

1200mm Al Mg Mn PPGI Profile Sheet CGLCC CGLCH

Product Details:

Place of Origin: CHINA
Brand Name: PPGI---HUIYI
Certification: SGS,BV,ISO-9001
Model Number: SGCC,CGCC,SGLCC,CGLCC,GCCH,SGCH,G550,G450,G400,G300

Payment & Shipping Terms:

Minimum Order Quantity: 25 TONS
Price: Deponds on customers’requirements
Packaging Details: Standard exporting package.
Delivery Time: 25-35days
Payment Terms: L/C, T/T
Supply Ability: 3000 tons per month
Get Best Price Contact Now

Detail Information

Type: Steel Coil,steel Coil/steel Sheet Grade: SGCC,CGCC,DX51D,CGLCC
Zinc Coating: 30-275g/m2,AZ150 Surface Treatment: Coated,Galvanized,Printing / Matte
Coil ID: 508MM / 610MM Front Paint Coating: 15-35um
Back Paint Coating: 5-25um Color: Ral Colors ,or Based On Customers‘samples
Highlight:

1200mm ppgi profile sheet

,

HUIYI CGLCH ppgi steel sheet

,

HUIYI Al Mg Mn ppgi profile sheet

Product Description

Al-Mg-Mn color plate / Al-Mg-Mn PPGL / Al-Mg-Mn Prepainted Galvalume Steel Coil,CGLCC,CGLCH



Introduction:



Color coated steel plate usually the galvanized steel,GL after surface treatment on their surfaces coated with a certain thickness of the adhesive coating or layer of organic film,after curing,become a color plate,with excellent corrosion resistance,molding,decoration in the building,home appliances,light industry,transportation and other industries widely used as an ideal composite material.It is made by taking hot galvanized sheet and zinc-iron alloy hot galvanized sheet as the substrate through surface pretreatment, coating one or more layers of liquid coating by roll coating, baking and cooling. The used coatings including polyester, silicon modified polyester, high-durability polyester, polyvinylidene fluoride, epoxy and high corrosion-resisting coating are widely used for building, transport, home appliances, solar energy, furniture, etc. It is mainly used as the side door plate of refrigerators, and shell of DVDs, air conditionings, freezers, and washing machines.



Number and Mechanical Property



No. Tensile test
Yield strength
Rel (MPa)
Tensile strength
Rm (MPa)
Percentage elongation after fracture A%
1.8~<2.0 2.0~<2.5 2.5~<3.2 3.2~<4.0 ≥4.0
SPHC   ≥270 ≥29 ≥30 ≥31 ≥32 ≥32
SPHD   ≥270 ≥32 ≥33 ≥35 ≥37 ≥39
SPHE   ≥270 ≥33 ≥35 ≥37 ≥39 ≥41
SS330 ≥205 330~430 ≥26
SS400 ≥245 400~510 ≥21
SAPH310
SAPH370 ≥370 ≥255 ≥32
SAPH400
SAPH440

Notes: 1. The tensile test specified value in the table is suitable for longitudinal test piece.
2. Tensile test uses sample of L0=50mm, b=25mm, namely P14 sample in GB/T228.

3. Steel strip is delivered in the state of hot rolling.



PRODUCTION PARAMENTERS



Description  :     Pre-painted galvanized /galvalume steel coil/sheet

Coil Weight  :     Standard is 5-8mt, always based on customers’ requirements

Thickness    :     0.12mm~3.0mm

Width           :     914mm,1000mm,1200mm,1219mm,1250mm,1500mm



PRODUCT APPLICATION



1200mm Al Mg Mn PPGI Profile Sheet CGLCC CGLCH 0

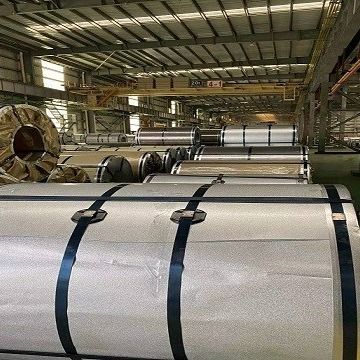

PACKING AND SHIPPING



Standard exporting package.wrapped with waterproof paper.Then after fully wrapped with high density PE film.Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical



1200mm Al Mg Mn PPGI Profile Sheet CGLCC CGLCH 1
