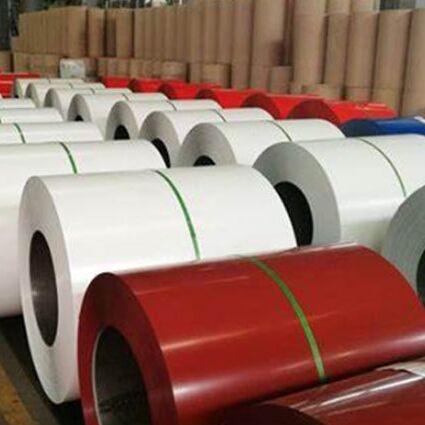

S550GD+AZ High Strength PPGL Galvalume Steel Coil For Solar Mounting Structures
Product Details:
| Place of Origin: | China |
| Brand Name: | Huiyi-PPGL |
| Certification: | EN 10346, ASTM A792, JIS G3322, ISO 9001 |
| Model Number: | S550GD+AZ |
| Document: | HUIYI CATALOGUE.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25Tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exporting Packing with 3layers including the waterproof plastic film，Waterproof paper - plastic film-metal wrap. |
| Delivery Time: | 15-30 Days |
| Payment Terms: | L/C,D/P,T/T |
| Supply Ability: | 5000MT/Month |
|
Detail Information |
|||
| Product Name: | Pre-painted Galvalume Steel Coil | Product Type: | Coil / Sheet / Strip |
|---|---|---|---|
| Coating Weight: | 30-180g/㎡ | Coil Weight: | 3 - 8 Tons |
| Thickness: | 0.12 - 3.5mm | Yield Strength: | ≥ 550 MPa |
| Tensile Strength: | 560 – 750 MPa | Key Feature: | 2–4× Corrosion Resistance Vs. Standard Galvanized Steel |
Product Description
HDP Coated High Durability PPGL Galvalume Steel Coil For Agricultural Barns & Sheds
Our S550GD+AZ High Strength PPGL Galvalume Steel Coil is engineered for solar mounting structures requiring high load capacity and long-term durability. With a minimum yield strength of 550 MPa (EN 10346) and a 55% aluminum-zinc coating, it delivers 2–4 times greater corrosion resistance than standard galvanized steel—ensuring 20+ years of maintenance-free service for rails, torque tubes, and support frames.
Product Specifications
| Base Material | S550GD+AZ |
|---|---|
| Zinc Coating |
AZ30 - AZ275 |
| Thickness | 0.12 - 3.5mm |
| Width | 600mm - 1500mm |
| Topcoat Type | PVDF / HDP / SMP available |
| Color Options | All RAL colors / Custom colors available |
| Surface Treatment | Chromated Passivation / Oiled / Anti‑Fingerprint |
| Key Performance | 20+ Years Maintenance-Free Service Life |
Applications
● Solar Mounting Rails & Purlins: The primary load-bearing profiles directly supporting solar panels—benefiting from the 550 MPa yield strength that enables lighter, taller, and more efficient structures while reducing steel consumption.
● Ground‑Mount Support Structures: Legs, piles, torque tubes, and frames for utility‑scale solar farms requiring exceptional structural integrity and longevity.
● Roof‑Integrated Mounting (BIPV): Frames for commercial and industrial rooftop installations where both strength and corrosion resistance are critical.
● Carport & Canopy Framing: Durable structural elements for integrated solar carports, charging stations, and shaded parking structures.
Packaging and Shipping
Triple-Shield Packaging
VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
Global Logistics
FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Quality Assurance
Pre-shipment inspection and moisture indicators for transit protection.
FAQ
Do you provide samples?
Yes, for regular sizes sample is free, buyer need to pay freight cost.
How can I get a quotation?
You can leave us message, and we will reply in time. And you can also find our contact details on the Contact page.
How long is the delivery time?
It depends on the order quantity, normally the delivery time takes around 15-30 working days. Please kindly contact us before ordering.
