Prepainted Galvalume Steel Coil Aluminum Zinc Alloy Coated Steel Metal Roofing Coil

Prepainted Galvalume Steel Coil Aluminum Zinc Alloy Coated Steel Metal Roofing Coil

Product Details:

Place of Origin: China
Brand Name: HUIYI
Certification: SGS, BV, ISO9001
Model Number: SGLCC/CGLCC

Payment & Shipping Terms:

Minimum Order Quantity: 25 tons each thickness
Price: negotiated
Packaging Details: Standard exporting package.wrapped with waterproof paper.Then high density PE film.Then after fully covered with iron sheet
Delivery Time: 20-35days
Payment Terms: L/C, T/T, D/P
Supply Ability: 50000 tons per year
Get Best Price Contact Now

Detail Information

Product Name: PPGL Steel Coil Coating Type: PE/SMP/HDP/PVDF
Zinc: 40g-180g Yield Strength: G300-G550
Color: White/Blue/Green/Red/Gray/Black/etc. Paint Thickness: Top Side: 10-25μm ; Back Side: 5-8μm
Application: Buildings And Constructions Technique: Cold Rolled,Hot Rolled
Package: Standard Export Package Base Material: Galvanized Steel, Galvalume Steel, Aluzinc Steel
Highlight:

Prepainted Galvalume Steel Coil

,

Aluminum Zinc Alloy Coated Steel Coil

Product Description



PPGL Steel Coil Introduction:

1. PPGL steel coil is a premium roofing and cladding material crafted from steel coated with an aluminum-zinc alloy and finished with a durable polymer paint. It offers exceptional corrosion resistance, making it ideal for all global climates.

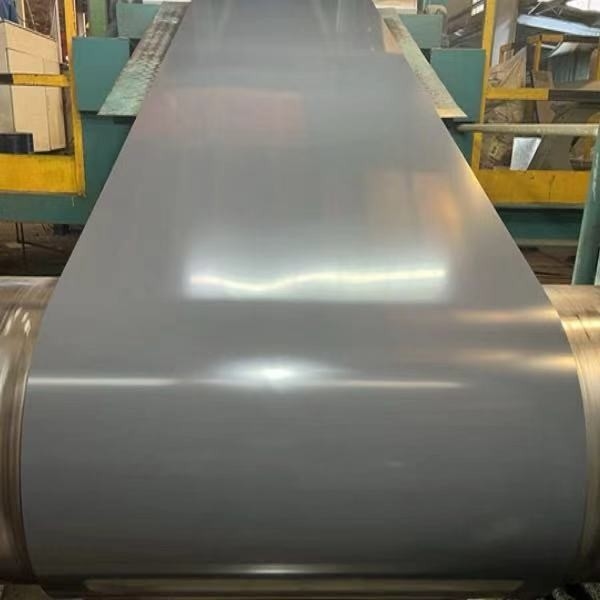

Prepainted Galvalume Steel Coil Aluminum Zinc Alloy Coated Steel Metal Roofing Coil 0

Specification of PPGL Steel Coil:



■ Product Name: PPGL (Pre-painted Galvalume) Color Coated Steel Coil



■ Material: Aluminum-zinc alloy coated structural grade steel substrate



■ Paint System: Polyester paint system with PRIMER + TOP COAT



■ Topcoat: High performance fluoropolymer resin (PVDF)



■ Paint Thickness: Primer 8-10μm | Topcoat 18-22μm | Total 25-30μm



■ Color: As per supplied color sample/RAL/BS shades



■ Thickness: 0.50mm (tolerance ±0.03mm)



■ Width: Standard is 1220mm (can be customized)



■ Length: Max 2000m on request (supplied in rolls)



■ Warranty: 10 years against perforation, 15 years against peel

Technical Parameters:

Property Value
Surface Treatment Coated
Top Paint PE/SMP/HDP/PVDF
Material Galvalume Steel Coil
Tolerance(Thickness) +/-0.03mm
Tolerance(Width) +/-2mm
Thickness 0.12-2.0mm
Packing Standard Export Packing
Back Paint Epoxy/Modified Polyester
Coil ID 508/610mm
Width 600-1250mm
Coil Weight 3-8 Tons


PPGL Advantages:

1. Corrosion Resistance

The aluminum-zinc alloy coating provides excellent protection against corrosion even in highly corrosive environments near coastlines or industrial areas.



2. Durability

When combined with a durable paint finish, PPGL steel sheets can last over 25 years with only nominal maintenance under normal weather conditions.



3. Strength and Support

PPGL steel is strong yet lightweight. It can support heavy loads and withstand high wind loads making it suitable for roofing and cladding applications in commercial buildings.

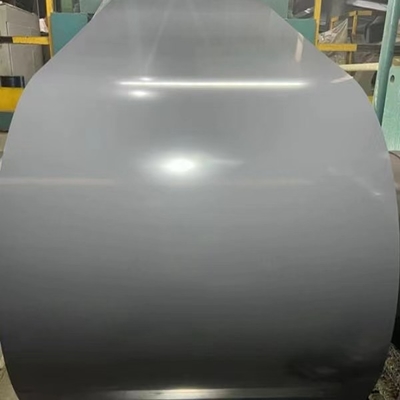

Prepainted Galvalume Steel Coil Aluminum Zinc Alloy Coated Steel Metal Roofing Coil 1


PPGL Applications:



1. Roofing




2. Cladding




3. Rainwater Goods




4. Industrial Siding




5. Agricultural Buildings

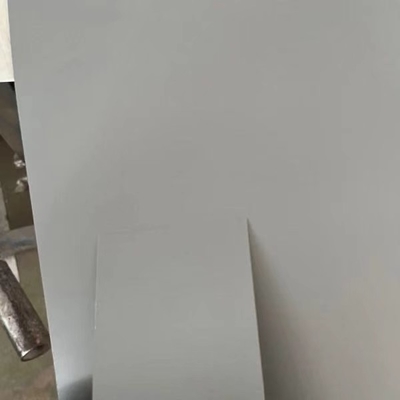

Prepainted Galvalume Steel Coil Aluminum Zinc Alloy Coated Steel Metal Roofing Coil 2

Standard Seaworthy Export Packing:

3 layers of packing, inside is kraft paper, water plastic film is in the middle and outside GI steel sheet to be covered by steel strips with lock.


1. Export Seaworthy Packing: a water proof paper + an inhibitor film + a steel sheet cover with steel edge protectors and sufficient steel straps.


2. Packging Details:s customer's requirements.



Prepainted Galvalume Steel Coil Aluminum Zinc Alloy Coated Steel Metal Roofing Coil 3



FAQ:

Q1.: How durable is PPGL roofing/cladding sheet?
A1: PPGL sheets last over 20 years with proper installation and mild cleaning. The galvalume coating and premium paint provides long-term corrosion resistance.



Q2.: What type of climates can PPGL sheets be used in?
A2: PPGL is suitable for all 4 seasons and can withstand extreme temperatures, humidity, rainfall etc. making it ideal for most countries/regions.



Q3.: How much weight can PPGL cladding panels hold?
A3.: PPGL sheets have high strength-to-weight ratios. 0.5mm panels can safely hold 35-50kg/sqm static loads under normal conditions.



Q4.: What maintenance is required for PPGL cladding/roofs over time?
A4.: Periodic washing using a soft brush and mild detergent is sufficient to retain the looks of PPGL for decades.
