Width 600-1250mm Zinc Coating 40-275g Prepainted Galvalume Steel Coil For Construction Materials

Width 600-1250mm Zinc Coating 40-275g Prepainted Galvalume Steel Coil For Construction Materials

Product Details:

Place of Origin: China
Brand Name: HUIYI-CZ
Certification: SGS,BV,ISO9001
Model Number: DX51D+AZ,CGLCC,

Payment & Shipping Terms:

Minimum Order Quantity: 25tons each thickness
Price: USD/MT
Packaging Details: Standard exporting Iron pallet package.waterproof paper,PE film,then covered with iron sheet with metal edge protectors.
Delivery Time: 25-35days
Payment Terms: L/C, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Standard: ASTM/JIS/GB Paint Type: PE/SMP/PVDF
Type: Steel Coil,Steel Plate Paint Surface: Matt/wrinkled/glossy
Zinc Coating: 40 - 275 G Per Square Meter Grade: DX51D+AZ, SGLCC, CGLCC
Coil Weight: 3-5 Tons,3-8 Tons,3-10 Tons,3-8Tons Application: Construction, Home Appliances, Cars
Highlight:

Construction Materials Prepainted Galvalume Steel Coil

,

275g Prepainted Galvalume Steel Coil

,

1250mm Prepainted Galvalume Steel Coil

Product Description

Introduction

Color-coated coil is a product of hot galvanized plate, hot aluminum plated zinc plate, electrogalvanized plate, etc., after surface pretreatment (chemical degreasing and chemical conversion treatment), coated with one or several layers of organic coating on the surface, and then baked and cured. Because coated with a variety of different colors of organic paint color steel coil named, referred to as color coated coil.



Color-coated roll has light weight, beautiful appearance and good corrosion resistance, but also can be directly processed, the color is generally divided into gray, blue, brick red, mainly used in advertising, construction, home appliance industry, electrical appliance industry, furniture industry and transportation industry.

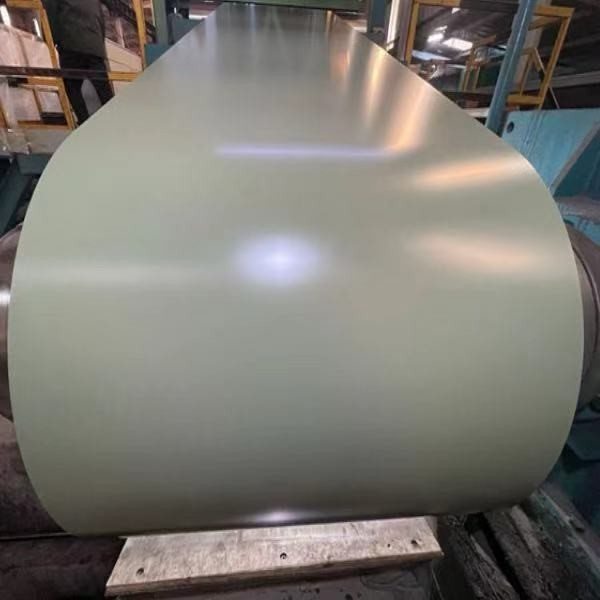

Width 600-1250mm Zinc Coating 40-275g Prepainted Galvalume Steel Coil For Construction Materials 0



Specification

Paint Surface Matt/wrinkled/glossy
Paint Type PE/SMP/PVDF
Application making pipes, cutting sheets, making small tools, making corrugated sheets, making container, making fences
Surface Treatment Film protection or not
Thickness 0.12-0.8mm or as your request
Standard ASTM/JIS/GB
Grade SGCC, CGCC, SGCH, DX51D+Z/DX53D+Z/S220GD-550GD
Width 600-1250mm or as required
Length By coil
Zinc Coating 40 - 275 g per square meter
Painting Thickness Top side:10-25 microns;Back side:5-20 microns
RAL Color RAL No. / Your samples
Coil ID 508mm / 610m
Delivery Time within 7 days
Sample Provided for free





Color-coated Steel Coil Substrate Classification:

There are three primary types of substrates used in color-coated steel coils:



1. Hot-Dip Galvanized Substrate – Produced by immersing steel sheets in a molten zinc bath, forming a protective zinc coating on the surface.


2. Hot-Dip Aluminized Zinc Substrate (e.g., 55% Aluminum, 45% Zinc)– Created by hot-dipping steel sheets in a molten alloy of aluminum and zinc, followed by baking and curing to enhance durability.


3. Electrogalvanized Substrate– Formed through an electroplating process that deposits a layer of zinc onto the steel surface.



Each substrate offers distinct corrosion resistance and performance properties tailored to different applications.



Color-coated Steel Coil Advantages

1. Corrosion Resistance

The aluminum-zinc alloy coating provides excellent protection against corrosion even in highly corrosive environments near coastlines or industrial areas.



2. Durability

When combined with a durable paint finish, PPGL steel sheets can last over 25 years with only nominal maintenance under normal weather conditions.



3. Strength and Support

PPGL steel is strong yet lightweight. It can support heavy loads and withstand high wind loads making it suitable for roofing and cladding applications in commercial buildings.

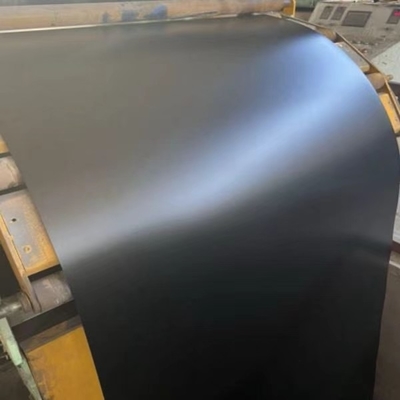

Width 600-1250mm Zinc Coating 40-275g Prepainted Galvalume Steel Coil For Construction Materials 1

Color-coated Steel Coil Applications:

1. Roofing
PPGL steel is extensively used for roofing in industrial, commercial, and residential construction due to its exceptional corrosion resistance and long-term durability.



2. Cladding
Thanks to its high-quality color-coated finishes, PPGL steel is a popular choice for exterior wall cladding and facades, maintaining visual appeal and structural integrity for decades.



3. Rainwater Goods
PPGL steel profiles are widely used to fabricate rain gutters, downpipes, flashings, and other rainwater management systems, offering reliable weather resistance and longevity.



4. Industrial Siding
PPGL steel panels are an ideal solution for warehouses, factories, and agricultural sheds, combining impact resistance, fire safety (non-combustibility), and low maintenance.



5. Agricultural Buildings
PPGL sheets provide a cost-effective and weather-resistant
 solution for farm structures such as sheds, barns, and stables, ensuring protection against harsh environmental conditions.

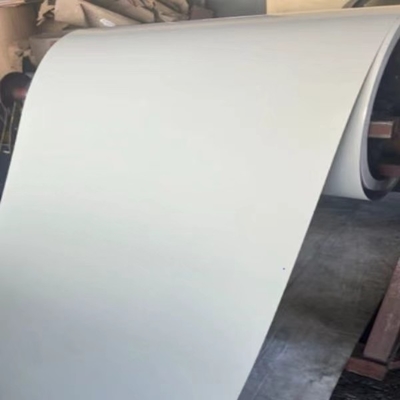

Width 600-1250mm Zinc Coating 40-275g Prepainted Galvalume Steel Coil For Construction Materials 2

Standard Seaworthy Export Packing:

Color-coated coils are typically packed and shipped in a way that ensures their protection during transportation and handling. Common types of packing include coil packaging with edge protectors and VCI (volatile corrosion inhibitor) paper, followed by secure bundling with steel straps or wrapping with plastic film.

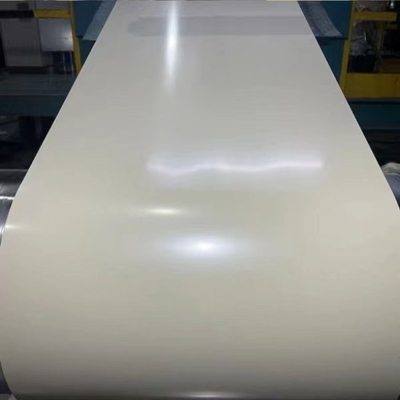

Width 600-1250mm Zinc Coating 40-275g Prepainted Galvalume Steel Coil For Construction Materials 3



FAQ:

Q1:What are your company's main products ?
A1: Our main products are
GI & GL & PPGI & PPGL steel coil / sheet / plate / strip coil, currugated galvanized steel sheet, angle bar, c channel

Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available.

Q3. What are the advantages of your company ?
A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other steel companies

Q4. Can you provide sample ?
A4: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
