Red GL / PPGL Color Coated Coating Galvalume Steel Coil / Sheet / Strip

Red GL / PPGL Color Coated Coating Galvalume Steel Coil / Sheet / Strip

Product Details:

Place of Origin: China
Brand Name: HUIYI
Certification: SGS, BV, ISO9001
Model Number: SGLCC/CGLCC

Payment & Shipping Terms:

Minimum Order Quantity: 25 tons each thickness
Price: negotiated
Packaging Details: Standard exporting package.wrapped with waterproof paper.Then high density PE film.Then after fully covered with iron sheet
Delivery Time: 20-35days
Payment Terms: L/C, T/T, D/P
Supply Ability: 50000 tons per year
Get Best Price Contact Now

Detail Information

Product Name: Prepainted Galvalume Steel Coil Type: Coil/Sheet/Strip
Material: Galvalume Steel Coil Grade: SGCC/CGCC/SPCC/DX51D/DX52D
Thickness: 0.25mm-1.2mm Width: 600-1500mm
Color: RAL Color Or Other Patterns Application: Construction Roof
Highlight:

Red Galvalume Steel Coil

,

PPGL Color Coated Galvalume Steel Coil

,

PPGL Galvalume Steel Strip

Product Description

Red GL / PPGL Color Coated Coating Galvalume Steel Coil / Sheet / Strip

Introduction

Pre-Painted Galvanized Steel Coil: An Ideal Material for Construction and Automotive Applications
The pre-painted galvalumed steel coils are a product obtained by subjecting a hot-dipped galvalumed steel sheet to a surface chemical treatment, applying organic coating on the surface, followed by baking and curing.

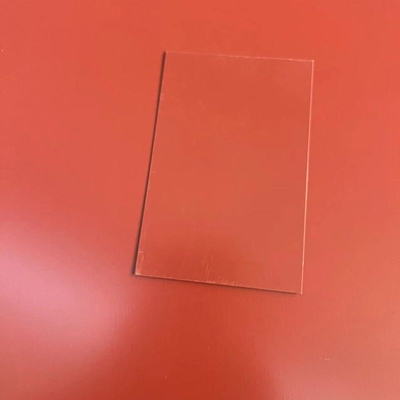

Red GL / PPGL Color Coated Coating Galvalume Steel Coil / Sheet / Strip 0



Specification

Product Name Prepainted Steel Coil,Color Coated Steel Coil,Printed Pattern Steel Coil,PPGI,PPGL
Standard EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Type Coil/Sheet/Plate/Strip
Material SGCC/SGCH/G350/G450/G550/DX51D/DX52D/DX53D
Surface Color RAL/Printed/Matte/Wrinkled/Embossed/Nano
Painting Coating Top: 10 to 35 um (5 um + 12-20 um) Back: 7 +/- 2 um
Coating Types PE/PVDF/HDP/SMP
Coil Weight 3 Tons -8 Tons
Coil ID 508mm/610mm

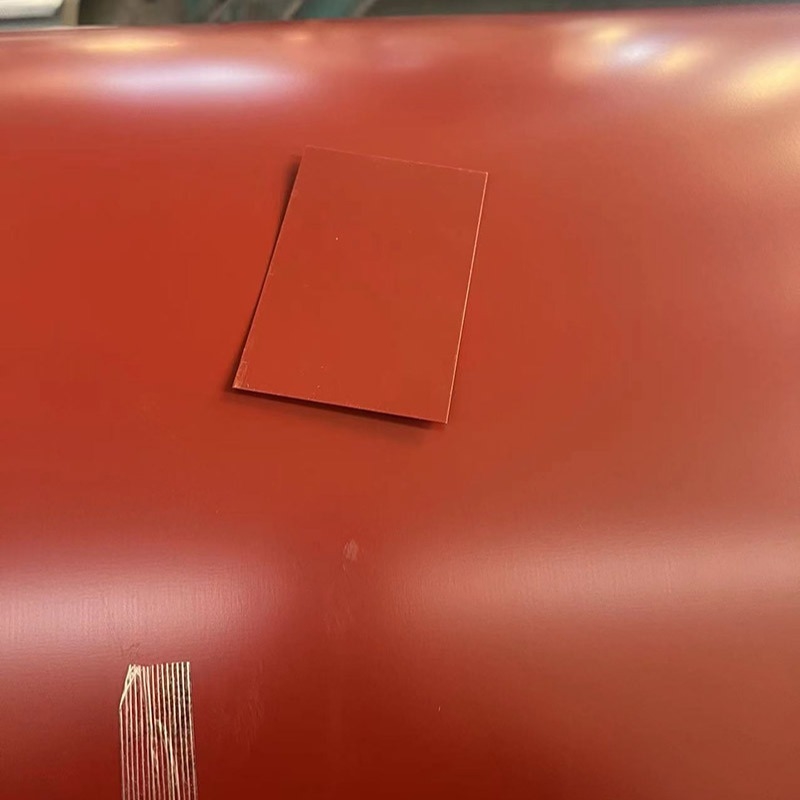

Red GL / PPGL Color Coated Coating Galvalume Steel Coil / Sheet / Strip 1

Substrate Classification

There are three main types of color-coated coil substrate: hot galvanized substrate, hot aluminized zinc substrate and electroplated zinc substrate. Hot-dip galvanized substrate is prepared by dipping hot-dip galvanized sheet into hot-dip galvanized solution and forming zinc coating on its surface. Hot plated aluminum zinc substrate is made by hot dipping a mixture of zinc and aluminum (such as 55% aluminum and 45% zinc) in hot plated aluminum zinc solution on the hot galvanized substrate, and then baking and curing the hot galvanized substrate after hot dipping.

Coating Structure

Color coated coil coating structure is mainly divided into two types: 2/1 and 2/1M. 2/1 coating structure refers to the upper and lower surfaces are coated twice and baked twice. 2/1M coating structure refers to the upper and lower surfaces are coated twice and baked once. The choice of coating structure depends on the environment and application.

PPGL Advantages & Applications

1.Corrosion Resistance : PPGL has excellent corrosion resistance due to the addition of aluminum and zinc to the coating.


2.Aesthetic Appeal : It comes in a wide range of colors and finishes, making it suitable for various architectural and decorative applications.


3.Durability : The pre-painted coating enhances the durability of the galvalume substrate, ensuring a longer lifespan.


4.Easy Maintenance : PPGL requires minimal maintenance and is easy to clean, maintaining its appearance over time.



PPGL is commonly used in the construction industry for roofing, wall cladding, and other architectural applications. It is also used in the manufacturing of appliances, automotive parts, and various industrial products due to its corrosion resistance and aesthetic appeal.

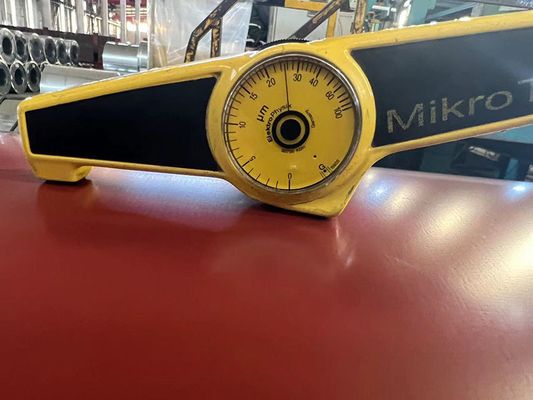

Red GL / PPGL Color Coated Coating Galvalume Steel Coil / Sheet / Strip 2

Standard Seaworthy Export Packing

3 layers of packing, inside is kraft paper, water plastic film is in the middle and outside GI steel sheet to be covered by steel strips with lock.
1.Export seaworthy packing: a water proof paper + an inhibitor film + a steel sheet cover with steel edge protectors and sufficient steel straps
2.Packaging detail:as customer's requirements

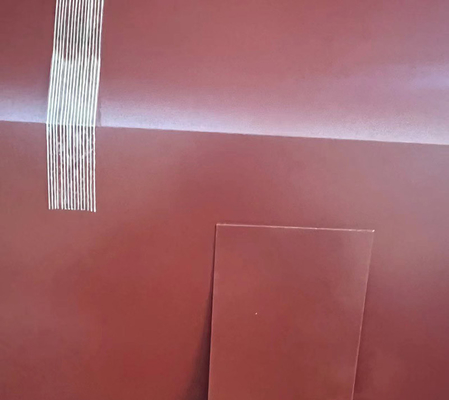

Red GL / PPGL Color Coated Coating Galvalume Steel Coil / Sheet / Strip 3



FAQ

Q1:What are your company's main products ?
A1: Our main products are
GI & GL & PPGI & PPGL steel coil / sheet / plate / strip coil, currugated galvanized steel sheet, angle bar, c channel

Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available.

Q3. What are the advantages of your company ?
A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other steel companies

Q4. Can you provide sample ?
A4: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
