0.12mm Prepainted PPGL Steel Coil Color Coated Steel Strip Roll
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HUIYI |
| Certification: | SGS,BV, ISO |
| Model Number: | CGCC,CGCH,CGLCC,CGLCH,G550,DX51D,G450,DX52D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 tons for each thickness |
|---|---|
| Price: | negotiated |
| Packaging Details: | Standard exporting package. waterproof paper， high density PE film，iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical |
| Delivery Time: | 20-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 3000 tons per month |
|
Detail Information |
|||
| Product Name: | PPGL Steel Coil | Surface Treatment: | Printing，galvalume |
|---|---|---|---|
| Thickness: | 0.12-2.0mm | Width: | Under 1500mm |
| Grade: | CGCC,CGLCC,CGCH,CGLCH,DX51D,DX52D.. | AL-ZN: | AZ30-AZ150 |
| Application: | Building Construction, Boiler Plate | Length: | Customized |
| Coil Weight: | As Request | Shape: | Coil, Flat, Corrugated |
| Highlight: | 0.12mm Pre Painted Galvalume Steel Coil,PPGL Steel Strip Roll,Color Coated PPGL Coil |
||
Product Description
Printing prepainted Gavalume / PPGL Steel coil with AZ30 - AZ150
PPGL steel coil introduction :
Generally, it refers to a product formed by coating (roll coating) a substrate after surface treatment or bonding an organic film and baking, which can be further processed into a final product. It’s called "pre-coated steel plate" and "plastic steel plate" in foreign countries. PPGL STEEL COIL has beautiful colors or patterns when it leaves the factory, so it is also called "color coated steel plate". Color coated steel plate is commonly called in our country and is simply called "color coated plate" or "color plate".Color coated steel plate usually the galvanized steel,GL after surface treatment on their surfaces coated with a certain thickness of the adhesive coating or layer of organic film,after curing,become a color plate,with excellent corrosion resistance,molding,decoration in the building,home appliances,light industry,transportation and other industries widely used as an ideal composite material.
Introduction of PPGL steel coil :
The R & D and production of the coating system to fill the domestic PVDF coating system of thick blanks, is widely used in high-end decontamination sandwich panels, corrugated board, curtain wall, ceiling and veneer direct use of high-end indoor and outdoor decoration fields.
Our self-cleaning technology is to give the film a strong anti-pollution performance and hydrophilic properties, which can be used to wash the rain and easy to place pollutants, so that the film to clean, to protect the film from some pollution Destruction of objects.
Application range of PPGL steel coil :
Production of roofing,wall panel,garage,barrier,shutter,frame of window,air-condition system covering,solar heating,electrical unit,refrigerated wagon and so on
Specifications of PPGL steel coil :
| Production line | Product thickness mm | Product width mm | Steel coil weight (t) | Steel coil inner diameter mm | Production capacity |
| (10,000t/year) | |||||
| Printing PPGL | 0.12-1.0mm | 800-1,250 | ≤28 | 508 or 610 | 5 |

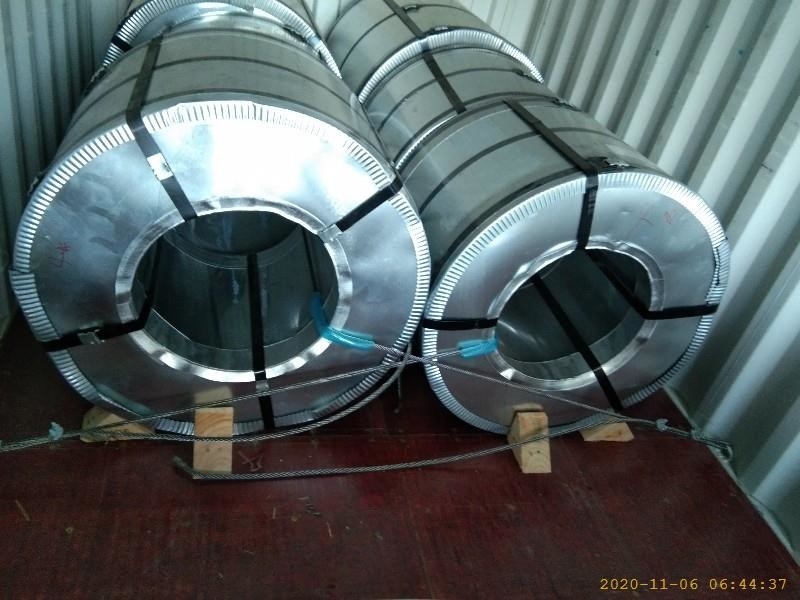

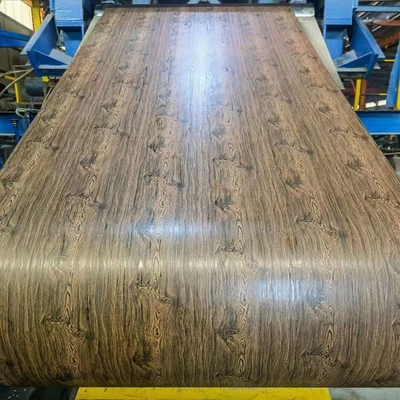

Here comes some cases of PPGL steel coil as below:
