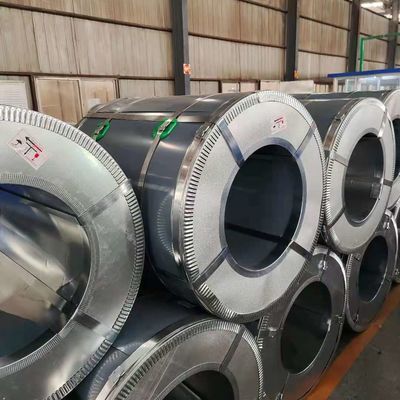

AZ275 Heat Reflective Prepainted Galvalume  PPGL Steel Coil

AZ275 Heat Reflective Prepainted Galvalume PPGL Steel Coil

Product Details:

Place of Origin: CHINA
Brand Name: PPGL--HUIYI
Certification: SGS,BV,ISO
Model Number: CGCC,CGCH,CGLCC,CGLCH

Payment & Shipping Terms:

Minimum Order Quantity: 25TONS
Price: based on actual requirements
Packaging Details: Standard exporting package.
Delivery Time: 20-35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: AZ30-AZ275 Weathering Heat Reflective PPGL Steel Coil Surface Treatment: Coated , Galvalume
Width: 600mm-1250mm, 750-1250m..... Thickness: 0.12-2.0mm
Grade: SGCC, DX51D, DX51D+AZ, DX51D, CGLCCD Standard: GB, ASTM, JIS, AISI, BS
Zinc Coating: 30-275g/m2, 40g/m2 - 275g/m2, 40-275g, AZ150 Coil ID: 508mm/610mm
Highlight:

Heat Reflective PPGL sheet Coil

,

AZ275 PPGL sheet Coil

,

AZ275 Prepainted galvalume steel coil

Product Description

AZ30-AZ275 Weathering Heat Reflective PPGL Steel Coil



PPGL steel coil description:


PPGL steel coil has excellent scratch resistance, the use of probe scratch tester test load 1500 grams, the film is not Li broken;
Resistance to heat and humidity, after non-condensing hot and humid test chamber placed 1000 hours, the PPGL steel coil  without bubbles, cracks, paint peeling, no color, gloss and hardness changes;
Resistance to boiling water, the product in 100 ℃ boiling water bath for 24 hours, no loss of light, discoloration, cracking, blistering, shedding and so on;
Acid resistance, the product soaked in 5% hydrochloric acid 24 hours, no significant change in appearance;
Alkali resistance, PPGL steel coil in 5% sodium hydroxide soak for 24 hours, no significant change in appearance;
UV lamp accelerated aging test, PPGL steel coil in the QUVA-340 UV lamp chamber test, fluorocarbon system 4000 hours, 2,000 hours of polyester modified polyester system, 1500 hours after the polyester system, the product powder level ≤ 1, no Rust, blistering, cracking and other defects.

PPGL steel coil specifications:



Name
Pre painted galvalume steel coil Prime galvalume steel hot-rolled coil
Width
600-1250mm or as required
Thickness
0.12mm-2.0mm or as required
Length
1000mm-6000mm or as required
Zinc Coating
Z30-275g/m²
Certificate
SGS,ISO
Inspection
Fully accept all the third party to test before shipment.
Packing
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required.
Payment Terms
L/C, T/T





Here comes some  roofing color plate  specification common used:



AZ275 Heat Reflective Prepainted Galvalume  PPGL Steel Coil 0      AZ275 Heat Reflective Prepainted Galvalume  PPGL Steel Coil 1



PPGL steel coil application:



Production of roofing,wall panel,garage,barrier,shutter,frame of window,air-condition system covering,solar heating,electrical unit,refrigerated wagon and so on



Company profile:



SHANGHAI HUIYI INTERNATIONAL CO.,LTD has got huge support and help from our customers and suppliers,we have been growing up with fast and healthy pace.We will do our best to give our customers better price ,better quality and better servic.
