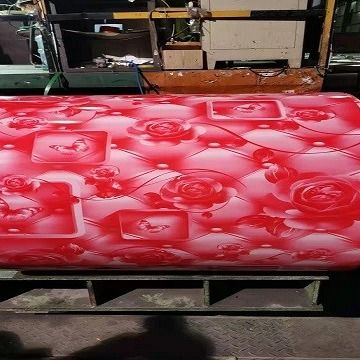

1250mm Weathering Heat Reflective PPGL Steel Coil CGLCH

1250mm Weathering Heat Reflective PPGL Steel Coil CGLCH

Product Details:

Place of Origin: CHINA
Brand Name: PPGL--HUIYI
Certification: SGS,BV,ISO
Model Number: CGCC,CGCH,CGLCC,CGLCH

Payment & Shipping Terms:

Minimum Order Quantity: 25TONS
Price: based on actual requirements
Packaging Details: Standard exporting package.
Delivery Time: 20-35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Weathering Heat Reflective Color Plate Surface Treatment: Coated , Galvalume
Width: 600mm-1250mm, 750-1250m..... Thickness: 0.12-2.0mm
Grade: SGCC, DX51D, DX51D+AZ, DX51D, CGLCCD Standard: GB, ASTM, JIS, AISI, BS
Zinc Coating: 30-275g/m2, 40g/m2 - 275g/m2, 40-275g, AZ150 Coil ID: 508mm/610mm
Highlight:

1250mm PPGL Steel Coil

,

0.12mm colour coated steel roofing sheets

,

CGLCH PPGL Steel Coil

Product Description

914mm-1250mm PPGL steel coi  / Weathering heat reflective color plate



PPGL Steel coil introduction :


PPGL steel coil  usually the galvanized steel,GL after surface treatment on their surfaces coated with a certain thickness of the adhesive coating or layer of organic film,after curing,become a color plate,with excellent corrosion resistance,molding,decoration in the building,home appliances,light industry,transportation and other industries widely used as an ideal composite material.
The production of weather-resistant heat-reflective color coated plate to solve the common color coated plate to absorb high heat and reduce the service life of the problem is eco-friendly products and energy saving products pioneer, while making the roof is called "cold roof."
Product performance indicators in:
The initial solar reflectance (TSR)> 0.25 for all colors, and the sunlight reflectivity (TSR)> 0.15 for three years;
Most of the products (except for a few dark products) of the sun reflection coefficient SRI ≥ 29, part of the light-colored products SRI ≥ 78;
The product has excellent scratch resistance, the use of probe scratch tester test load 1500 grams, the film is not Li broken;
Resistance to heat and humidity, after non-condensing hot and humid test chamber placed 1000 hours, the product without bubbles, cracks, paint peeling, no color, gloss and hardness changes;
Resistance to boiling water, the product in 100 ℃ boiling water bath for 24 hours, no loss of light, discoloration, cracking, blistering, shedding and so on;
Acid resistance, the product soaked in 5% hydrochloric acid 24 hours, no significant change in appearance;
Alkali resistance, the product in 5% sodium hydroxide soak for 24 hours, no significant change in appearance;
UV lamp accelerated aging test, the product in the QUVA-340 UV lamp chamber test, fluorocarbon system 4000 hours, 2,000 hours of polyester modified polyester system, 1500 hours after the polyester system, the product powder level ≤ 1, no Rust, blistering, cracking and other defects.

Here  comes some sizes that we have supplied as below:

PPGL steel coil specifications:

 Thickness:  0.3mm-1.0mm(BMT)
 Width:  914mm-1250mm
 Paint:  Standard polyester(PE),PVDF
 Color:  RAL Scale*
 Coil diameter:  508mm or 610mm
 Base material:  Hot dip galvalume steel



Here comes some  roofing color plate of PPGL steel coil  specification common used:



1250mm Weathering Heat Reflective PPGL Steel Coil CGLCH 0      1250mm Weathering Heat Reflective PPGL Steel Coil CGLCH 1



Application of PPGL steel coil :



Production of roofing,wall panel,garage,barrier,shutter,frame of window,air-condition system covering,solar heating,electrical unit,refrigerated wagon and so on
