G550 Color Coated Aluminum Coil , Prepainted galvalume steel coil

G550 Color Coated Aluminum Coil , Prepainted galvalume steel coil

Product Details:

Place of Origin: CHINA
Brand Name: HUIYI
Certification: SGS,BV,ISO9001
Model Number: CGCC,CGCH,G550,G450,G400,DX51D

Payment & Shipping Terms:

Minimum Order Quantity: 25
Price: Based on actual requirements
Packaging Details: waterproof paper, high density PE film,iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical
Delivery Time: 20-35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Prepainted Galvanised Steel Coil / Sheet For Roofing Metal / Rainshed Grade: CGCC,CGLCC,G550,G450,G400,DX51D
Color: All Ral Colors,Green,Yellow,Orange,Black,Red,Blue Surface Treatment: Coated,Galvalnised
Thickness: 0.12-1.5mm Width: 500-1250mm
Coil Weight: 3-5mt, Max 5mt, Based On Requirements Type: Corrugated Sheet,flat,coil
Highlight:

0.12mm color coated aluminum coil

,

CGCC pre painted aluminum sheet

,

HUIYI G550 color coated aluminum coil

Product Description

Prepainted Galvalume Steel Coil / Sheet for roofing metal / Rainshed



Profile of Prepainted galvalume steel coil :


Generally, it refers to a product formed by coating (roll coating) a substrate after surface treatment or bonding an organic film and baking, which can be further processed into a final product. It’s called "pre-coated steel plate" and "plastic steel plate" in foreign countries. This product has beautiful colors or patterns when it leaves the factory, so it is also called "color coated steel plate". Color coated steel plate is commonly called in our country and is simply called "color coated plate" or "color plate".A Prepainted Galvanized Steel Coil metal has the highest value among all cold-rolled steel products. Produced by printing or baking paints onto the surface of cold-rolled steel or GI or ALCOT sheets, pre-coated metal features a wide range of colors and patterns which are commonly used to make the exterior of buildings and consumer electronics products look more polished and sophisticated. Depending on the specific utility of each product, a vast variety of features are available including pollution resistance and anti-bacterial quality.



Prepainted galvalume steel coil / Color Coated Steel :



Pre - Painted Steel Coil / Color Coated Steel Coil , Produced By Printing Or Baking Paints Onto The Surface Of Cold - Rolled Steel Or GI Or GL Sheets .

That Features A Wide Range Of Colors And Patterns Which Are Commonly Used To Make The Exterior Of Buildings And Consumer Electronics Products Look More Polished And Sophisticated .

They Are Made On High - Speed Continuous Coating Lines Through A Number Of Processes Such As Chemical Pre - treatment , Primary Coating And Finish Coating , Thus They Have Better Coating Quality Than Single Piece Coating .



Specification of Prepainted galvalume steel coil :



■ Standard : JIS G3312-1998 , ASTM A755 , GB / T12754 - 2006

■ Grade : SPCC , SPCD , SPCE , DX51 / 52 / 53 / 54D + Z , Q195 / 215 / 235 And Etc

■ Base Metal : Cold Rolled Steel / Galvanized Steel / Galvalume Steel

■ Material Thickness : Normally 0.15 -1.5 mm

■ Width : 30 - 1500 mm ( Mainly in 914 mm ,1000 mm , 1219 mm and 1250 mm )

■ Coating : PE / PVDF / SMP

■ Coating Thickness : Min. Single Side - 50 g / sqm Max. Single Side - 275 g / sqm

■ Top Painting : 13 - 20 micrometer

■ Back Painting : 7 - 10 micrometer

■ Surface Finished Color : According To RAL Standard

■ Packing Condition : Seaworthy



Types of Prepainted galvalume steel coil :



Available Painting
Category of Painting Item Code
Polyester PE
High-durability Polyester HDP
Silicon Modified Polyesters SMP
Polyvinylidene Fluoride PVDF
Easy-cleaning EC
Painting Thickness Top side 10-20±5microns
Bottom side 5-7microns
Back side 5-7microns



RAL Color And Patterns For Choose :



Characteristics of Prepainted galvalume steel coil :



Color Coated Steel Feature Excellent Decorativeness , Bendability , Corrosion Resistance, Coating Adhesion And Color Fastness .

They Are Ideal Substitutes For Wood Panels In The Construction Industry Because Of Their Good Economic Features Such As Convenient Installation , Conservation Of Energy And Resistance To Contamination .

Color Steel Sheets With Surface Texturing On The Surface Has Extremely Superb Anti - Scratch Qualities ,Can Be Produced In Various Colors , And Has Credible Quality And Can Be Mass - Produced Economically.

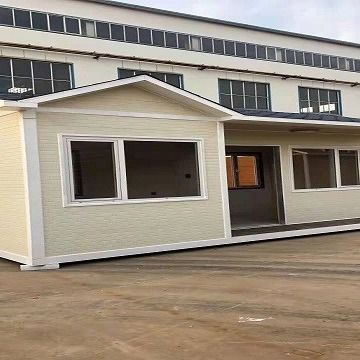

Some building cases of Prepainted galvalume steel coil :



G550 Color Coated Aluminum Coil , Prepainted galvalume steel coil 0





FAQ:



Q:Are you a trading company or a manufacturer?



A:We are one of the biggest and professional manufacturer in China. Our products are hot-sale due to our superior quality, competitive price and the best after-sales service.



Q:How about the MOQ?



A:Generally, the MOQ can be placed depending on different products.



Q:How about the sample if I need?



A:The sample is free of charge



Q:Do you have English Mill Test Certificates?



A:Yes, we can provide MTC attached to your documents.



Q:What is shipment terms?



A: 1. Container ship 2. Bulk ship 3. Train



Q:How about the delivery time?


A:About 10-25 days after receiving the deposit. Certainly, the detail will be confirmed by the quantity and the different products.
