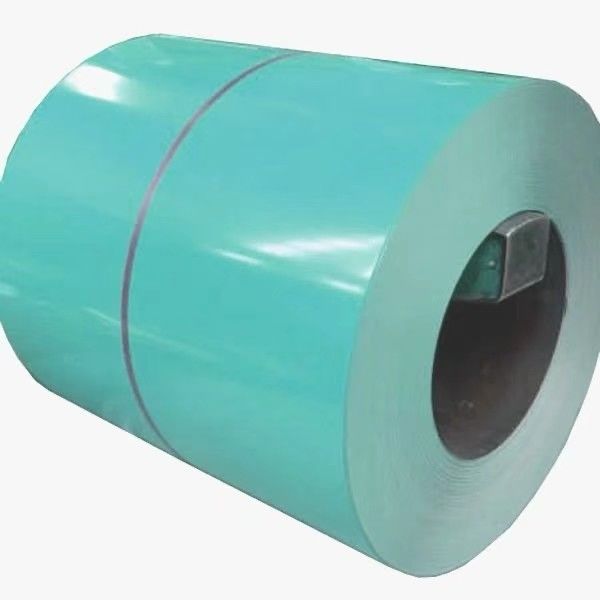

Ral Color Prepainted Galvalume Steel Coil 10-25um For Home Appliance
Product Details:
| Place of Origin: | China |
| Brand Name: | HuiYi-Prepainted Galvalume Steel Coil |
| Certification: | ISO9001, GB, ASTM |
| Model Number: | G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 22MT |
|---|---|
| Packaging Details: | Standard exporting package , wrapped with waterproof paper. Then after fully wrapped with high density PE film. Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical. |
| Payment Terms: | T/T,L/C,D/P |
| Supply Ability: | 5000MT/Month |
|
Detail Information |
|||
| Coil Outer Diameter: | 1000-1500mm | Surface Finish: | Smooth/ Matt/ Wrinkle/ Embossed |
|---|---|---|---|
| Color: | According To Ral Color | Tensile Strength: | 420-600Mpa |
| Material: | Galvalume Steel Coil | Coating Type: | PE, SMP, HDP, PVDF |
| Coating Thickness: | 10-25um | Yield Strength: | 380-530Mpa |
| Highlight: | Ral Prepainted Galvalume Steel Coil,25um Prepainted Galvalume Steel Coil,Home Appliance Prepainted Galvalume Steel Coil |
||
Product Description
Product Description:
Pre-painted Galvalume Steel Coil is a high-performance steel sheet featuring an aluminum-zinc alloy coating, designed for diverse applications such as home appliances, construction, and automotive industries. Available with PE, SMP, HDP, and PVDF coatings (10-25μm thickness), it offers exceptional durability and aesthetic flexibility, with customizable colors based on the RAL color system. Standard inner diameters include 508mm and 610mm.
Technical Parameters:
| Parameter | Value |
| Coil Inner Diameter | 508mm/610mm |
| Elongation | 16-30% |
| Material | Galvalume Steel Coil |
| Coil Outer Diameter | 1000-1500mm |
| Coil Width | 1000mm-1500mm |
| Coil Thickness | 0.14-1.2mm |
| Coating Type | PE, SMP, HDP, PVDF |
| Surface Finish | Smooth/ Matt/ Wrinkle/ Embossed |
| Coil Weight | 3-8MT |
| Coating Thickness | 10-25um |
Features:
- Product Name: Pre-painted Galvalume Steel Coil
- Color: According To Ral Color
- Coil Weight: 3-8MT
- Tensile Strength: 420-600Mpa
- Coating Thickness: 10-25um
Coil Thickness: 0.14-1.2mm
Key Advantages:
1.Superior Corrosion & Heat Resistance
The aluminum-zinc alloy substrate forms a robust barrier that resists oxidation and corrosion, even in coastal or high-temperature industrial environments. This protection ensures long-term structural integrity and excellent thermal performance under extreme conditions.
2.Excellent Weather Resistance
Designed to withstand UV radiation, humidity, acid rain, and temperature fluctuations, our pre-painted Galvalume steel maintains its appearance and performance without peeling, fading, or surface degradation, making it ideal for outdoor use over decades.
3.Strong Adhesion & Easy Maintenance
Featuring advanced coil coating technology, the surface paint bonds tightly to the steel base, ensuring exceptional finish retention. The smooth surface also resists dust and contaminants, allowing for easy cleaning and low maintenance throughout its lifecycle.
4.Premium Durability
Engineered to meet demanding mechanical and environmental standards, this material delivers superior strength and impact resistance. The aesthetic coating provides not only a refined finish but also additional layer protection, ensuring long-lasting performance in both structural and decorative applications.
Packing and Shipping:
Prepainted Galvalume Steel Coil is typically shipped in coils or flat sheets and packaged in waterproof plastic wrappings or boxes, depending on the size and weight of the order. All products are securely packaged to ensure that they remain in excellent condition during transit.
FAQ:
1.Q: What is Prepainted Galvalume Steel Coil?
A: Prepainted Galvalume Steel Coil is a kind of coated steel sheet with high corrosion resistance, excellent processing properties and wide applications.
2.Q: What is the Brand Name?
A: The Brand Name is HuiYi-Prepainted Galvalume Steel Coil.
3.Q: Where is it from?
A: It is from China.
4.Q: What kind of Certification does it have?
A: It has ISO9001, GB, ASTM Certification.
5.Q: What is the Minimum Order Quantity?
A: The Minimum Order Quantity is 22MT.
