Ral Color Prepainted Galvalume Steel Coil 10-25um For Home Appliance

Ral Color Prepainted Galvalume Steel Coil 10-25um For Home Appliance

Product Details:

Place of Origin: China
Brand Name: HuiYi-Prepainted Galvalume Steel Coil
Certification: ISO9001, GB, ASTM
Model Number: G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH

Payment & Shipping Terms:

Minimum Order Quantity: 22MT
Packaging Details: Standard exporting package , wrapped with waterproof paper. Then after fully wrapped with high density PE film. Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical.
Payment Terms: T/T, L/C, D/P
Supply Ability: 5000MT/Month
Get Best Price Contact Now

Detail Information

Coil Outer Diameter: 1000-1500mm Surface Finish: Smooth/ Matt/ Wrinkle/ Embossed
Color: According To Ral Color Tensile Strength: 420-600Mpa
Material: Galvalume Steel Coil Coating Type: PE, SMP, HDP, PVDF
Coating Thickness: 10-25um Yield Strength: 380-530Mpa
Highlight:

25um Prepainted Galvalume Steel Coil

,

Ral Color Prepainted Galvalume Steel Coil

,

Smooth Prepainted Galvalume Steel Coil

Product Description

Product Description:



Pre-painted Galvalume Steel Coil is a high-performance steel sheet featuring an aluminum-zinc alloy coating, designed for diverse applications such as home appliances, construction, and automotive industries. Available with PE, SMP, HDP, and PVDF coatings (10-25μm thickness), it offers exceptional durability and aesthetic flexibility, with customizable colors based on the RAL color system. Standard inner diameters include 508mm and 610mm.



Key Advantages:


- Superior Corrosion & Heat Resistance – The aluminum-zinc alloy base ensures long-term protection against rust and high temperatures.


- Excellent Weather Resistance – Withstands harsh outdoor conditions without fading or degradation.


- Strong Adhesion & Easy Maintenance – The pre-painted surface delivers flawless finish retention and requires minimal cleaning.


- Premium Durability – Engineered for longevity, combining unmatched strength with a visually appealing, lasting finish.



Manufactured to the highest industry standards, our Pre-painted Galvalume Steel Coil is the optimal choice for projects demanding reliability, versatility, and cost efficiency.

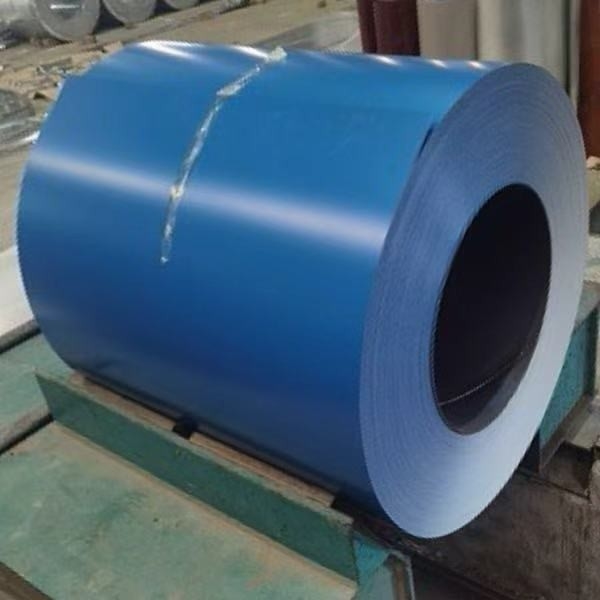

Ral Color Prepainted Galvalume Steel Coil 10-25um For Home Appliance 0



Features:

  • Product Name: Pre-painted Galvalume Steel Coil
  • Color: According To Ral Color
  • Coil Weight: 3-8MT
  • Tensile Strength: 420-600Mpa
  • Coating Thickness: 10-25um
  • Coil Thickness: 0.14-1.2mm


Technical Parameters:

Parameter Value
Coil Inner Diameter 508mm/610mm
Elongation 16-30%
Material Galvalume Steel Coil
Coil Outer Diameter 1000-1500mm
Coil Width 1000mm-1500mm
Coil Thickness 0.14-1.2mm
Coating Type PE, SMP, HDP, PVDF
Surface Finish Smooth/ Matt/ Wrinkle/ Embossed
Coil Weight 3-8MT
Coating Thickness 10-25um



Packing and Shipping:

Prepainted Galvalume Steel Coil is typically shipped in coils or flat sheets and packaged in waterproof plastic wrappings or boxes, depending on the size and weight of the order. All products are securely packaged to ensure that they remain in excellent condition during transit.

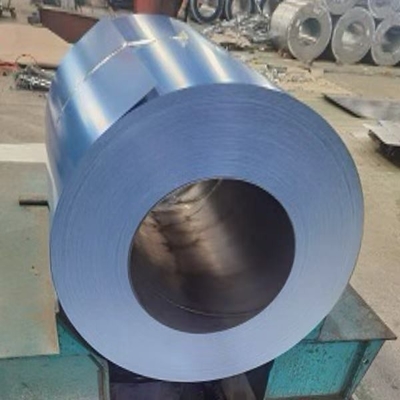

Ral Color Prepainted Galvalume Steel Coil 10-25um For Home Appliance 1

FAQ:

1.Q: What is Prepainted Galvalume Steel Coil?
A: Prepainted Galvalume Steel Coil is a kind of coated steel sheet with high corrosion resistance, excellent processing properties and wide applications.


2.Q: What is the Brand Name?
A: The Brand Name is HuiYi-Prepainted Galvalume Steel Coil.


3.Q: Where is it from?
A: It is from China.


4.Q: What kind of Certification does it have?
A: It has ISO9001, GB, ASTM Certification.


5.Q: What is the Minimum Order Quantity?
A: The Minimum Order Quantity is 22MT.
