Cold Roll Prepainted Galvalume Steel Coil ASTM Dx51D For Home Appliance

Cold Roll Prepainted Galvalume Steel Coil ASTM Dx51D For Home Appliance

Product Details:

Place of Origin: China
Brand Name: HuiYi-Prepainted Galvalume Steel Coil
Certification: ISO9001, GB, ASTM
Model Number: G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH

Payment & Shipping Terms:

Minimum Order Quantity: 22MT
Packaging Details: Standard exporting package , wrapped with waterproof paper. Then after fully wrapped with high density PE film. Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical.
Payment Terms: T/T, L/C, D/P
Supply Ability: 5000MT/Month
Get Best Price Contact Now

Detail Information

Coil Outer Diameter: 1000-1500mm Surface Finish: Smooth/ Matt/ Wrinkle
Color: According To Ral Color Tensile Strength: 420-600Mpa
Material: Galvalume Steel Coil Coating Type: PE, SMP, HDP, PVDF
Coating Thickness: 10-25um Yield Strength: 380-530Mpa
Highlight:

Cold Roll Prepainted Galvalume Steel Coil

,

600Mpa Prepainted Galvalume Steel Coil

,

ASTM Dx51D Prepainted Galvalume Steel Coil

Product Description

Product Description:

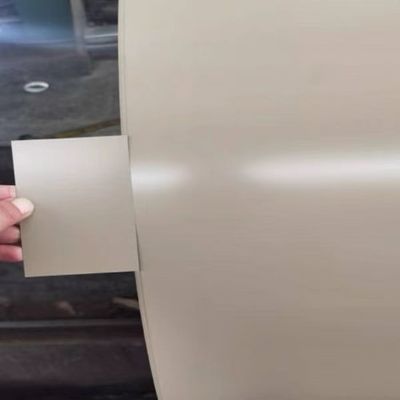

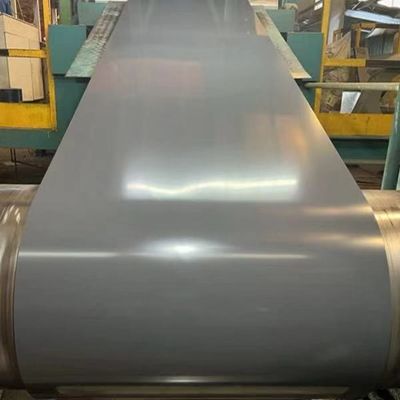

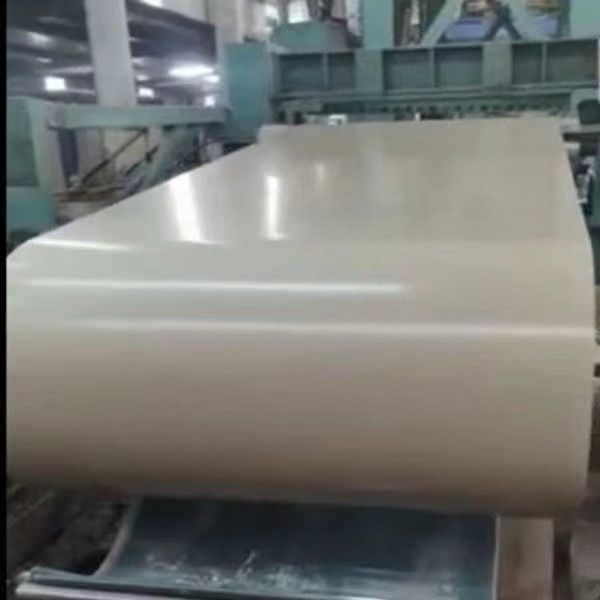

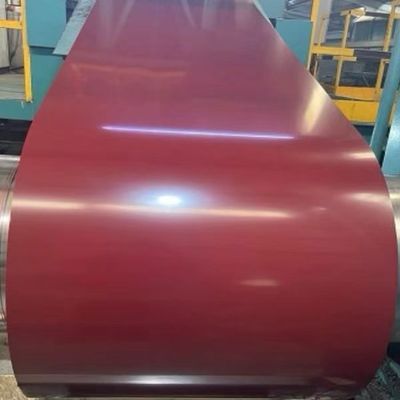

Pre-painted Galvalume Steel Coil is a kind of steel sheet with a coating composed of an aluminum-zinc alloy. It is used for various applications, including home appliances, construction, and automobiles. It has a coating type of PE, SMP, HDP, and PVDF with a coating thickness of 10-25um. The coil inner diameter is 508mm/610mm, and the color can be customized according to Ral color.



The Pre-painted Galvalume Steel Coil has excellent corrosion resistance, heat resistance, and excellent adhesion performance, which makes it an ideal material for various applications. It also has excellent weather resistance and can be used for long-term outdoor use without fading or rusting. Moreover, it is easy to clean, with no need for complicated maintenance.



Technical Parameters:

Parameter Value
Coil Inner Diameter 508mm/610mm
Elongation 16-30%
Material Galvalume Steel Coil
Coil Outer Diameter 1000-1500mm
Coil Width 1000mm-1500mm
Coil Thickness 0.14-1.2mm
Coating Type PE, SMP, HDP, PVDF
Surface Finish Smooth/ Matt/ Wrinkle/ Embossed
Coil Weight 3-8MT
Coating Thickness 10-25um

Features:

  • Product Name: Pre-painted Galvalume Steel Coil
  • Color: According To Ral Color
  • Coil Weight: 3-8MT
  • Tensile Strength: 420-600Mpa
  • Coating Thickness: 10-25um
  • Coil Thickness: 0.14-1.2mm

Applications:



Construction: Ideal for roofing, wall cladding, and structural panels​.

Home Appliances: Suitable for outer panels and enclosures of refrigerators, washing machines.

Automobile Industry: Used in vehicle body components and inner structural parts.





Cold Roll Prepainted Galvalume Steel Coil ASTM Dx51D For Home Appliance 0

Packing and Shipping:

Prepainted Galvalume Steel Coil is typically shipped in coils or flat sheets and packaged in waterproof plastic wrappings or boxes, depending on the size and weight of the order. All products are securely packaged to ensure that they remain in excellent condition during transit.



Cold Roll Prepainted Galvalume Steel Coil ASTM Dx51D For Home Appliance 1

FAQ:

1.Q: What is Prepainted Galvalume Steel Coil?
A: Prepainted Galvalume Steel Coil is a kind of coated steel sheet with high corrosion resistance, excellent processing properties and wide applications.


2.Q: What is the Brand Name?
A: The Brand Name is HuiYi-Prepainted Galvalume Steel Coil.


3.Q: Where is it from?
A: It is from China.


4.Q: What kind of Certification does it have?
A: It has ISO9001, GB, ASTM Certification.


5.Q: What is the Minimum Order Quantity?
A: The Minimum Order Quantity is 22MT.
