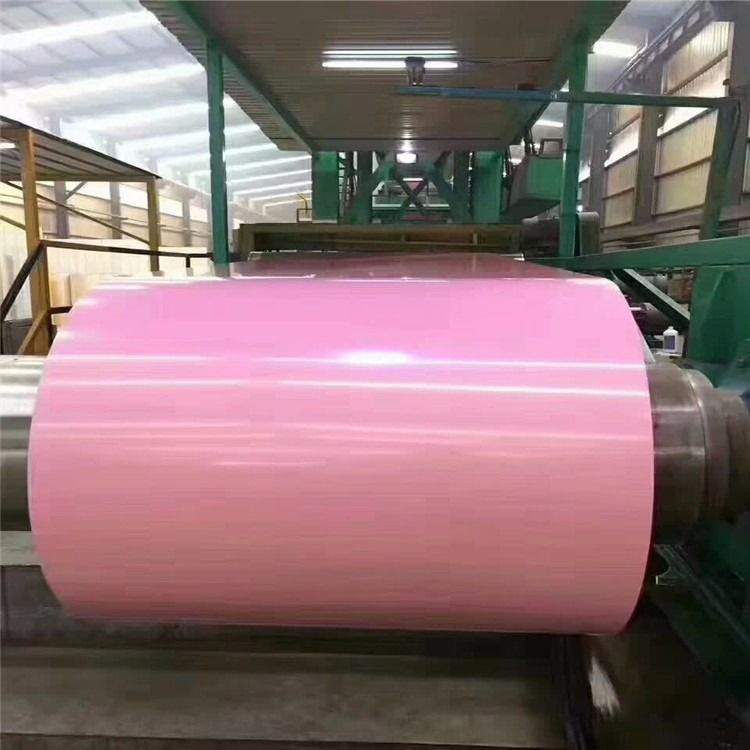

Al-Mg-Mn Prepainted galvalume steel coil Aluminum Sheet Metal CGLCC CGLCH
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Matte PPGL---HUIYI |
| Certification: | SGS,BV,ISO-9001 |
| Model Number: | SGCC,CGCC,SGLCC,CGLCC,GCCH,SGCH,G550,G450,G400,G300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 TONS |
|---|---|
| Price: | Deponds on customers’requirements |
| Packaging Details: | Standard exporting package. |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 tons per month |
|
Detail Information |
|||
| Type: | Steel Coil,steel Coil/steel Sheet | Grade: | SGCC,CGCC,DX51D,CGLCC |
|---|---|---|---|
| Zinc Coating: | 30-275g/m2,AZ150 | Surface Treatment: | Coated,Galvanized,Printing / Matte |
| Coil Weight: | Standard Is 5-8mt, Always Based On Customers’ Requirements | Thickness: | 0.12mm~3.0mm |
| Width: | 914mm,1000mm,1200mm,1219mm,1250mm,1500mm | Product Name: | Al-Mg-Mn Color Plate |
| Highlight: | AZ150 painted aluminum sheet metal,CGLCC ppgl steel coil,CGLCH painted aluminum sheet metal |
||
Product Description
Al-Mg-Mn color plate / Al-Mg-Mn PPGL / Al-Mg-Mn Prepainted Galvalume Steel Coil,CGLCC,CGLCH
Introduction of prepainted galvalume steel coil :
It is made by taking hot galvanized sheet and zinc-iron alloy hot galvanized sheet as the substrate through surface pretreatment, coating one or more layers of liquid coating by roll coating, baking and cooling. The used coatings including polyester, silicon modified polyester, high-durability polyester, polyvinylidene fluoride, epoxy and high corrosion-resisting coating are widely used for building, transport, home appliances, solar energy, furniture, etc. It is mainly used as the side door plate of refrigerators, and shell of DVDs, air conditionings, freezers, and washing machines.
Number and Mechanical Property of prepainted galvalume steel coil :
| No. | Tensile test | ||||||
| Yield strength Rel (MPa) |
Tensile strength Rm (MPa) |
Percentage elongation after fracture A% | |||||
| 1.8～＜2.0 | 2.0～＜2.5 | 2.5～＜3.2 | 3.2～＜4.0 | ≥4.0 | |||
| SPHC | ≥270 | ≥29 | ≥30 | ≥31 | ≥32 | ≥32 | |
| SPHD | ≥270 | ≥32 | ≥33 | ≥35 | ≥37 | ≥39 | |
| SPHE | ≥270 | ≥33 | ≥35 | ≥37 | ≥39 | ≥41 | |
| SS330 | ≥205 | 330～430 | ≥26 | ||||
| SS400 | ≥245 | 400～510 | ≥21 | ||||
| SAPH310 | ≥ | ||||||
| SAPH370 | ≥370 | ≥255 | ≥32 | ||||
| SAPH400 | ≥ | ||||||
| SAPH440 | ≥ | ||||||
|
Notes: 1. The tensile test specified value in the table is suitable for longitudinal test piece. 3. Steel strip is delivered in the state of hot rolling.
|
|||||||
Prepainted galvalume steel coil PARAMENTERS
Description : Pre-painted galvanized /galvalume steel coil/sheet
Coil Weight : Standard is 5-8mt, always based on customers’ requirements
Thickness : 0.12mm~3.0mm
Width : 914mm,1000mm,1200mm,1219mm,1250mm,1500mm
Galvanized Sheet:
Hot galvanized sheet and alloying galvanized sheet have excellent performance, ideal combination property including corrosion resistance, formation and coating, and are mainly used for building, automobiles, metallurgy, and electrical equipment. Galvanized sheet is mainly used for making roof, door and window, roller shutter door, and suspended skeleton in building industry, vehicle shell, chassis, door, trunk lid, oil tank and fender in auto industry, steel sash blank and color coated sheet substrate in metallurgy industry, and refrigerator base, shell, refrigerating chamber, kitchen equipment and other parts in electrical equipment industry.
Cold Rolled Sheet:
Cold sheet has excellent type and surface quality and mechanical property indexes meeting customer demands. It is widely used for galvanized substrate, home appliances, tubbing, automobile, building, enamel, and other industries.
Prepainted galvalume steel coil APPLICATION
PACKING AND SHIPPING OF PREPAINTED GALVALUME STEEL COIL :
Standard exporting package.wrapped with waterproof paper.Then after fully wrapped with high density PE film.Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical
