Regular Spangle Chromating Galvalume Steel Sheet For Duct Work And Sheds
Product Details:
| Place of Origin: | China |
| Brand Name: | HUIYI-GI |
| Certification: | SGS , BV , ISO9001 |
| Model Number: | SPCC , SGCC , SGCH,SGCD , DX51/52/53/54D+Z , Q195/21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard exporting package, wrapped with waterproof paper. Then high density PE film. after fully covered with iron sheet with metal edge protectors, strapped with metal bands |
| Delivery Time: | 15-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 8000 tons per month |
|
Detail Information |
|||
| Surface: | Hop-dipped Galvalume | Application: | Decoration , Flange Plate , Ship Plate, Building |
|---|---|---|---|
| Width: | 600-1250 Mm | Thickness: | 0.13-0.7 Mm |
| Zinc-coating: | AZ20-AZ120 | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
| Tolerance: | +/-0.02mm | Coil ID: | 508mm/610mm |
| Coil Weight: | According To Customers' Requirements | Product Name: | Anti-finger Chromating Hot Rolled Galvalume Steel Coil / Sheet JIS G3302 |
| Highlight: | Chromating Galvalume Steel Sheet,Regular Spangle Galvalume Steel Sheet,Regular Spangle galvanized coil stock |
||
Product Description

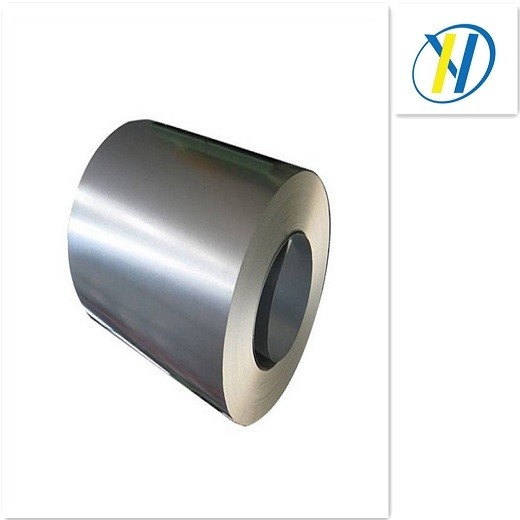

Regular spangle Chromating Galvalume steel sheet for duct work and sheds
Galvalume steel sheet specifications :
| Product name | Galvalume Steel Sheet in Coil |
| Material | CGCC, DX51D,Q195,Q235 |
| Grade | SGCC,DX51D+Z |
| Alu-Zinc Coating | 20-120g/m2 |
| Thickness | 0.13-0.7 mm |
| Width | 600-1250 mm |
| Coil ID | 508/610mm |
| Coil weight | 3-8tons |
| Surface Structure | Mini/Big Spangle |
| Surface Treatment | Anti-Finger printing ,Chromated, oiled/ non-oiled |
| Package | standard export package (Detailed picture is as follows) |
| Hardness | soft (normal), hard, full hard(G300-G550) |
| HS code | 721049 |
| Country of origin | China |
| Product Specification and Size : | |||||||||||||
| Hot-Dip 55% Al-Zn Coated Steel Coil (GL) | |||||||||||||
| JIS G 3321 | ASTM A792M | AS 1397 | EN10346 | ||||||||||
| Specifications | SGLCD | SGLCC | SGLC400 | CS | DS | SS | G3 | G1 | G250 G300 G350 G450 G500 G550 | DX51D | DX52D | S220GD | S550GD |
| SGLCDD | 440 570 | Type | Grade | G2 | DX53D | S250GD | |||||||
| A | 230 | S280GD | |||||||||||
| B | 255 | S320GD | |||||||||||
| C | 275 | S350GD | |||||||||||
| FS | 340 | ||||||||||||
| 550 | |||||||||||||
| Thickness of Base Steel (mm) | SGLCC, SGLC340: 0.17~2.02mm; | CS Type A, B, C, Grade 230, 255: 0.17~2.02mm; | G1, G250: 0.17~2.02mm; | DX51D, S220GD, S250GD: 0.17~2.02mm; | |||||||||
| SGLCD1~3: 0.3~1.4mm; | FS Type A, B: 0.295~1.6mm; | G300: 0.28~1.5mm; | DX52D: 0.295~1.6mm; | ||||||||||
| SGLC400: 0.2~1.5mm; | DS: 0.3~1.4mm; | G350: 0.2~2.0mm; | DX53D, 54D: 0.3~1.4mm; | ||||||||||
| SGLC440: 0.2~2.0mm; | SS Grade 275: 0.22~1.5mm; | G450: 0.6~1.5mm; | S280GD: 0.22~1.5mm; | ||||||||||
| SGLC570: 0.17~2.0mm | SS Grade 340: 0.2~2.0mm; | G500, G550: 0.17~2.0mm | S320GD, S350GD: 0.2~2.0mm; | ||||||||||
| SS Grade 550: 0.17~2.0mm | S550GD: 0.17~2.0mm | ||||||||||||
| Coating Mass | AZ70~AZ185 | AZM100~AZM180 | AZ150 | AZ100~AZ185 | |||||||||
| Surface Finish | Regular Spangle | ||||||||||||
| Surface Treatment | Chromating, Oiled, Resin Coated (Anti-Fingerprint), or according to your requirements | ||||||||||||
| Remarks | 1. Tolerance for thickness, width, flatness and so on conforms to individual product specification. | ||||||||||||
| 2. All products with thickness 2.0mm and under can be skin passed. | |||||||||||||
| 3. The coil inside diameter can be either 508mm or 610mm. The maximum coil outside diameter is 2000mm. | |||||||||||||
| 4. Please make inquiries to our company for products with special specifications. | |||||||||||||
| 5. Coating mass beyond the specifications above can be provided upon mutual agreement | |||||||||||||
Galvalume steel coil application:
1. Buildings And Constructions
Floor Decks, Ceilings, Duct Work, Roofing, Siding, Sashes, Beams, Fences, Verandas, Shutters,
Awnings,
Partitions, Indoor Decorations, Pipes, Ventilators, Sheds, Culverts.
2. Transportation
Body Pane, Air Cleaners, Oil Filters, Fuel Tanks, Containers, Highway Barriers.
3. Appliances
Light Fittings, Washing Machines, Dryers, Coolers, Vending Machines, Water Heaters, Stoves,
Refrigerators, Freezers, Tool Boxes.
4. Agriculture
Barns, Dryer Panels, Animal Houses, Hoppers. Bar Supporters, Irrigation Systems, Green Houses.
5. Others
Furniture And Office Equipment, Entertainment Machines, Car Ports, Garden And Storage Sheds
Product features & advantages:
1)The most popular feature of this roofing material is its durability. These roofing sheets can easily
last for about 5 to 7 years.
2)Corrugated metal roofing sheets are treated and coated with chemicals to prevent the growth of
algae and mildew. They are also resistant to rot, rust and insects.
3)Other beneficial features include its non-combustible nature.
These sheets have a Class A fire rating,which is the highest rating as far as fire-resistance is
concerned.
4)They are also lightweight, which facilitates easy installation and reduction of load on the roof
structure.

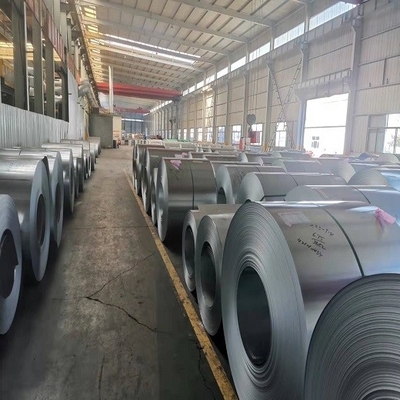

Here are the loading pictures of galvalume steel coil :
FAQ:
1. Minimum Order Quantity?
A: The MOQ is 22 tons, the galvanized steel sample is available as long as your quantity is ok.
2. What kind of terms of payment?
A: T/T, L/C are available.
3. Is free sample available?
A: Yes, free sample is available.
4. Can you do Customization & Reproduction if I provide a photo?
A: Yes, we do Customization & Reproduction service.
5. Does the packaging safe and arrive in good conditions?
A: Yes, safe Packing guarantee , all the products will arrive your door under good conditions.
We response to problem of shipping if there unfortunately is.
6. How long does it usually take to deliver the product?
A: We will make the shipment to you immediately. It will take about 18 to 40 days arrive worldwide. It depends on the specific quantity.
