GL Blue Prepainted Galvanized Steel Sheet Anti Finger Print

GL Blue Prepainted Galvanized Steel Sheet Anti Finger Print

Product Details:

Place of Origin: China
Brand Name: HUYI-GI
Certification: SGS , BV , ISO9001
Model Number: G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH

Payment & Shipping Terms:

Minimum Order Quantity: 25tons each thickness
Price: Negotiation
Packaging Details: water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel
Delivery Time: 15-35 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: GL Blue /Color Coated 55%Galvalume Steel Coil / Cold Rolled Surface: Regular Spangle ,Minimise Spangle
Color: White , Blue , Green , Red , Yellow Etc. Width: 30mm-1500mm
Thickness: 0.12mm-2.0mm Zinc-coating: AZ30-AZ150
Standard: ASTM , AISI , GB , JIS , DIN Shape: Coil / Flat /Corrugated
Inner Diameter: 508mm/610mm Surface Treatment: Blue AFP Or Non-AFP
Highlight:

GL prepainted galvanized steel sheet

,

HUYI 2mm zinc coated galvanized steel

,

AZ150 prepainted galvanized steel sheet

Product Description

GL Blue /Color Coated 55%Galvalume Steel Coil / Cold Rolled , Minimised Spangle,Anti-Finger Print



Introduction:



Galvalume (abbreviation:GL steel) is hot plating on the surface of steel plate with Al55%,Zn43.5%,Si l.5% ,the surface is smooth,has a good rsistance to atmospheric corrosion,heat resistant oxidation.55% aluminum steel plate is a product produced by continuous hot-dip galvanizing process with cold-rolled steel coil as substrate . The whole structure is composed of aluminum, one iron, one silicon and one zinc, forming a compact four element crystal. Heat plated aluminum, zinc and silicon (GL) products, with various strength and thickness of the cold rolled steel plate as the base material, on the surface of the strip, heat plating aluminum (AL55%), zinc (ZN43.4%), silicon (S11.6%) alloy, have excellent corrosion resistance.After passivation and oiling treatment , it will not deteriorate during short-term storage in the plates .



Application range:



Industrial instrumentation: vending machine . electric control cabinet, industrial refrigeration cabinet.

Construction: the shutter , the roof of the building , the garage door, the exterior wall , the fence.

Automobile industry:the bottom part of the car body, road signs , automobile muffler, exhaust pipes and a catalytic converter heat shield .
Home appliance industry: electrical components , oven, solar water heater , air conditioning and ventilation system outside the cover.





Products 55% Blue Galvalume steel coil
Standard ASTM A653 , JIS G3321 , GB/T3830-2006
Grade G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH
Thickness 0.12mm-2.0mm
Width 30mm-1500mm
Base Metal Cold Rolled Steel
AL-Zinc Coating AZ30-150g/sqm
Coil Internal Diameter 508mm/610mm
Surface Treatment Chromating , Oiled
Tolerance Thickness:+/-0.05mm , Width:+5/-2mm , Total Quantity:+/-10% , Zinc Coating:+/-10%
Surface Finish Regular spangle ,Minimise spangle

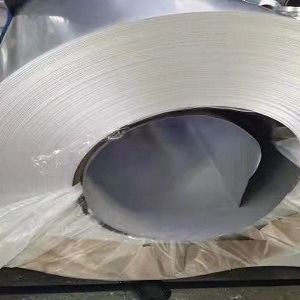

Galvalume steel loading pictures:



GL Blue Prepainted Galvanized Steel Sheet Anti Finger Print 0

GL Blue Prepainted Galvanized Steel Sheet Anti Finger Print 1
