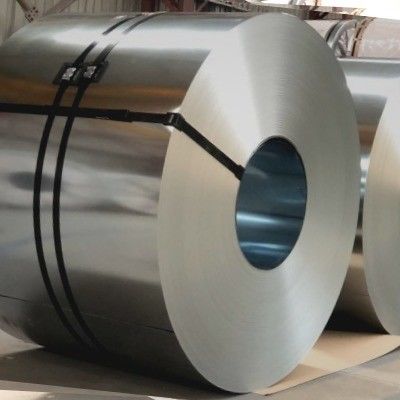

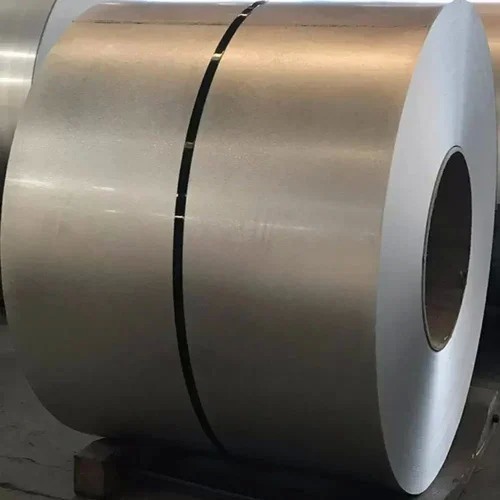

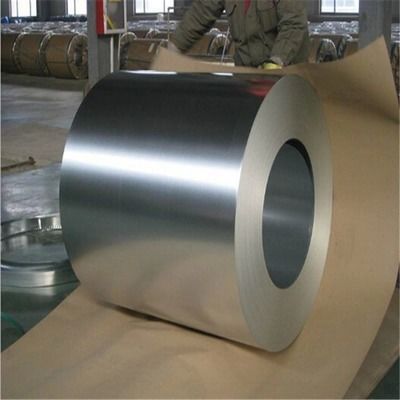

DX51D+AZ Galvalume Steel Coil with >75% Solar Reflectivity for Building Envelope
Product Details:
| Place of Origin: | China |
| Brand Name: | HuiYi-GL |
| Certification: | ASTM, EN |
| Model Number: | DX51D+AZ/S350GD+AZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25MT |
|---|---|
| Price: | Negotiation |
| Packaging Details: | VCI kraft paper + 0.3mm PE film + Steel-strapped pallets with edge guards |
| Delivery Time: | 15-30 Days |
| Payment Terms: | T/T,L/C,D/P |
| Supply Ability: | 5000MT/Month |
|
Detail Information |
|||
| Product Name: | Galvalume Steel Coil | Material: | High-Strength Steel Coil |
|---|---|---|---|
| Size: | (0.12-3.0)mm × (600-1500)mm | Tensile Strength: | 270-550 MPa |
| Yield Strength: | 140-340 MPa | Salt Spray Resistance: | 1,000hrs (ASTM B117) |
| Heat Reflectivity: | >75% | Heat Resistance:: | Up To 315°C (600°F) |
| Highlight: | 55% Aluminum-Zinc Coated Steel Coil,Solar Reflectivity >75% Galvalume Steel Coil,Heat Resistance 315°C Aluzinc Steel Coil |
||
Product Description
DX51D+AZ Galvalume Steel Coil with >75% Solar Reflectivity for Building Envelope
Our DX51D+AZ Galvalume Steel Coil is engineered for building envelope systems, combining long-term durability with exceptional energy efficiency. Its core is a hot-dip 55% aluminum-zinc-silicon coating (55% Al, 43.4% Zn, 1.6% Si), which provides 2–6 times better corrosion resistance than standard galvanized steel and a proven service life of 20–25 years. A key advantage is its >75% solar radiant heat reflectivity – nearly double that of galvanized steel – significantly reducing building cooling costs while withstanding temperatures up to 315°C (600°F) without discoloration. Certified to ASTM A792/A792M, this coil delivers reliable, high-performance solutions for demanding architectural applications worldwide.
Technical Parameters
| Parameter | Specification |
|---|---|
| Base Material | High-Strength Steel Coil |
| Thickness | 0.12mm - 3.0mm(±0.02mm) |
| Width | 600mm - 1,500mm |
| Coating Weight | AZ100-AZ275 |
| Heat Reflectivity | >75% (approx. 2x galvanized steel) |
| Aluminum Content | 55% |
| Surface Finish | Chromated/Oiled, Anti-Fingerprint |
| Spangle Type | Minimal Spangle |
| Coil ID | 508mm/610mm |
| Coil Weight | 3-12 Tons |
Applications
- Roofing & Wall Cladding: Commercial, industrial, and agricultural buildings
- Structural Components: Light gauge steel frames, purlins, and trusses
- Architectural Elements: Facades, rain gutters, downpipes
- Garage Doors & Security Fencing
Customization Options
- Coating Weight: Tailored within the AZ100-AZ275 range
- Dimensions: Custom thickness, width, and length cuts
- Surface Treatment: Oiled, Chromated, or Anti-Fingerprint
- Spangle Type: Regular, minimized, or zero spangle
- MOQ: Competitive Minimum Order Quantity, with samples available
Packing and Shipping
Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Quality Assurance: Pre-shipment inspection and moisture indicators for transit protection.
FAQ
Q: What is the typical lifespan of this product in a building envelope application?
A: Its high solar reflectance (over 75%) means it bounces back a significant portion of the sun's radiant heat. This helps in reducing heat absorption through the building envelope, leading to lower cooling loads and energy savings, especially in hot climates.
Q: What's the payment term for Galvalume Steel Coil?
A: 30-50% TT in advance (based on your qty), 70% balance against copy B/L in 7 workdays.
Q: When will you send BL copy?
A: In 3-5 workdays after shipment date.
Q: When will you send original Documents?
A: In 3-5 workdays when we get the balance.
Q: What is the lead time for samples?
A: Samples are available in 7-10 days after detailed requirements confirmation.
Q: What is your working time?
A: Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.
