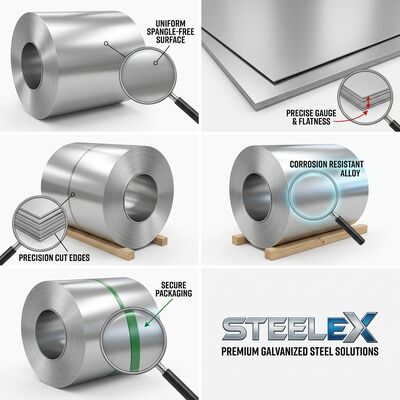

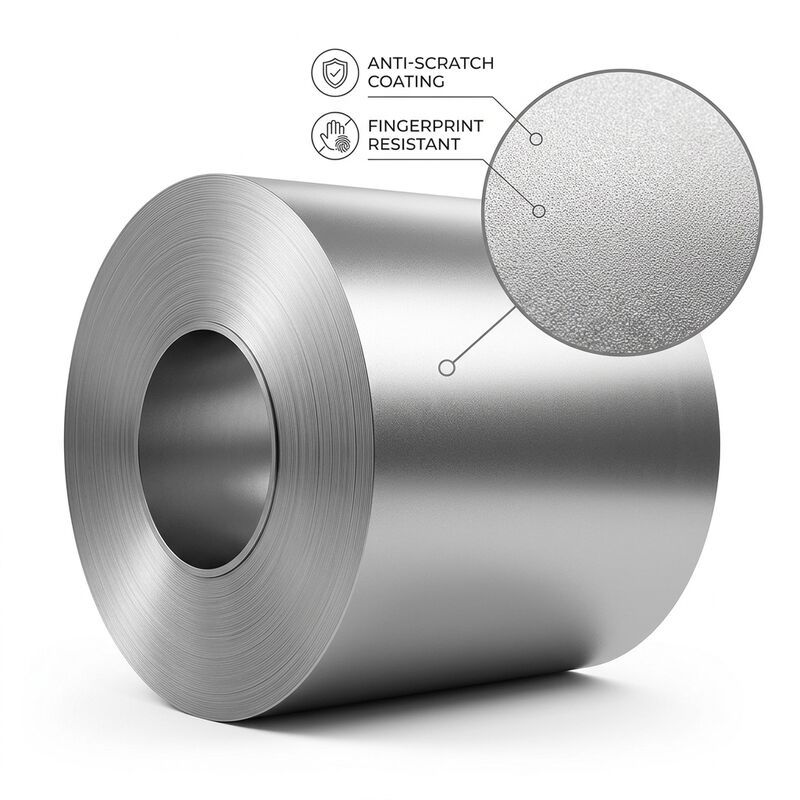

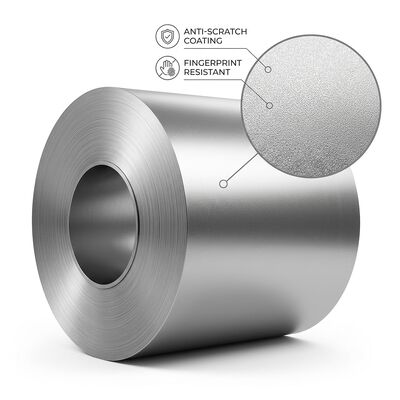

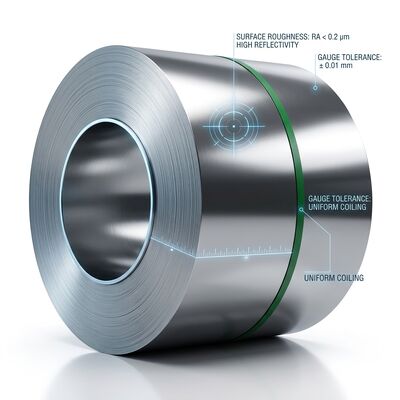

Commercial Grade Galvalume Steel Coil AZ150 ASTM A792 for Industrial Roofing Construction

Our AZ150 Galvalume Steel Coil is specifically engineered for commercial and industrial roofing applications where long-term durability, structural integrity, and cost efficiency are paramount. Manufactured to ASTM A792 standards, this product features a continuous hot-dip coating process that applies a 55% aluminum-zinc-silicon alloy layer onto cold-rolled steel substrate, creating a robust barrier against atmospheric corrosion. With a coating mass of AZ150 (150 g/m² double-sided, approximately 18-20 µm per side), this coil delivers exceptional performance in moderate to aggressive environments, making it the preferred choice for warehouses, factory buildings, shopping centers, exhibition halls, and large-scale prefabricated steel structures. The aluminum-rich phase forms a dense, passive oxide layer that shields the underlying steel from moisture and pollutants, while the zinc component provides galvanic protection at cut edges and scratches, ensuring comprehensive coverage across the entire installed surface. Unlike conventional galvanized steel, the 55% Al-Zn alloy offers two to four times the corrosion resistance in atmospheric exposure, translating to lower maintenance costs and extended service cycles for building owners and contractors.

• Superior Corrosion Resistance: The 55% Al-Zn alloy coating provides 2-4x better atmospheric corrosion protection compared to traditional hot-dip galvanized steel (GI), with proven performance exceeding 30 years in rural and moderate industrial environments under ASTM B117 salt spray testing conditions.
• Excellent Heat Reflectivity: Galvalume steel has naturally high thermal reflectance properties, reflecting up to 75% of solar radiation. This helps reduce building cooling loads by 15-20% in warm climates, contributing to energy savings and compliance with green building standards such as LEED and BREEAM.
• Outstanding Formability and Workability: Cold-rolled base material with controlled mechanical properties enables trouble-free roll forming, bending, profiling, and cutting operations. The coating maintains adhesion integrity during severe deformation processes, eliminating flaking or peeling in finished roofing profiles.
• Consistent Coating Uniformity: Advanced air-knife wiping technology during the continuous hot-dip process ensures precise coating thickness control across the full width of the coil, with tolerance maintained within ±5 g/m² of the nominal coating mass. This uniformity guarantees consistent performance across every square meter of installed roofing.
• Wide Dimensional Range: Available in thicknesses from 0.12mm to 2.0mm and widths from 600mm to 1500mm, our Galvalume steel coil accommodates virtually all commercial roofing profile requirements, from light-gauge standing seam panels to heavy-duty structural decking applications.
• Multiple Surface Finish Options: Choose from regular spangle for a classic metallic appearance, minimized spangle for a smoother uniform finish, or zero spangle for applications requiring enhanced paint adhesion in pre-painted roofing systems. Anti-fingerprint and chromated passivation treatments are available for additional surface protection during handling and storage.
• Comprehensive International Standards Compliance: Products are certified to ASTM A792, JIS G3321, EN 10346, AS 1397, and GB/T 2518, ensuring acceptance in construction projects across North America, Europe, Asia-Pacific, and the Middle East. Full mill test certificates (MTC) accompany every shipment.

This AZ150 Galvalume Steel Coil is optimized for commercial and industrial roofing systems where structural reliability and long-term weathering performance are critical project requirements. Primary applications include standing seam metal roofing for warehouses, logistics centers, and distribution hubs; corrugated and trapezoidal roof panels for factory buildings, steel mills, and manufacturing plants; wall cladding systems for commercial complexes, shopping malls, and exhibition centers; structural decking profiles for multi-story steel-frame buildings; prefabricated house roofing and sandwich panel facings; and industrial shed roofing in moderate to aggressive atmospheric environments. The product is also suitable for mezzanine floor decking, ceiling grid systems, and acoustic barrier panels in transportation infrastructure projects. For coastal or highly polluted industrial settings with extreme corrosion risks, we recommend consulting our technical team for AZ200 heavy-duty coating options or considering supplementary protective topcoats to maximize service life.

Every coil is packaged with a triple-shield system: an inner layer of VCI (Vapor Corrosion Inhibitor) anti-rust kraft paper, a 0.3mm PE waterproof film with integrated moisture indicators, and an outer layer of protective steel sheet wrapping. Coils are secured on fumigated wooden pallets with circumferential steel strapping and plastic edge guards, with a maximum coil weight of 8 tons per pallet. Each shipment includes full documentation: mill test certificates (MTC) per ASTM A792, coating mass verification reports, mechanical property test results, dimensional inspection records, and packing lists with heat numbers for traceability. We implement statistical process control (SPC) on every production batch, sampling coating mass, adhesion (bend test), and mechanical properties at coil head and tail positions. Pre-shipment inspection (PSI) by SGS, BV, or client-nominated third-party agencies is available upon request to ensure full specification compliance before container loading.
