ASTM A792 Certified Galvalume Steel Coil For Architectural
Product Details:
| Place of Origin: | China |
| Brand Name: | HuiYi-GL |
| Certification: | ASTM, EN |
| Model Number: | DC51D+AZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25MT |
|---|---|
| Price: | Negotiation |
| Packaging Details: | VCI kraft paper + 0.3mm PE film + Steel-strapped pallets with edge guards |
| Delivery Time: | 15-30 Days |
| Payment Terms: | T/T,L/C,D/P |
| Supply Ability: | 5000MT/Month |
|
Detail Information |
|||
| Product Name: | Galvalume Steel Coil | Material: | High-Strength Steel Coil |
|---|---|---|---|
| Size: | (0.12-3.0)mm × (600-1500)mm | Tensile Strength: | 270-500 MPa |
| Yield Strength: | 140-280 MPa | Salt Spray Resistance: | 1,000hrs (ASTM B117) |
| Thermal Reflectivity: | >75% | Coating Life: | 20-25 Years (normal Environments) |
| Highlight: | ASTM A792 Galvalume steel coil,architectural Galvalume steel coil,certified Galvalume steel coil |
||
Product Description

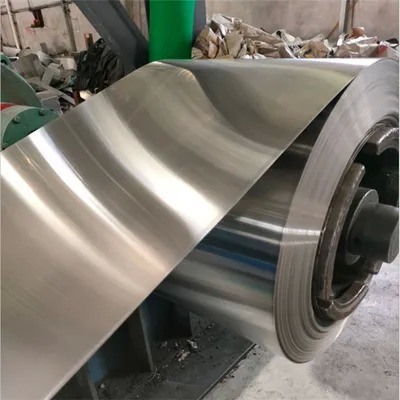

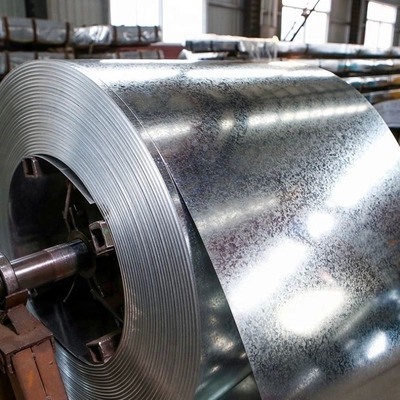

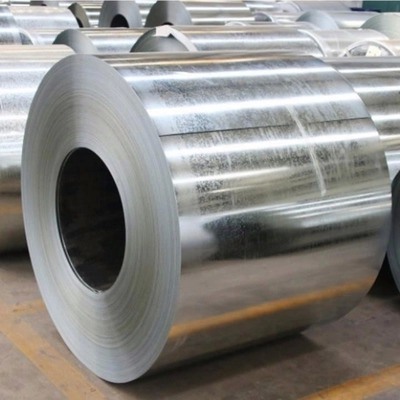

ASTM A792 Certified Galvalume Steel Coil For Architectural
Our ASTM A792 Certified Galvalume Steel Coil is engineered for superior performance in architectural applications. Featuring a 55% aluminum-zinc-silicon coating (55% Al, 43.4% Zn, 1.6% Si) this coil provides 2-6 times better corrosion resistance than standard galvanized steel. The hot-dip process creates a metallurgical bond that offers durable protection, with a service life of 20-25 years in normal environments. Ideal for roofing, cladding, and structural components, it also exhibits excellent heat resistance (up to 315°C without discoloration) and high thermal reflectivity (over 75%). Certified to ASTM A792 and supported by ISO 9001 quality management, this coil ensures reliability for demanding architectural projects globally.
Technical Parameters
| Parameter | Specification |
|---|---|
| Base Material | High-Strength Steel Coil |
| Thickness | 0.12mm - 3.0mm(±0.02mm) |
| Width | 600mm - 1,500mm |
| Coating Weight | AZ100-AZ275 |
| Standard/Grade | ASTM A792 |
| Aluminum Content | 55% |
| Surface Finish | Chromated/Oiled, Anti-Fingerprint |
| Spangle Type | Minimal Spangle |
| Coil ID | 508mm/610mm |
| Coil Weight | 3-12 Tons |
Applications
- Building Envelopes: Roofing and wall cladding systems for commercial, industrial, and agricultural buildings.
- Structural Components: Light gauge steel frames, purlins, and trusses.
- Architectural Elements: Facades, rain gutters, downpipes, and decorative panels.
- Interior Applications: Ceiling panels, partition walls, and fire doors.
Customization Options
- Coating Weight: Tailored aluminum-zinc coating within the AZ100-AZ275 range.
- Dimensions: Custom thickness, width, and length cuts.
- Surface Treatment: Oiled, Chromated, or Anti-Fingerprint treatment.
- Spangle Type: Regular spangle, minimized spangle, or zero spangle.
- MOQ: Competitive Minimum Order Quantity with samples available for quality verification.
Packing and Shipping
Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Quality Assurance: Pre-shipment inspection and moisture indicators for transit protection.
FAQ
Is the ASTM A792 certification reliable?
Yes, ASTM A792 is an internationally recognized standard that specifies requirements for steel sheet coated with aluminum-zinc alloy by the hot-dip process, ensuring product quality and consistency.
What's the payment term for Galvalume Steel Coil?
30-50% TT in advance(based on your qty), 70% balance against copy B/L in 7 workdays.
When will you send BL copy?
In 3-5 workdays after shipment date.
When will you send original Documents?
In 3-5 workdays when we get the balance.
What is the lead time for samples?
Samples are available in 7-10 days after detailed requirements confirmation.
What is your working time?
Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.
