Galvalume Steel Coils Strips G550 Metal Roofing Coil Colour Coated Steel Sheet
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HUIYI-GL |
| Certification: | SGS |
| Model Number: | JIS3322,G550 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard exporting package , wrapped with waterproof paper. Then after fully wrapped with high density PE film. Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical. |
| Payment Terms: | L/C, D/P, T/T |
|
Detail Information |
|||
| Color: | RAL Color | Tensile Strength: | 580-620Mpa |
|---|---|---|---|
| Width: | 600-1500mm | Thickness: | 0.12-2.0mm |
| Yield Strength: | 530-570Mpa | Spangle: | Regular/Zero Spangle |
| Product Name: | HUIYI-Galvalume Steel Strips | Surface Treatment: | Chromated, Oiled, Anti-finger |
| Coil Id: | 508mm/610mm,610mm,508mm | Zinc Coating: | 30- 150g/m2,60-275g/sqm,az30-az150 |
| Highlight: | Metal Roofing Galvalume Steel Coil,Colour Coated Galvalume Steel Coil,G550 Galvalume Steel Coil |
||
Product Description
Cold Rolled Galvalume Steel Coils/Strips (G550, Boron-Added, SGLCC, Blue AFP)** are high-quality steel products manufactured through a cold rolling process to enhance strength and durability. These coils feature a protective galvalume coating—a blend of zinc and aluminum—for superior corrosion resistance. The addition of boron further improves mechanical properties and longevity, making them ideal for demanding applications.
| Property | Value |
| Product Name | GL BLUE:AZ70, BORON, AFP |
| Grade | SGLCC, G550, JIS G3302 |
| Coil Width | 1219MM, 914MM, 750MM, 610MM, etc. |
| Coil id | 508/610mm |
| Spangle | Normal Spangle,Mini Spangle,Big Spangle |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Application | Construction, building, electric industry, etc. |
- Strong corrosion resistance
- High surface quality
- Conducive to deep processing, such as corrugated steel sheet
- Economy and practicality
Galvalume steel (GL) has a wide range of applications across various industries due to its excellent corrosion resistance, durability, and versatility. Some common applications of Galvalume steel include:
- Roofing Applications: Galvalume steel is a popular choice for both residential and commercial roofing systems. Known for its exceptional corrosion resistance, it offers long-term durability and performance. Available in a variety of profiles and colors, Galvalume steel roofing can complement diverse architectural designs while ensuring lasting protection.
- Automotive Industry: Galvalume steel is widely utilized in automotive manufacturing for components such as body panels, chassis parts, and structural reinforcements. Its excellent corrosion resistance and high strength-to-weight ratio make it an ideal material for enhancing vehicle durability and performance while maintaining lightweight efficiency.
- Construction Applications: Galvalume steel is extensively employed in building construction for structural elements including beams, columns, and trusses. Combining high strength with exceptional durability, it offers reliable resistance against harsh environmental conditions, making it a preferred choice for challenging construction projects.
- Agricultural Buildings: Galvalume steel is commonly used in agricultural buildings, such as barns and storage sheds. It provides a durable and weather-resistant solution for protecting livestock, equipment, and agricultural products.
Strip width measurement (roll can be divided as needed)-151MM

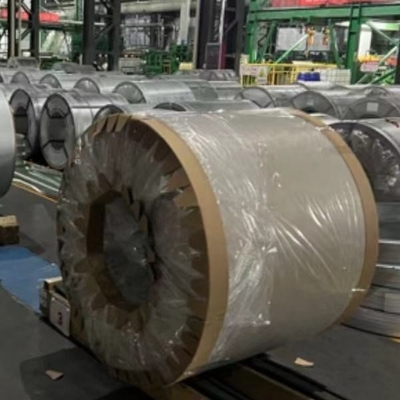

Galvalume Steel Coil is usually packed in bundles or rolls, and then placed in wooden cases or pallets for safe delivery and storage.The shipping methods may include small parcel delivery, large parcel delivery, air transport and sea transport.
A1: Galvalume Steel Coil is a type of steel coil manufactured by Huiyi in China that has been certified by ISO9001. It is often used in construction and other applications.
A2: Galvalume Steel Coil has high strength, good corrosion resistance, and excellent formability. It is also easy to work with and weld.
A3: The price of Galvalume Steel Coil is negotiable. Please contact us for more information.
A4: The payment terms for Galvalume Steel Coil are L/C, D/P, and T/T.
A5: Galvalume Steel Coil is manufactured by Huiyi in China.
