Galvalume Steel Coil The Top-Notch Solution For Building And Construction Industry
Product Details:
Place of Origin: | China |
Brand Name: | Huiyi-GL |
Certification: | ISO9001 |
Model Number: | SGLCC,G550 |
Payment & Shipping Terms:
Minimum Order Quantity: | 22-25Tons |
---|---|
Price: | Negotiation |
Packaging Details: | Exporting Packing with 3layers including the waterproof plastic film,Waterproof paper - plastic film-metal wrap. |
Delivery Time: | 15-30 Days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 5000MT/Month |
Detail Information |
|||
Coil Weight: | 3-8Tons | Mother Coil Width: | 914mm,1219mm |
---|---|---|---|
Elongation: | 8-32% | Coil Color: | Blue |
Surface: | Chromated, Dry, Unoil | Surface Treatment: | Anti-fingerprint Treatment, Oiling |
Standard: | EN, DIN, JIS, ASTM | Zinc Coating: | AZ30-AZ150g/m2 |
Highlight: | Durable Galvalume Steel Coil,Building Construction Galvalume Steel Coil,Galvalume Steel Coil Building Construction |
Product Description
Product Description:
Galvalume Steel Introduction
Galvalume steel is also called Aluminum-Zinc Alloy Coated Steel,aluminized zinc steel(aluzinc steel),SGLC,The galvalume metal is composed of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at 600 ~C. Its whole structure consists of aluminium-iron-silicon-zinc, forming a compact quaternary crystal alloy.The surface of the galvalume steel sheet is characterized by smooth, flat and gorgeous stars, and its base color is silver white. The special coating structure makes it have excellent corrosion resistance.
Technical Parameters:
Product Attribute | Technical Parameter |
Product Name | Galvalume Steel Coil (Also known as Alu-zinc steel coil, Zinc Aluminized sheet/coil, Galvalume steel plate coil) |
Surface | Chromated, Dry, Unoil |
Elongation | 8-32% |
Zinc Coating | AZ30-AZ150g/m2 |

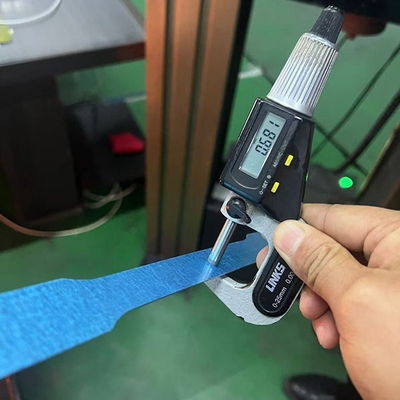

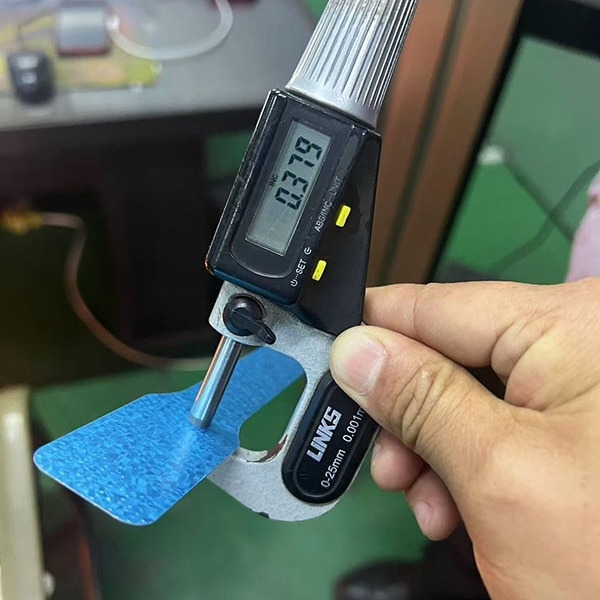

Thickness | 0.35~1.00mm (Tolerance: ±0.02 Mm) |
Coil Color | Blue |
Coil Inner Diameter | 508/610mm |
Surface Treatment | Anti-fingerprint Treatment, Oiling |
Standard | EN, DIN, JIS, ASTM |
Coil Weight | 3-8Tons |
Mother Coil Width | 914mm,1219mm |
Applications:
Construction industry: Metal sheets used to make roofs and walls, with good weather resistance and appearance decoration.
Agricultural Field: Construction of agricultural facilities, such as frames and covering materials for greenhouses.
Transportation: Used in the manufacture of railroad carriages, shells and internal structures of ships.
FAQ:
Q1: What is Galvalume Steel Coil?
A1: Galvalume Steel Coil is a type of steel coil manufactured by Huiyi in China that has been certified by ISO9001. It is often used in construction and other applications.
Q2: What are the characteristics of Galvalume Steel Coil?
A2: Galvalume Steel Coil has high strength, good corrosion resistance, and excellent formability. It is also easy to work with and weld.
Q3: What is the price of Galvalume Steel Coil?
A3: The price of Galvalume Steel Coil is negotiable. Please contact us for more information.
Q4: What are the payment terms for Galvalume Steel Coil?
A4: The payment terms for Galvalume Steel Coil are L/C, D/P, and T/T.
Q5: Where is Galvalume Steel Coil manufactured?
A5: Galvalume Steel Coil is manufactured by Huiyi in China.
