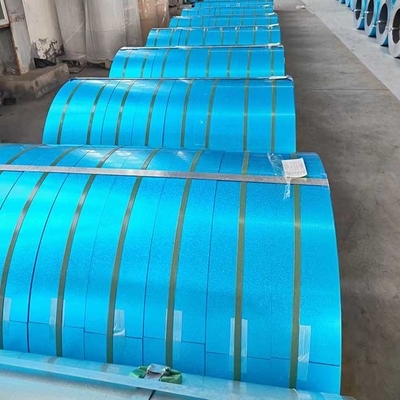

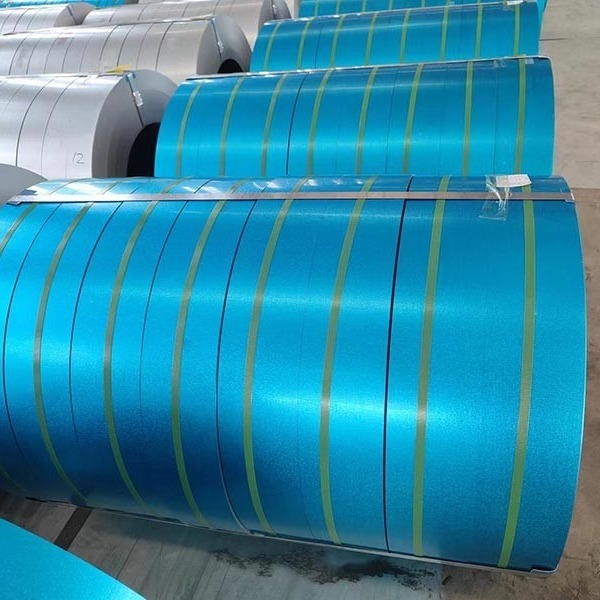

Galvalume Steel Coil Galvalume Steel Strip Color with Anti fingerprint Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | Huiyi |
| Certification: | ISO9001 |
| Model Number: | SGLCC,G550 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25Tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exporting Packing with 3layers including the waterproof plastic film，Waterproof paper - plastic film-metal wrap. |
| Delivery Time: | 15-30 Days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000MT/Month |
|
Detail Information |
|||
| Standard: | EN, DIN, JIS, ASTM | Elongation: | 8-32% |
|---|---|---|---|
| Surface: | Chromated, Dry, Unoil | Thickness: | 0.15~0.70mm (Tolerance: ±0.02 Mm) |
| Coil Color: | Blue | Surface Treatment: | Anti-fingerprint Treatment, Oiling |
| Material Grade: | SGLCC | Coil Outer Diameter: | 914mm，1219mm，1220mm |
| Highlight: | Galvalume Steel Strip,Color Galvalume Steel Coil |
||
Product Description
Galvalume Steel Coil Galvalume Steel Strip Color with Anti fingerprint Treatment
Galvalume Steel Strip is covered with aluminum-zinc alloy, which is composed of 55% aluminum, 43.4% zinc and 1.6% silicon solidified at 600 °C, the alloy coating makes the Galvalume Steel Strip has better performance, the corrosion resistance of Galvalume Steel is 2-6 times better than hot dip galvanized steel.
Shanghai Huiyi International Co., Ltd is experienced supplier Galvalume Steel Strip. If you want to know more about the product, please feel free to contact us, we will reply you within 24 hours. (Except statutory holidays)
Product Specifications
|
Thickness |
0.12mm-3mm,according to customer's requirement |
|
Width |
50-500mm,according to customer's requirement |
|
Standard |
GBT2518-2008,ASTM A653,JIS G3302,EN 10142,AS NZS1397 and etc |
|
Material Grade |
DX51D,SGCC,G300,G550,SGCH570 |
|
AZ Coating |
AZ30-AZ150 |
|
Surface Treatment |
Passivation or Chromated,Skin Pass.Oil or Unoiled,or Antifinger print |
|
Spangle |
Normal(non-skinpassed)/Skinpassed/Regular /Minimized |
|
Coil weight |
0.5-1.5tons,one package is 3-6 tons or as customer's requirement |
|
Coil inner Diameter |
508/610mm or as per your request |
|
Hardness |
Soft hard (HRB60),Mediun hard (HRB60-85),Full hard (HRB85-95) |
Feature
1) Composed of 55% aluminum, 43.5% zinc and 1.5% silicon
2) Formable, weldable and paintable
3) Corrosion resistance in the most atmospheric conditions. This is achieved through the combination of the sacrificial protection of the zinc and the barrier protection of the aluminum.
4) Coating out-performs galvanized coating from 2-6 times than hot dip galvanized steel
Applications
The Galvalume Metal Alloy Steel Coil is versatile and can be used in various applications. It is often used in the construction industry for roofing, walls, and ceilings. The product is also suitable for manufacturing home appliances such as refrigerators, air conditioners, washing machines, and microwave ovens. It can also be used in the automotive industry for manufacturing car parts, doors, and panels.
Packing and Shipping
Product Packaging:
- Galvalume steel coils will be wrapped with plastic film and waterproof paper.
- They will then be packed in wooden pallets or iron pallets with steel strips.
- The packaging can also be customized according to the customer's requirements.
Shipping:
- Galvalume steel coils will be shipped by sea or by train.
- The shipping time will depend on the distance and shipping method chosen.
- We will provide all necessary shipping documents and keep the customer updated on the shipping status.
FAQ
1. Q: What is the brand name of the Galvalume Steel Coil?
A: The brand name is Huiyi.
2. Q: What is the model number of the Galvalume Steel Coil?
A: The model number is SGLCC,G550.
3. Q: What is the minimum order quantity for the Galvalume Steel Coil and what is the packaging for export?
A: The minimum order quantity is 25Tons and the packaging details for export include 3 layers, which consist of waterproof plastic film, waterproof paper, plastic film, and metal wrap.
4. Q: What are the payment terms, delivery time, and supply ability for the Galvalume Steel Coil?
A: The payment terms include L/C, D/P, and T/T. The delivery time is between 15-30 days and the supply ability is 5000MT/month.
