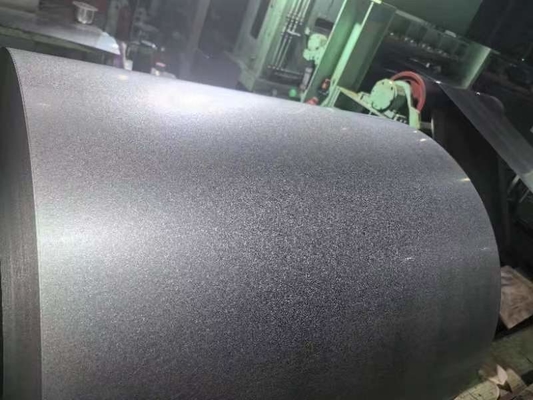

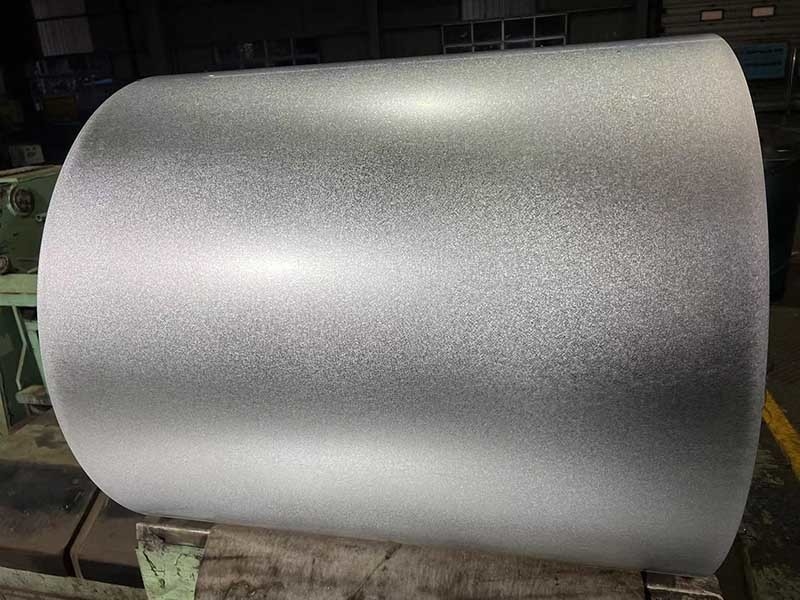

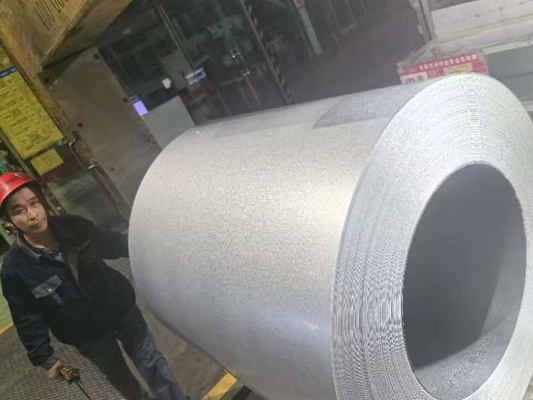

JISG3322 G550 Cold Rolled Galvalume Steel Coils 600mm - 1500mm Width
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HUIYI-GL |
| Certification: | SGS |
| Model Number: | JIS3322,G550 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard exporting package , wrapped with waterproof paper. Then after fully wrapped with high density PE film. Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical. |
| Delivery Time: | 15-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 tons per month |
|
Detail Information |
|||
| Product Name: | Galvalume Steel Coil/Sheet | Type: | Steel Coil,Steel Sheet |
|---|---|---|---|
| Width: | 600-1500mm | Thickness: | 015.-2.0mm |
| Coating Type: | AZ40g/㎡-AZ120g/㎡ | Spangle: | Big / Regular / Mini / Normal |
| Surface Treatment: | Chromated, Oiled, Anti-finger | Application: | Roofing,Construction,Structure |
| Highlight: | Galvalume Steel Coils 600mm,Cold Rolled Prepainted Galvalume Coil,Galvalume Steel Coil G550 |
||
Product Description
JISG3322 G550 Cold Rolled Galvalume Steel Coils 700mm-1500mm Width

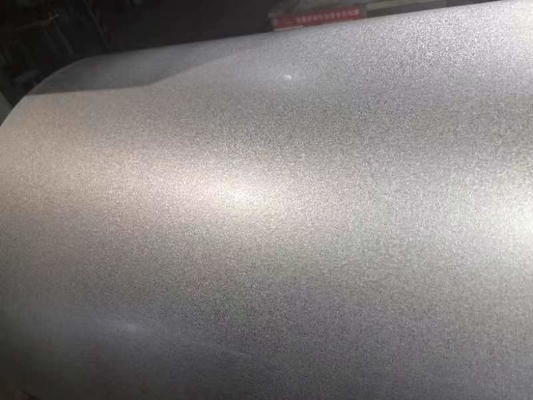

The hot dip galvalume steel is a kind of coated steel. With the cold rolled steel of different strength and thickness as substrate, it is produced through applying Al-Zn coat on both faces by hot dip process. In its coating, Al accounts for about 55%, Si 1.6%, while the remaining is Zn. It enjoys both the physical protective feature and durability of Al and the electrochemical protective property of Zn. And its surface has bright silver color and regular embossed-like figure, which are highly decorative.
Technical Parameters:
| Product Name | JISG3322 G550 Cold Rolled Galvalume Steel Coils 600mm-1500mm Width |
| Standard | EN10346, JIS G3302, ASTM A653, AS 1397, GB/T 2518 |
| Steel Grade | Dx51D, S350GD, S450GD, S550GD, SGHC, SGH340,SGH400,SGH440,SGH490,SGH540, SGCC,SGCH,G300,G450,G550. As Requirement |
| Type | Coil/Sheet/Plate/Strip |
| Thickness | 0.15mm-2.0mm or 0.8mm/1.0mm/1.2mm/1.5mm/2.0mm |
| Width | 600mm-1500mm or 914mm/1000mm/1200mm/1219mm/1220mm/1524mm |
| Zinc Coating | AZ40g/㎡-AZ120g/㎡ |
| Surface Structure | Big / Regular / Mini / Normal spangle |
| Surface Structure | Oiled (O),Passivated(C),Passivated and oiled (CO) ,Sealed (S),Phosphate (P),Phoaphte and oiled (CO) |
| Coil Weight | 3 Tons -5Tons |
| Coil ID | 508mm/610mm |
Galvalume Steel Coils Characteristics:
- Strong corrosion resistance
- High surface quality
- Conducive to deep processing, such as corrugated steel sheet
- Economy and practicality
Applications Of Galvalume Steel Coils
1.Roofing and Siding: Galvalume steel is often used for roofing and siding materials in residential, commercial, and industrial buildings. Its corrosion resistance and long lifespan make it suitable for protecting structures from harsh weather conditions.
2.Automotive Industry: Galvalume steel is employed in the automotive industry for manufacturing various components, such as body panels, chassis parts, and exhaust systems. Its combination of strength, formability, and corrosion resistance makes it an ideal material choice.
3.Appliances: Galvalume steel is utilized in the production of household appliances like refrigerators, ovens, washing machines, and air conditioning units. The corrosion resistance properties help protect these appliances from moisture and extend their lifespan.
4.Construction: Galvalume steel is commonly used in construction projects for structural elements like beams, columns, and purlins. Its high strength-to-weight ratio and corrosion resistance make it a reliable choice for building frameworks.
Quality Control of Galvalume Steel Coil:
1). Production scheduling:
All quality details required by customers, such as (RAL)color, glossiness, paint film thickness, weight per meter, width, roll length, roll weight, package as well as tolerance and delivery time, should be clearly recorded in the production sheet.
2). Following up manufacturing:
According to the requirements of the production schedule and the workshop operation standards, the production will be completed step by step to ensure that the quantity, quality, packing and delivery time are in conformity with the requirements of the buyers and relevant international standards.
3). Quality Inspection:
All goods will be inspected after finishing manufacture, a series of tests will be carried out, such as pencil hardness test, scribing hardness (also known as scratch hardness test), cut test, coating thickness measure, glossiness measure, impact test, moisture resistance test. Survey report will be issued and presented to clients.
We ensure that all products conform to the requirements of the order and relevant international standards.
Packing and Shipping:
Galvalume Steel Coil is usually packed in bundles or rolls, and then placed in wooden cases or pallets for safe delivery and storage.The shipping methods may include small parcel delivery, large parcel delivery, air transport and sea transport.
FAQ:
Q1: What is Galvalume Steel Coil?
A1: Galvalume Steel Coil is a type of steel coil manufactured by Huiyi in China that has been certified by ISO9001. It is often used in construction and other applications.
Q2: What are the characteristics of Galvalume Steel Coil?
A2: Galvalume Steel Coil has high strength, good corrosion resistance, and excellent formability. It is also easy to work with and weld.
Q3: What is the price of Galvalume Steel Coil?
A3: The price of Galvalume Steel Coil is negotiable. Please contact us for more information.
Q4: What are the payment terms for Galvalume Steel Coil?
A4: The payment terms for Galvalume Steel Coil are L/C, D/P, and T/T.
Q5: Where is Galvalume Steel Coil manufactured?
A5: Galvalume Steel Coil is manufactured by Huiyi in China.
