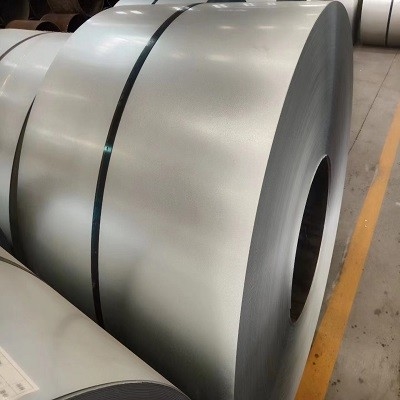

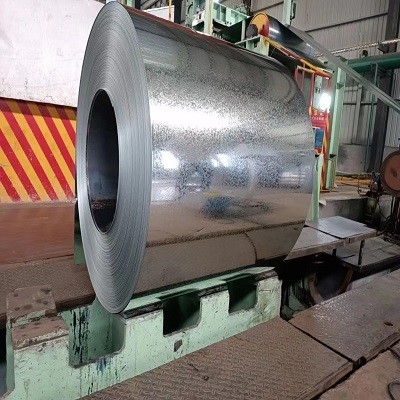

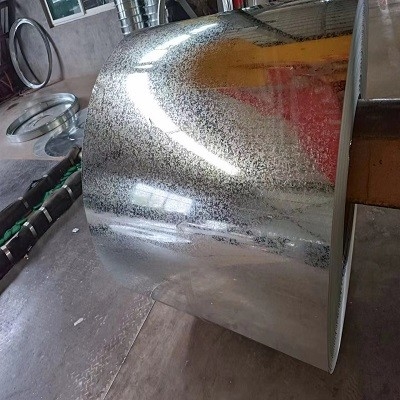

HRC CRC PPGI PPGL Steel Coil 914 - 1250mm G300 - G350 Al-Zinc
Product Details:
| Place of Origin: | China |
| Brand Name: | HUIYI-GL |
| Certification: | SGS , BV , ISO9001 |
| Model Number: | G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | USD/MT |
| Packaging Details: | water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel |
| Delivery Time: | 15-35 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 tons per month |
|
Detail Information |
|||
| Product Name: | PPGI | Thickness: | 0.25mm-1.2mm |
|---|---|---|---|
| Width: | 600mm-1250mm | Special Use: | High-strength Steel Plate,Other |
| Zinc Coating: | 40-275g/m2 | Material: | SGCC/CGCC/SPCC/DX51D/DX52D |
| Highlight: | G300 PPGL Steel Coil,1250mm Al Zinc PPGL Steel Coil,HRC GI Steel Coils |
||
Product Description
Specification
|
Thickness
|
0.13-1.0mm,Thickness tolerance:±0.02mm
|
|
Width
|
Less than750mm-1250mm,Width tolerance:-0/+3mm
|
|
Coil weight
|
3-6MT
|
|
Coil ID/OD
|
Coil ID:508±10mm ; Coil OD: 900-1200 mm
|
|
Paint Coating
|
15-25um
|
|
Colors
|
refer to RAL numbers or customer sample,common colors are sea blue, white grey and bright red.
|
|
Surface
|
top coating:10-25um;back coating :5-10 um
|
|
Gloss
|
The gloss can changeable by Customers' Request.we can also do some High gloss, with some sparkling granule in it.
|
|
Paint type
|
PE or PVDF
|
|
Standard
|
GB/T 12754-2006;ASTM A 755;EN 10169;JIS G 3312;AISI;BS;DIN
|
|
Grade
|
CGCC/SGCC/SGCH/SPCC
|
|
application:
|
Widely used in roof, construction, door and windows, solar heater, cold room, kitchen utensils, household appliance,
decoration,transportation and other lines. |

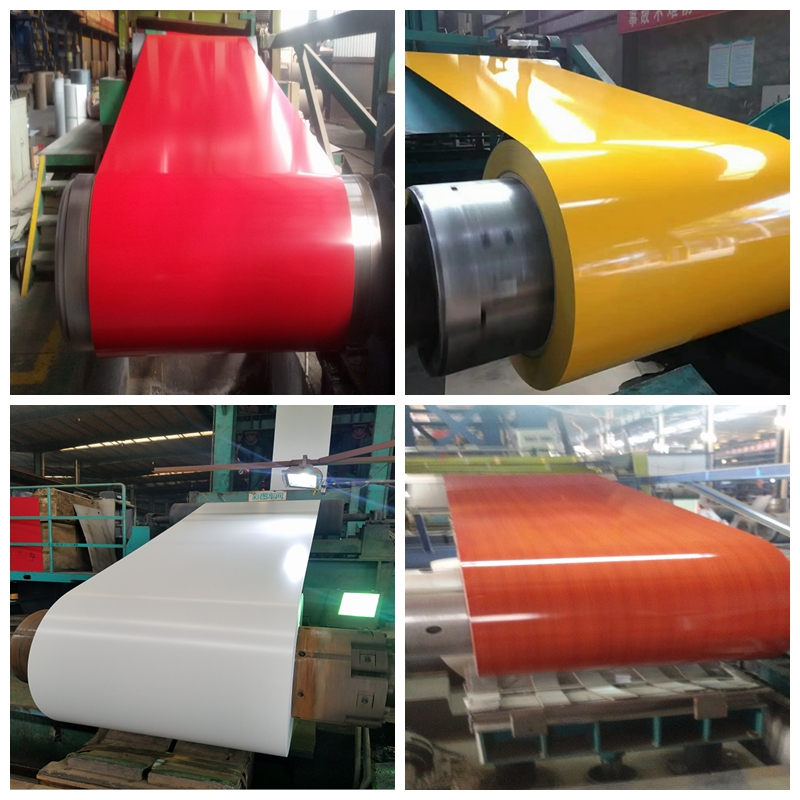

PPGI Photos
Pretreatment (including chemical degreasing and chemical conversion treatment), and then coated with a layer or multilayer organic coating, the substrate used for the pre-coated steel plate by GI Steel coils, GL steel coils and then baked and cured after the formation of products. Topcoat can be divided into polyester, silicone modified polyester, high durability of polyester (HDP), polyvinylidene fluoride (PVDF). In addition, we can also produce with PPGI/PPGL protective film, PPGI/PPGL printing steel, PPGI/PPGL matte steel, such as the pre-coated steel. Prefabricated steel is widely used in construction, home appliances and furniture
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please
send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best
price soon.
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please
send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best
price soon.
