Ral Color Galvalume Steel Coil G550 For Flange Plate

Ral Color Galvalume Steel Coil G550 For Flange Plate

Product Details:

Place of Origin: China
Brand Name: HUYI-GI
Certification: SGS , BV , ISO9001
Model Number: G550 , G450 ,G300

Payment & Shipping Terms:

Minimum Order Quantity: 25tons each thickness
Price: Negotiation
Packaging Details: water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel
Delivery Time: 15-35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Minimise Spangle Galvalume Steel Coil ,G550 Surface: Regular Spangle ,Minimise Spangle
Application: Roofing Sheets, Home Electrical Appliance, Structural Materials, Commercial Use, Industry. Width: 600mm-1500mm
Thickness: 0.12mm-2.5mm Zinc-coating: AZ20-AZ275
Standard: ASTM , AISI , GB , JIS , DIN Coil ID: 508mm/610mm
Highlight:

Ral Galvanised Steel Coil

,

Flange Plate Gi Steel Coil

,

G550 Aluzinc Steel Sheet

Product Description

ASTM Flange plate Minimise Spangle Galvalume Steel Coil G550



Specifications of galvalume steel coil :



Product Name
Galvalume Steel Coil/GL Coil
Metal Base
DX51D,DX52D,SGCC,SGCH,Q195,Q235,Q345,DC01-06, G550
Thickness
0.12-2.5mm
Width
600mm to 1500mm
Length
According to Customer’s Requirement or Cut into Sheet
Zinc Coating
20-275g/m2
Spangle Large,Regular,Small,Zero Spangle
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Color Series
RAL Color Number
Coil Weight
5MT—-8MT/Coil
Coil Internal Diameter
508—-610mm
Application
Roofing Sheets, Home Electrical Appliance, Structural Materials, Commercial Use, Industry.
Package
Standard Export Package (Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet)
Place of Origin
China
Standard
ASTM, DIN, GB, JIS, SGS


Introduction of galvalume steel coil :



The galvalume & aluzinc steel sheet in coil uses the cold-rolled steel sheet as a substrate and solidified by 55% aluminum, 43.4% zinc and 1.6% silicon at 600 °C. It combines the physical protection and high durability of aluminum and the electrochemical protection of zinc. It is also called aluzinc steel coil.



Advantage of galvalume steel coil :



  • Strong corrosion resistance, 3 times that of galvanized steel coil.
  • The density of 55% aluminum is smaller than the density of zinc. When the weight is the same and the thickness of the plating layer is the same, the area of the galvalume steel sheet is 3% or larger than that of the galvanized steel sheet.

Surface Treatment Of Galvalume Steel Coil / Sheet:



Item Classification Symbol
Coating type Al-Zn alloy AZ
Surface finish Regular spangle R
Minimized spangle M
Skin passed S
Surface treatment Chromate passivated c
Non-chromate passivated C5
Chromate passivated + oiling CO
Non-chromate passivated+oiling CO5
Anti-fingerprint N
Non-chromate anti-fingerprint N5
Non-chromate high weather resistance anti-fingerprint NW
Oiling 0
No treatment U



Detailed Steps Of The Galvalume Steel Sheet Processing



Step 1:



Pre-treatment: After the cold-rolled coil arrives in the galvalume workshop, after passing through the uncoiler, through the degreasing section and the reduction furnace, the steel coil is cleaned and its components are reduced to the extent that it can be galvanized.

Step 2:



Central section: The most critical technology is this step. After passing through the zinc pot, a layer of zinc layer is plated on the surface of the steel plate. After coming out of the zinc pot, it is cooled and shaped by the cooling tower.

Step 3:



Post-processing: The steel plate finally comes to the post-processing stage after various processes. After finishing, straightening and passivation, and finally coiling.



Galvalume Steel Coil Features:

  • Thermal Reflection:

People use it as material for heat-insulation for its thermal reflectivity as high as twice the galvanized steel sheet.

  • Heat-resistance:

The aluzinc steel sheet could bear above 300℃ high temperature with its good performance in heat-resistance, quite similar to the aluminized steel sheet’s performance in oxidation-resistance under high temperature. It is often used for chimney pipe, oven, illominator, and fluorescent lamp cover.

  • Corrosive-resistance performance:

The essential of galvalume steel coil’s corrosive-resistance lies at aluminium’s protective property. Once the zinc come under abrasion, the aluminium would form a layer of densified oxidized aluminium, preventing the interior from further corrosion.

  • Economical:

The density of 55%AL-Zn is smaller than Zn, therefore, with the same weight and thickness of coating, the galvalume steel sheet is 3% larger in area than that of galvanized steel sheet.

  • Easily painted:

There is perfect adhesiveness between galvalume sheet and paint, saving the process of pre-treatment and weathering for painting work.

The coating material on the galvalume steel sheet is outstanding in its adhesiveness, which could be directly tarring on the advertising board and commonly used board with no pre-treatment such as weathering process.

  • The galvalume steel sheet’s surface is luxury in silver colored appearance.
  • Galvalume steel sheet and galvanized steel sheet are similar in performance of processability and painting.

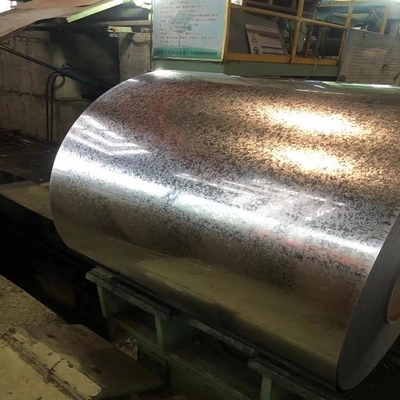

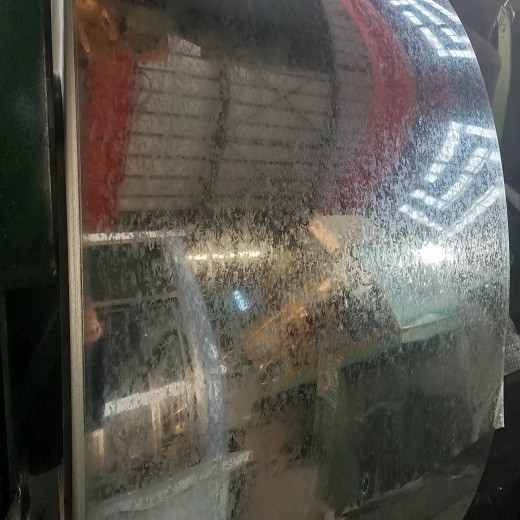

Here are the pictures of our Mill as reference :



Ral Color Galvalume Steel Coil G550 For Flange Plate 0Ral Color Galvalume Steel Coil G550 For Flange Plate 1
