30mm-1500mm Prefinished Steel  Galvalume Roofing Sheet AFP

30mm-1500mm Prefinished Steel Galvalume Roofing Sheet AFP

Product Details:

Place of Origin: China
Brand Name: HUYI-GL
Certification: SGS , BV , ISO9001
Model Number: G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH

Payment & Shipping Terms:

Minimum Order Quantity: 25tons each thickness
Price: USD/MT
Packaging Details: water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel
Delivery Time: 15-35 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: ASTM , AISI , GB , JIS , DIN , 0.12mm-2.0mm Thickness Color Coated 55% Galvalume Steel Coil AFP/ Non AFP Surface: Regular Spangle ,Minimise Spangle
Width: 30mm-1500mm Thickness: 0.12mm-2.0mm
Zinc-coating: AZ30-AZ150 Standard: ASTM , AISI , GB , JIS , DIN
Shape: Coil / Flat /Corrugated Coil ID: 508mm/610mm
Surface Treatment: Color AFP Or Non-AFP Application: Decoration , Flange Plate , Ship Plate
Highlight:

1500mm Galvalume Roofing Sheet

,

AFP Galvalume Roofing Sheet

,

1500mm prefinished galvalume steel sheets

Product Description

30mm-1500mm Galvalume steel coil Roofing Sheet AFP



Galvalume steel coil introduction:



Hot-dip aluzinc steel sheet is substrated on cold rolled steel(CRC)in various strength and specification Coating composition is 55%aIuminum in weight ratio.43 4%zinc.and 1 5%silicon with excellent corrosion and heat resistance performance.

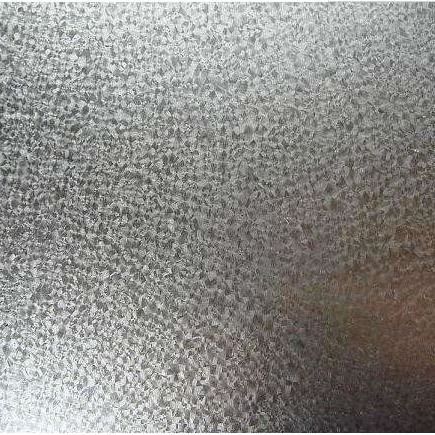

The surface of galvalume steel coil features a unique star-shape, smooth and plain, with silver color as primary colour. Its special plating structure could be well corrosive -proof.

Its lifespan normally could reach 25 years. It is as well in heat-resistant as used in 315℃ high temperature; The plating and paint film with good adhesion would be excellent in processability including punching press, shearing, and welding, etc., and also it performs well in electro-conductivity.



The advantage of galvalume steel coil :



1. Strong corrosion resistance, 3 times that of galvanized steel coil .
2. The density of 55% aluminum is smaller than the density of zinc. When the weight is the same and the thickness of the plating layer is the same, the area of the galvalume steel sheet is 3% or larger than that of the galvanized steel sheet.



The specifications of galvalume steel coil:



Product name Galvalume Steel Sheet in Coil
Material CGCC, DX51D,Q195,Q235
Grade SGCC,DX51D+Z
Alu-Zinc Coating 30-150g/m2
Thickness 0.12-2.0 mm
Width 30-1500 mm
Coil ID 508/610mm
Coil weight 3-8tons
Surface Structure Mini/Big Spangle
Surface Treatment Anti-Finger printing ,Chromated, oiled/ non-oiled
Package standard export package (Detailed picture is as follows)
Hardness soft (normal), hard, full hard(G300-G550)
HS code 721049
Country of origin China
Business type Supplier and manufacturer



Roofing sheets specification for  Galvalume steel coil :

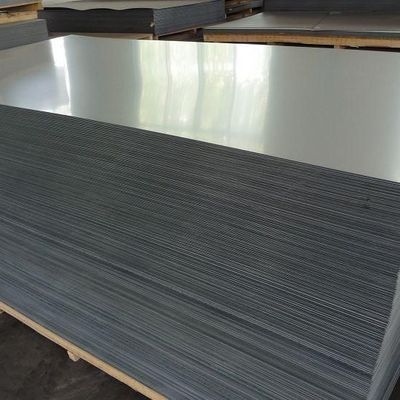

30mm-1500mm Prefinished Steel  Galvalume Roofing Sheet AFP 0         30mm-1500mm Prefinished Steel  Galvalume Roofing Sheet AFP 1





FAQ:



1. What are your company's main products ?
A: Our main products are galvanized steel,galvalume steel,pre-painted galvanized steel,pre-painted galvalume steel, corrugated steel,cold roll steel,hot roll steel,angle bar,C channel,Aluminum bubble foil,fiber cement....

2. How do you control quality ?
A: Mill Test Certification is supplied with shipment, Third Party Inspections are all available.

3. What are the advantages of your company ?
A: We focus on maximum product performance and customer experience with scientific minimum cost,you will get most cost-effective goods.
