1500mm Width Color Coated Galvalume Steel Coil ASTM A653
Product Details:
| Place of Origin: | China |
| Brand Name: | HUYI-GI |
| Certification: | SGS , BV , ISO9001 |
| Model Number: | G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | Negotiation |
| Packaging Details: | water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel |
| Delivery Time: | 15-35 days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 tons per month |
|
Detail Information |
|||
| Product Name: | 30mm-1500mm Width GL Blue / Color Coated 55% Galvalume Steel Coil | Application: | Decoration , Flange Plate , Ship Plate |
|---|---|---|---|
| Width: | 30mm-1500mm | Thickness: | 0.12mm-2.0mm |
| Zinc-coating: | AZ30-AZ150 | Standard: | ASTM , AISI , GB , JIS , DIN |
| Shape: | Coil / Flat /Corrugated | Coil ID: | 508mm/610mm |
| Surface Treatment: | Blue AFP Or Non-AFP | Surface: | Regular Spangle ，Minimise Spangle |
| Highlight: | Color Coated Galvalume Steel Coil,1500mm Width Galvalume Steel Coil,ASTM A653 Galvalume Steel Coil |
||
Product Description
30mm-1500mm Width GL Blue / Color Coated 55% Galvalume Steel Coil
Galvalume Steel Coil introduction:
Galvalume steel is carbon steel coated with an aluminum-zinc alloy using a continuous hot-dip process, combining the corrosion protection and high-temperature resistance of aluminum with the formability and galvanic protection of zinc.The aluminized zine silicon steel plate is a structure of aluminum zinc alloy. It is made up of 55% aluminum, 43.4% zinc and 1.6% silicon at 600 C. The whole structure is composed of aluminum, one iron, one silicon and one zinc, forming a compact four element crystal. Heat plated aluminum, zinc and silicon (GL) products, with various strength and thickness of the cold rolled steel plate as the base material, on the surface of the strip, heat plating aluminum (AL55%), zinc (ZN43.4%), silicon (S11.6%) alloy, have excellent corrosion resistance.Cold rolled steel plate has excellent plate shape, surface quality, high flatness, high surface finish, easy to coating processing and many varieties.
Galvalume Steel Coil application range:
Construction: the roof of the building, the exterior wall, the garage door, the fence, the shutter.
Home appliance industry: oven, air conditioning and ventilation system outside the cover, solar water heater, electrical components.
Automobile industry: automobile muffler, exhaust pipes and a catalytic converter heat shield, the bottom part of the car body, road signs.
Industrial instrumentation: electric control cabinet, industrial refrigeration cabinet, vending machine.
Galvalume Steel Coil specifications:
| Products | 55% Blue Galvalume steel coil |
| Standard | ASTM A653 , JIS G3321 , GB/T3830-2006 |
| Grade | G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH |
| Thickness | 0.12mm-2.0mm |
| Width | 30mm-1500mm |
| Base Metal | Cold Rolled Steel |
| AL-Zinc Coating | AZ30-150g/sqm |
| Coil Internal Diameter | 508mm/610mm |
| Surface Treatment | Chromating , Oiled |
| Tolerance | Thickness:+/-0.05mm , Width:+5/-2mm , Total Quantity:+/-10% , Zinc Coating:+/-10% |
| Surface Finish | Regular spangle ,Minimise spangle |

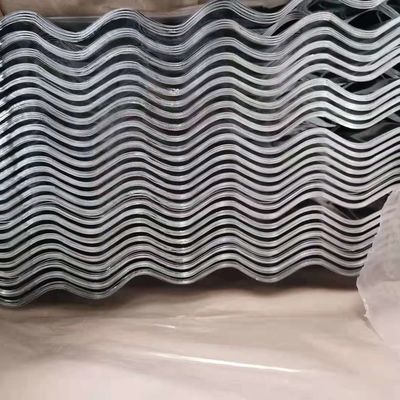

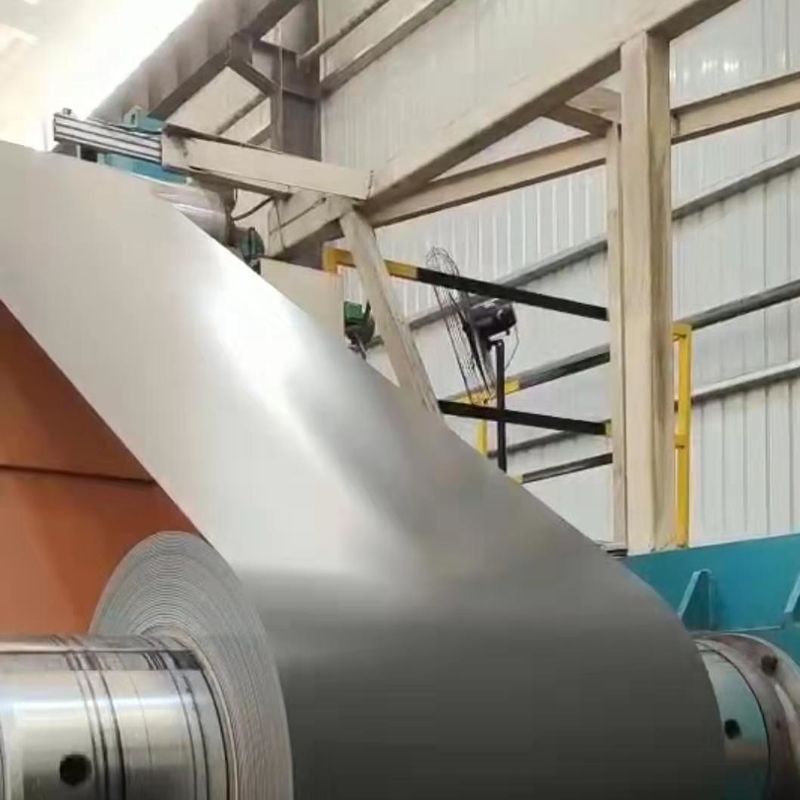

Galvalume steel loading pictures:
