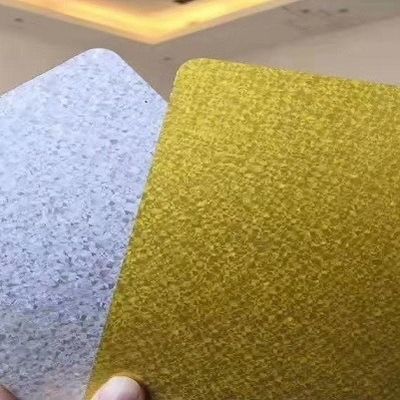

Under 600mm GL Pre Painted Galvalume Sheets ASTM

Under 600mm GL Pre Painted Galvalume Sheets ASTM

Product Details:

Place of Origin: China
Brand Name: HUYI-GL
Certification: SGS , BV , ISO9001
Model Number: G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH

Payment & Shipping Terms:

Minimum Order Quantity: 25tons each thickness
Price: USD/MT
Packaging Details: water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel
Delivery Time: 15-35 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: ASTM , AISI , GB , JIS , DIN , Under 600mm Width Punching 55% Galvalume Steel Coil /Metal /Perfoated GL Application: Decoration , Flange Plate , Ship Plate
Width: Under 600mm Thickness: 0.12mm-2.0mm
Zinc-coating: AZ30-AZ150 Standard: ASTM , AISI , GB , JIS , DIN
Shape: Coil / Flat /Corrugated Coil ID: 508mm/610mm
Surface Treatment: Color AFP Or Non-AFP Surface: Regular Spangle ,Minimise Spangle
Highlight:

600mm pre painted galvalume sheets

,

HUIYI GL prepainted steel coil

,

SGLCC pre painted galvalume sheets

Product Description

ASTM , AISI , GB , JIS , DIN , Under 600mm Width Punching 55% Galvalume Steel Coil /Metal /Perfoated GL



Introduction:



Galvalume steel coil , as a new concept product of HUIYI ,is widely used in various kinds of industry , such as construction , light industry , automobile , agriculture , animal husbandry, fishery and business.Hot-dip aluzinc steel sheet is substrated on cold rolled steel(CRC)in various strength and specification Coating composition is 55%aIuminum in weight ratio.43 4%zinc.and 1 5%silicon with excellent corrosion and heat resistance performance.Galvanized sheet is mainly used for making roof, door and window, roller shutter door, and suspended skeleton in building industry, vehicle shell, chassis, door, trunk lid, oil tank and fender in auto industry, steel sash blank and color coated sheet substrate in metallurgy industry, and refrigerator base, shell, refrigerating chamber, kitchen equipment and other parts in electrical equipment industry



End products of  Galvalume Steel Coil:



1. GL Corrugated sheet

2. GL Ceiling

3. GL Floor sheet...

4. Perforated sheet/coil



Application range:



Construction: the roof of the building, the exterior wall, the garage door, the fence, the shutter.
Home appliance industry: oven, air conditioning and ventilation system outside the cover, solar water heater, electrical components.
Automobile industry: automobile muffler, exhaust pipes and a catalytic converter heat shield, the bottom part of the car body, road signs.
Industrial instrumentation: electric control cabinet, industrial refrigeration cabinet, vending machine.



Specification:



Products 55% Clear Galvalume steel coil
Standard ASTM A653 , JIS G3321 , GB/T3830-2006
Grade G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH
Thickness 0.12mm-2.0mm
Width 30mm-1500mm
Base Metal Cold Rolled Steel
AL-Zinc Coating AZ30-150g/sqm
Coil Internal Diameter 508mm/610mm
Surface Treatment Chromating , Oiled
Tolerance Thickness:+/-0.05mm , Width:+5/-2mm , Total Quantity:+/-10% , Zinc Coating:+/-10%
Surface Finish Regular spangle ,Minimise spangle

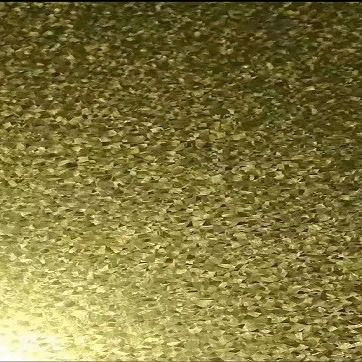

55% Galvalume Perforated Metal:



Under 600mm GL Pre Painted Galvalume Sheets ASTM 0            Under 600mm GL Pre Painted Galvalume Sheets ASTM 1





Under 600mm GL Pre Painted Galvalume Sheets ASTM 2            Under 600mm GL Pre Painted Galvalume Sheets ASTM 3
