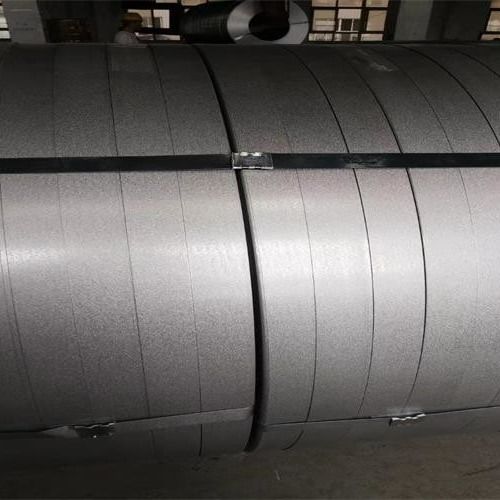

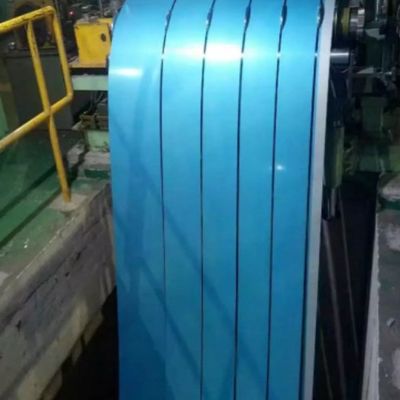

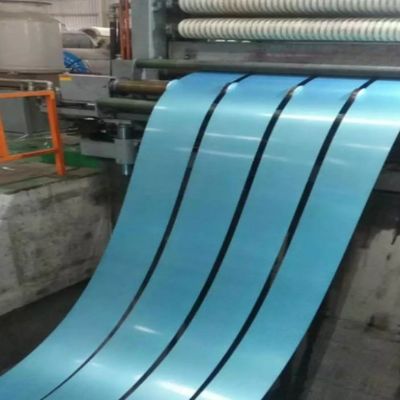

Slitting 55% Galvalume Steel Coil Non AFP DX52D+AZ

Slitting 55% Galvalume Steel Coil Non AFP DX52D+AZ

Product Details:

Place of Origin: China
Brand Name: HUYI-GL
Certification: SGS , BV , ISO9001
Model Number: G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH

Payment & Shipping Terms:

Minimum Order Quantity: 25tons each thickness
Price: USD/MT
Packaging Details: water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel
Delivery Time: 15-35 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Surface: Regular Spangle ,Minimise Spangle Application: Decoration , Flange Plate , Ship Plate
Width: Under 600mm Thickness: 0.12mm-2.0mm
Zinc-coating: AZ30-AZ150 Standard: ASTM , AISI , GB , JIS , DIN
Shape: Coil / Flat /Corrugated Coil ID: 508mm/610mm
Surface Treatment: Color AFP Or Non-AFP Product Name: Slitting 55% Galvalume Steel Coil AFP/ Non AFP /Slitting GL ,G550,G450,G300,Minimised Spangle,Anti-Finger Print
Highlight:

HUYI 0.12mm Galvalume Steel Coil

,

HUYI 610mm zincalume coil

,

DX52D+AZ Galvalume Steel Coil

Product Description

Slitting55%  Galvalume Steel Coil AFP/ Non AFP /Slitting GL ,G550,G450,G300,Minimised Spangle,

Anti-Finger Print



Hot Dip Galvanizing Production Process:

Raw materials (cold rolled steel coils) → uncoiling → cutting head and tail → welding → spraying by alkali liquor→scrubbing by alkali liquor→ electrolytic degreasing → water scrubbing → hot air drying → entry looper → reduction and annealing → hot dip galvanizing → zinc layer control (air knife) → cooling → finishing → stretching, bending and straightening → purification → drying → exit looper → coil unloading → coil weighing → packaging → warehousing



Products : 55% Clear Galvalume steel coil

Standard : ASTM A653 , JIS G3321 , GB/T3830-2006

Grade : G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH

Thickness : 0.12mm-2.0mm

Width : 30mm-1500mm

Base Metal : Cold Rolled Steel

AL-Zinc Coating : AZ30-150g/sqm

Coil Internal Diameter : 508mm/610mm

Surface Treatment : Chromating , Oiled

Tolerance : Thickness : +/-0.05mm , Width:+5/-2mm , Total Quantity:+/-10% , Zinc Coating:+/-10%

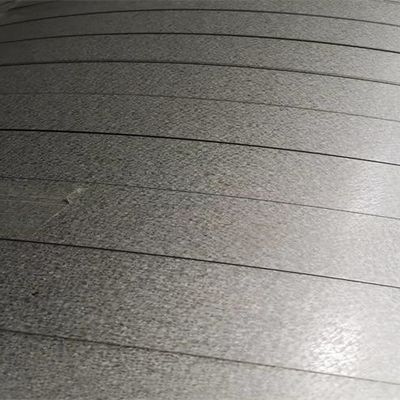

Surface Finish : Regular spangle ,Minimise spangle



End products of Slitting Galvalume Steel Coil:



1. GL Corrugated sheet

2. GL Ceiling

3. GL Floor sheet...



Roofing sheets specification for Galvalume steel coil :



Slitting 55% Galvalume Steel Coil Non AFP DX52D+AZ 0      Slitting 55% Galvalume Steel Coil Non AFP DX52D+AZ 1





Slitting 55% Galvalume Steel Coil Non AFP DX52D+AZ 2       Slitting 55% Galvalume Steel Coil Non AFP DX52D+AZ 3



Application range:



Construction: the roof of the building, the exterior wall, the garage door, the fence, the shutter.
Home appliance industry: oven, air conditioning and ventilation system outside the cover, solar water heater, electrical components.
Automobile industry: automobile muffler, exhaust pipes and a catalytic converter heat shield, the bottom part of the car body, road signs.
Industrial instrumentation: electric control cabinet, industrial refrigeration cabinet, vending machine.
