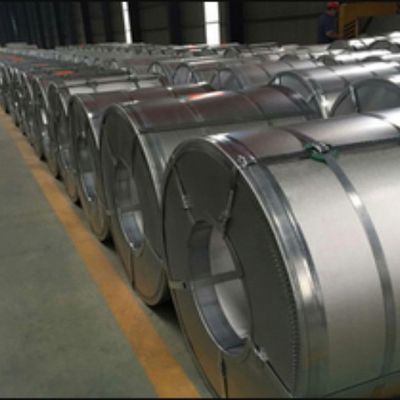

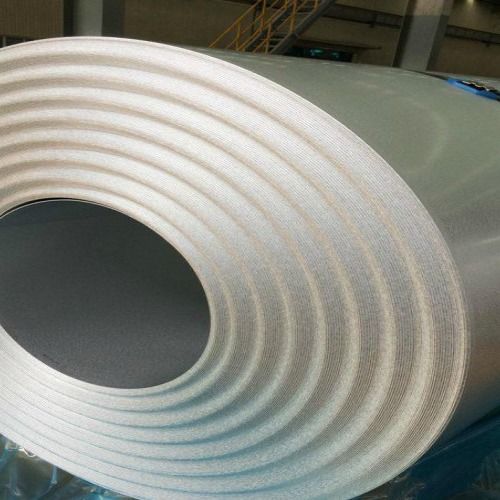

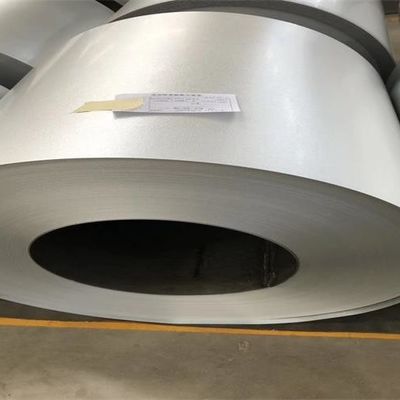

610mm Galvalume Steel Sheet Non AFP DX52D+AZ
Product Details:
Place of Origin: | China |
Brand Name: | HUYI-GL |
Certification: | SGS , BV , ISO9001 |
Model Number: | G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH |
Payment & Shipping Terms:
Minimum Order Quantity: | 25tons each thickness |
---|---|
Price: | USD/MT |
Packaging Details: | water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel |
Delivery Time: | 15-35 days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 5000 tons per month |
Detail Information |
|||
Surface: | Regular Spangle ,Minimise Spangle | Application: | Decoration , Flange Plate , Ship Plate |
---|---|---|---|
Width: | 30mm-1500mm | Thickness: | 0.12mm-2.0mm |
Zinc-coating: | AZ30-AZ150 | Standard: | ASTM , AISI , GB , JIS , DIN |
Shape: | Coil / Flat /Corrugated | Coil ID: | 508mm/610mm |
Surface Treatment: | Clear AFP Or Non-AFP | Product Name: | Clear AFP Galvalume Steel Coil / Non AFP Galvalume Steel Sheet ,G550,G450,G300,Minimised Spangle,Anti-Finger Print |
Highlight: | HUYI-GL 610mm galvalume steel sheet,HUYI-GL 610mm galvanized steel sheet roll,DX52D+AZ galvalume steel sheet |
Product Description
Clear AFP Galvalume Steel Coil / Non AFP Galvalume Steel Sheet ,G550,G450,G300,Minimised Spangle,Anti-Finger Print
Introduction:
Hot-dip aluzinc steel sheet is substrated on cold rolled steel(CRC)in various strength and specification Coating composition is 55%aIuminum in weight ratio.43 4%zinc.and 1 5%silicon with excellent corrosion and heat resistance performance.
Application range:
Construction: the roof of the building, the exterior wall, the garage door, the fence, the shutter.
Home appliance industry: oven, air conditioning and ventilation system outside the cover, solar water heater, electrical components.
Automobile industry: automobile muffler, exhaust pipes and a catalytic converter heat shield, the bottom part of the car body, road signs.
Industrial instrumentation: electric control cabinet, industrial refrigeration cabinet, vending machine.
Products | 55% Clear Galvalume steel coil |
Standard | ASTM A653 , JIS G3321 , GB/T3830-2006 |
Grade | G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH |
Thickness | 0.12mm-2.0mm |
Width | 30mm-1500mm |
Base Metal | Cold Rolled Steel |
AL-Zinc Coating | AZ30-150g/sqm |
Coil Internal Diameter | 508mm/610mm |
Surface Treatment | Chromating , Oiled |
Tolerance | Thickness:+/-0.05mm , Width:+5/-2mm , Total Quantity:+/-10% , Zinc Coating:+/-10% |
Surface Finish | Regular spangle ,Minimise spangle |
C Purlin for 55% Galvalume steel coil :
