GL Blue Galvanized Sheet Metal Coils Cold Rolled SGLCC
Product Details:
| Place of Origin: | China |
| Brand Name: | HUYI-GI |
| Certification: | SGS , BV , ISO9001 |
| Model Number: | G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | Negotiation |
| Packaging Details: | water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel |
| Delivery Time: | 15-35 days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 tons per month |
|
Detail Information |
|||
| Surface: | Regular Spangle ，Minimise Spangle | Application: | Decoration , Flange Plate , Ship Plate |
|---|---|---|---|
| Width: | 30mm-1500mm | Thickness: | 0.12mm-2.0mm |
| Zinc-coating: | AZ30-AZ150 | Standard: | ASTM , AISI , GB , JIS , DIN |
| Shape: | Coil / Flat /Corrugated | Coil ID: | 508mm/610mm |
| Surface Treatment: | Blue AFP Or Non-AFP | Product Name: | GL Blue /Color Coated 55%Galvalume Steel Coil / Cold Rolled ,G550,G450,G300,Minimised Spangle,Anti-Finger Print |
| Highlight: | GL Blue galvanized sheet metal coils,2mm pre painted galvalume sheets,SGLCC HUYI galvanized sheet metal coils |
||
Product Description
GL Blue /Color Coated 55% Galvalume Steel Coil / Cold Rolled ,G550,G450,G300,Minimised Spangle,Anti-Finger Print
Introduction:
Galvanized Steel Coils are produced through a process of metal coating which involves passing cold rolled coils through a kettle containing molten zinc. This process ensures adhesion of Zinc to the surface of the steel sheet. The Zinc Layer provides excellent corrosion resistance and prolong service life. Hot dip galvanized products are widely used in household appliances, transport, container manufacturing, roofing, base material for pre-painting, ducting and other construction related applications.Aluminized zinc silicon steel sheet is an important alloy material frequently used in daily life. The aluminized zine silicon steel plate is a structure of aluminum zinc alloy. It is made up of 55% aluminum, 43.4% zinc and 1.6% silicon at 600 C. The whole structure is composed of aluminum, one iron, one silicon and one zinc, forming a compact four element crystal. Heat plated aluminum, zinc and silicon (GL) products, with various strength and thickness of the cold rolled steel plate as the base material, on the surface of the strip, heat plating aluminum (AL55%), zinc (ZN43.4%), silicon (S11.6%) alloy, have excellent corrosion resistance.
Application range:
Construction: the roof of the building, the exterior wall, the garage door, the fence, the shutter.
Home appliance industry: oven, air conditioning and ventilation system outside the cover, solar water heater, electrical components.
Automobile industry: automobile muffler, exhaust pipes and a catalytic converter heat shield, the bottom part of the car body, road signs.
Industrial instrumentation: electric control cabinet, industrial refrigeration cabinet, vending machine.
| Products | 55% Blue Galvalume steel coil |
| Standard | ASTM A653 , JIS G3321 , GB/T3830-2006 |
| Grade | G550 , G450 , G300,DX51D+AZ,DX52D+AZ, SGLCC,SGLCH |
| Thickness | 0.12mm-2.0mm |
| Width | 30mm-1500mm |
| Base Metal | Cold Rolled Steel |
| AL-Zinc Coating | AZ30-150g/sqm |
| Coil Internal Diameter | 508mm/610mm |
| Surface Treatment | Chromating , Oiled |
| Tolerance | Thickness:+/-0.05mm , Width:+5/-2mm , Total Quantity:+/-10% , Zinc Coating:+/-10% |

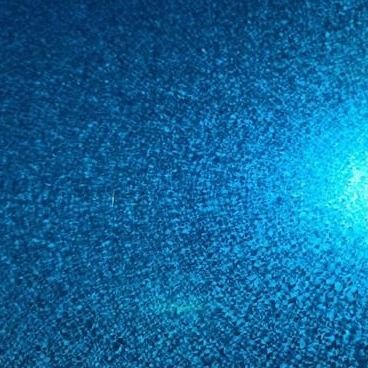

| Surface Finish | Regular spangle ,Minimise spangle |

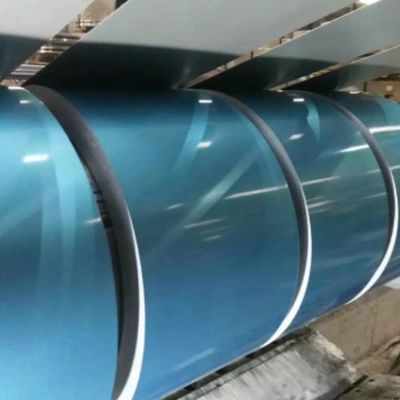

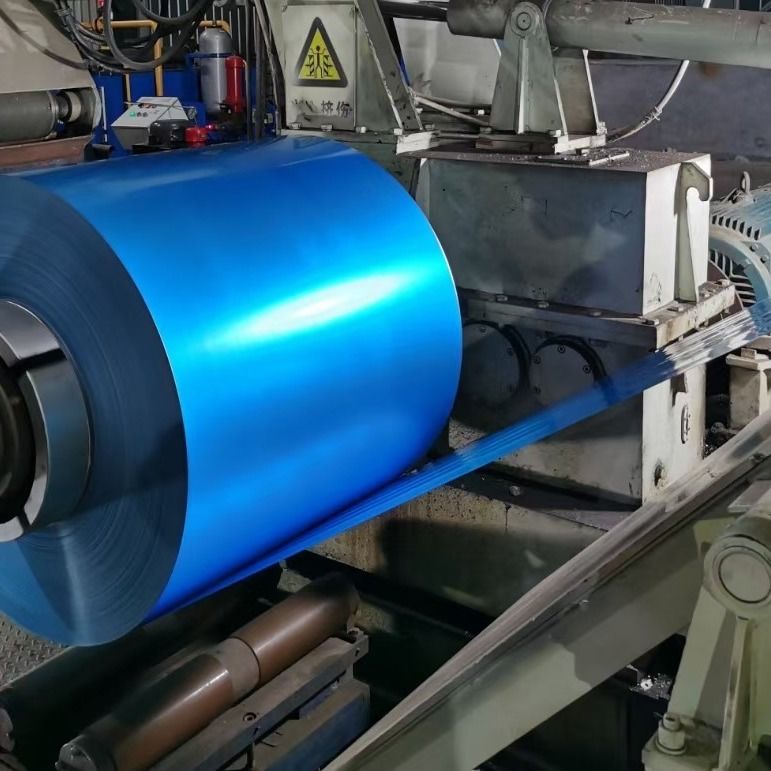

Galvalume steel loading pictures:
