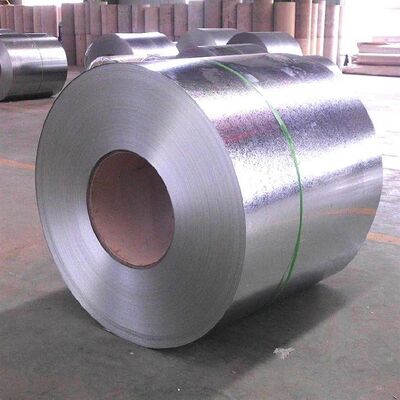

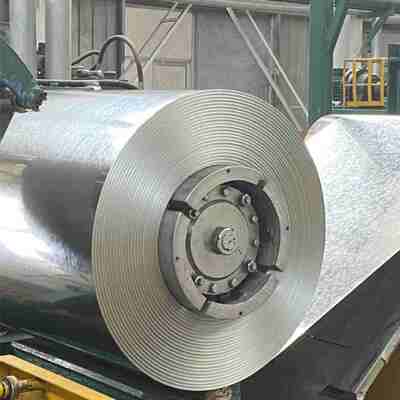

DX54D High Strength Galvanized Steel Coil for Automotive Deep-Drawing with 1000hrs Salt Spray Resistance
Product Details:
| Place of Origin: | China |
| Brand Name: | HuiYi-GI |
| Certification: | ASTM, EN |
| Model Number: | DX54D+Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25MT |
|---|---|
| Price: | Negotiation |
| Packaging Details: | VCI kraft paper + 0.3mm PE film + Steel-strapped pallets with edge guards |
| Delivery Time: | 15-30 Days |
| Payment Terms: | T/T,L/C,D/P |
| Supply Ability: | 5000MT/Month |
|
Detail Information |
|||
| Product Name: | Galvanized Steel Coil | Material: | High-Strength Steel Coil |
|---|---|---|---|
| Size: | (0.5-2.5)mm × (600-1600)mm | Tensile Strength: | 270-350 MPa |
| Yield Strength: | 140-240 MPa | Salt Spray Resistance: | 1,000hrs (ASTM B117) |
| Key Application: | Automotive Deep-Drawing Parts | Elongation (A80): | ≥ 36% |
| Highlight: | High Strength Galvanized Steel Coil,Automotive Deep-Drawing Galvanised Steel Coil,1000hrs Salt Spray Resistance DX54D Steel Coil |
||
Product Description
DX54D High Strength Galvanized Steel Coil for Automotive Parts Manufacturing
Our DX54D+Z High Strength Galvanized Steel Coil is engineered to meet the demanding formability and structural requirements of modern automotive parts manufacturing. As a hot-dip galvanized steel of the highest formability grade (FD), DX54D offers exceptional deep-drawing performance, allowing it to be shaped into complex, safety-critical components without cracking. The advanced galvanization process bonds a uniform zinc layer to the steel substrate, providing reliable sacrificial corrosion protection that extends the lifespan of automotive parts. Ideal for exposed body panels and structural components, this coil combines superior surface quality for excellent paintability with the strength needed for lightweight vehicle design. Certified to EN 10346 standards, it is the optimal choice for automotive manufacturers seeking consistency, durability, and performance.
Technical Parameters
| Parameter | Specification |
|---|---|
| Base Material | DX54D+Z (EN 10346) |
| Thickness | 0.5mm - 2.5mm (±0.03mm) |
| Width | 800mm - 1,600mm |
| Coating Weight | Z60-Z180 (60-180g/m²) |
| Surface Treatment | Regular spangle / Minimized spangle / Skin-passed |
| Elongation (A80) | ≥ 36% |
| Coil ID | 508mm / 610mm |
| Coil Weight | 3 - 12 Tons |
Applications
- Exterior Body Panels: Door outer panels, hoods, fenders, and trunk lids requiring excellent formability and a premium painted surface.
- Structural Components: Reinforcements, cross-members, and chassis parts that demand high strength and impact resistance.
- Inner Body Panels: Complex-shaped door inner panels, floor pans, and wheel arches formed through deep-drawing processes.
- Seat Frames & Safety Parts: Components where a combination of strength, ductility, and corrosion resistance is critical.
Customization Options
- Zinc Coating & Surface: Adjustable coating weights (e.g., Z90 for general parts, Z180 for enhanced protection). Choice of surface finish for paint adhesion or aesthetic needs.
- Dimensions: Custom thickness, width, and length (cut-to-length) tailored to your specific part design and production line.
- Mechanical Properties: Properties can be tuned within the grade specification to suit particular forming or strength requirements.
- MOQ: 15 tons (standard specifications), 25 tons (customized orders).
Packing and Shipping
Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Quality Assurance: Pre-shipment inspection and moisture indicators for transit protection.
FAQ
What's the payment term for Galvanized Steel Coil?
30-50% TT in advance (based on your quantity), 70% balance against copy B/L in 7 workdays.
When will you send BL copy?
In 3-5 workdays after shipment date.
When will you send original Documents?
In 3-5 workdays when we get the balance.
What is the lead time for samples?
Samples are available in 7-10 days after detailed requirements confirmation.
What is your working time?
Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.
