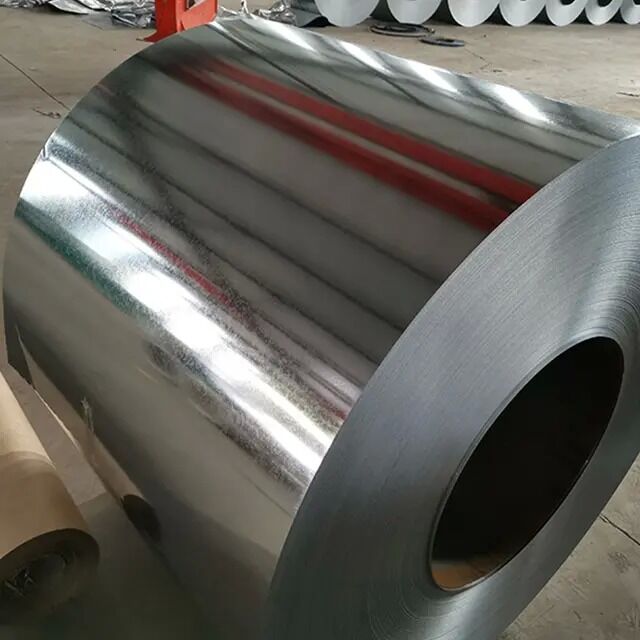

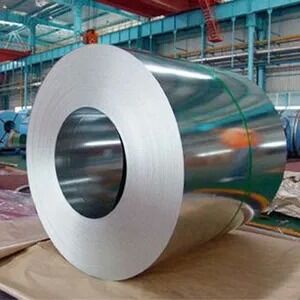

DX51D Economical Galvanized Steel Coil For Temporary Construction Barriers
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HUIYI-GI |
| Certification: | EN 10346, ASTM A653, ISO 9001 |
| Model Number: | Galvanized Steel Coil |
| Document: | HUIYI CATALOGUE.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 Tons |
|---|---|
| Price: | Negotiated Price, USD/MT |
| Packaging Details: | Standard exporting package , wrapped with waterproof paper. Then after fully wrapped with high density PE film. Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical. |
| Delivery Time: | 15-45DAYS |
| Payment Terms: | L/C,T/T,D/P |
| Supply Ability: | 5000 tons per month |
|
Detail Information |
|||
| Product Name: | Galvanized Steel Coil | Thickness: | 0.4 - 5.0mm |
|---|---|---|---|
| Width: | 600mm - 1500mm | Coating: | 40g/㎡-300g/㎡ |
| Coil Weight: | 3 - 8 Tons | Yield Strength (ReH): | 160 – 300 MPa |
| Tensile Strength (Rm): | 270 – 500 MPa | Key Feature: | Cost-Effective 1‑3 Year Corrosion Protection |
| Highlight: | DX51D galvanized steel coil,economical galvanized steel coil,temporary construction barrier steel coil |
||
Product Description
| Product Type | Coil / Sheet / Strip |
|---|---|
| Standard | ASTM, JIS, EN |
| Thickness | 0.4 - 5.0mm |
| Width | 600mm - 1500mm |
| Zinc Coating | 40 - 300 g/m² |
| Inner Diameter | 508/610mm |
| Surface Treatment | Chromated Passivation, Oiled, Anti-Fingerprint |
| Spangle | Zero / Small / Regular / Large |
· Temporary Construction Barriers: Fencing panels for residential and commercial job sites, including starter units, add‑on units, and connector components used to secure boundaries and manage access.
· Temporary Road Safety Fencing: Crowd‑control barriers, short‑term road closures, and demo fencing at events such as trade fairs, concerts, and sports venues.
· Site Security & Hoarding: Reusable fencing solutions for construction sites, utility work zones, and public infrastructure projects where temporary isolation and access control are needed.
· Portable Modular Fencing: Lightweight panels for schools, playgrounds, and event management that can be easily installed, moved, and removed as project conditions change.
Triple-Shield Packaging
VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
Global Logistics
FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Quality Assurance
Pre-shipment inspection and moisture indicators for transit protection.
Do you provide samples?
Yes, for regular sizes sample is free, buyer need to pay freight cost.
How can I get a quotation?
You can leave us message, and we will reply in time. And you can also find our contact details on the Contact page.
How long is the delivery time?
It depends on the order quantity, normally the delivery time takes around 15-30 working days. Please kindly contact us before ordering.
