Pre Painted Galvanized Steel Coil Construction Roofing Materrial High Strength
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PPGI---HUIYI |
| Certification: | SGS,ISO,BV |
| Model Number: | CGCC,CGLCC, CGCH , G550,G400,G450,DX51D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 tons |
|---|---|
| Price: | USD/MT |
| Packaging Details: | Standard exporting package.wrapped with waterproof paper，high density PE film，iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical |
| Delivery Time: | 20-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 tons per month |
|
Detail Information |
|||
| Product Name: | Prepainted Galvanized Steel | Surface Treatment: | Coated，galvanised |
|---|---|---|---|
| Thickness: | 0.25mm，0.32mm，0.62mm | Width: | 914mm，1219mm，etc. |
| Material: | Galvanized Steel Coil | Application: | Construction, Rooofing |
| Coil ID: | 508 & 610MM | Coil Weight: | 3-8 Tons |
| High Light: | Roofing Galvanized Steel Coil,Construction Prepainted Galvanized Steel,Pre Painted Galvanized Steel Roll |
||
Product Description
Pre Painted Galvanized Steel Coil Construction Roofing Materrial High Strength
Pre-painted galvanised steel coil introduction:
PPGI is the abbreviation of Pre-painted galvanised steel coi typically with a hot dip Al-zinc coated steel substrate. It is made from the base metal cold rolled steel coil then undergone the process of coating an alloy of aluminium and zinc with the usual rate of 55% Al, 43.5% Zn,1.5% Si and painted with various painting types according to customers’ requirements.
HUIYITM Color coated steel is the substrate after surface pretreatment (degreasing, phosphating, chromate passivation treatment) and then coated with roll coating, after baking and cooling products. Due to its paint coating , it performances better in corrosion compared With GI and GL .
Pre-painted galvanised steel coil specifications :
Standard : JIS G3312-1998 , ASTM A755 , GB / T12754 - 2006
Grade : Cold Rolled Steel / Galvanized Steel / Galvalume Steel
Base Metal : Cold Rolled Steel / Galvanized Steel / Galvalume Steel
Material Thickness : Normally 0.15 -1.5 mm
Width : 30 - 1500 mm ( Mainly in 914 mm ,1000 mm , 1219 mm and 1250 mm )
Coating : PE / PVDF / SMP
Coating Thickness : Min. Single Side - 50 g / sqm Max. Single Side - 275 g / sqm
Top Painting : 15 - 35 micrometer
Back Painting : 5 - 25 micrometer
Surface Finished Color : According To RAL Standard
Packing Condition : Seaworthy
Product Application of prepainted galvanised steel :
| Buildings And Constructions | Workshop , Warehouse , Corrugated Roof And Wall , Rainwater , Drainage Pipe , Roller Shutter Door |
| Electrical Appliance | Refrigerator , Washer , Switch Cabinet , Instrument Cabinet , Air Conditioning , Micro - wave Oven , Bread Maker |
| Furniture | Central Heating Slice , Lampshade , Book Shelf |
| Carrying Trade | Exterior Decoration Of Auto And Train , Clapboard , Container , Insulation Board |
| Others | Writing Panel , Garbage Can , Billboard , Timekeeper , Typewriter, Instrument Panel , Weight Sensor , Photographic Equipment |

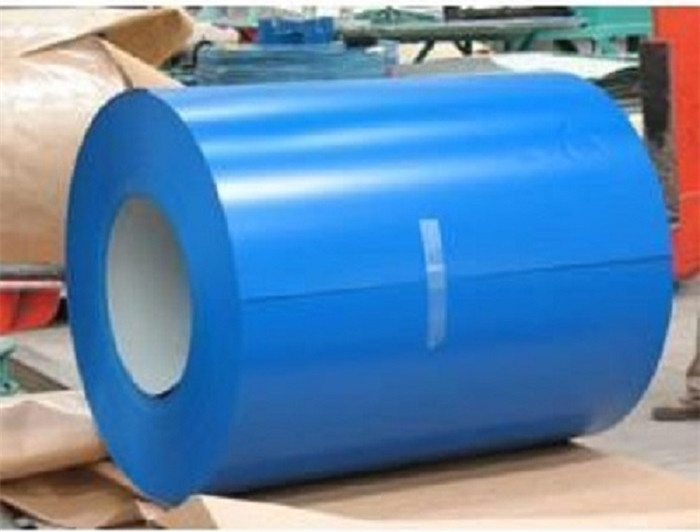

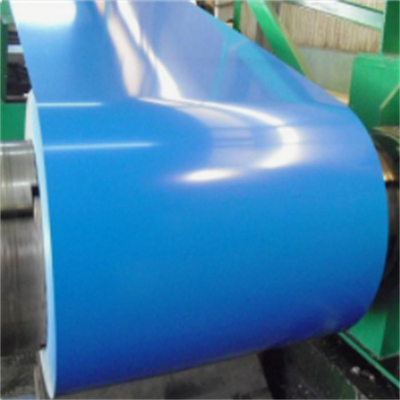

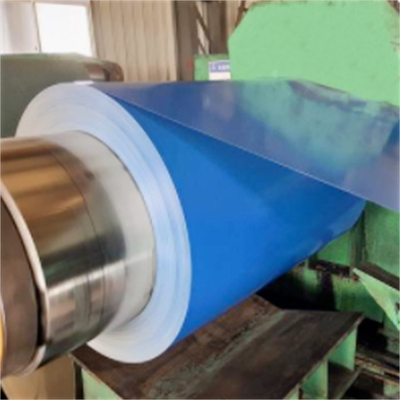

Here are the pictures of our Mills about Pre-painted galvanised steel coil :

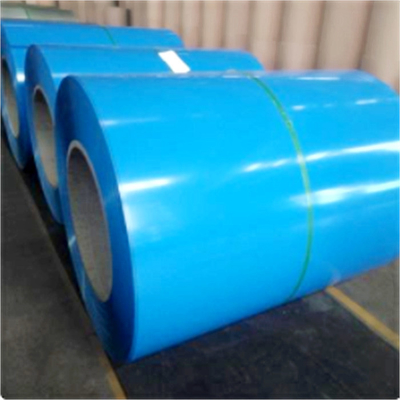

Loading pictures :
FAQ
1. How to make sure your quality?
A: We have experienced inspector to check each order before production,if can not reach customer's
quirements,we won't export to our clients.
2. Which contries does your company export to?
A: We have exported more than 20contries until now .
Asia: Brunei,Malaysi,Korea, Singapore, Vietnam, Thailand, Burma, India, Pakistan, Philippines,
Bangladesh, Nepal and Sri Lanka,Jordan, Israel, Saudi Arabia, Iraq, Iran,
Syria, Lebanon, UAE, Yemen
Europe: Romania, Turkey, Greece
Africa: Egypt, Algeria, Nigeria, Ghana, Sudan, Cameroon
Oceania: Australian
3. Hour about your experience?
A: We have exported steel products more than 6years, know all kinds of steel products very well And
know our customers' requirements very well.We can always grasp the market and suggest our clients to
order at the appropriate time.
