Pre-Painted Galvanized Steel Coil Construction Roofing Materrial High Strength

Pre-Painted Galvanized Steel Coil Construction Roofing Materrial High Strength

Product Details:

Place of Origin: CHINA
Brand Name: PPGI---HUIYI
Certification: SGS,ISO,BV
Model Number: CGCC, G550, G400, G450

Payment & Shipping Terms:

Minimum Order Quantity: 22-25 tons
Price: USD/MT
Packaging Details: Standard exporting package.wrapped with waterproof paper,high density PE film,iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical
Delivery Time: 20-35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Prepainted Galvanized Steel Thickness: 0.25mm, 0.32mm, 0.62mm
Width: 914mm, 1219mm, Etc. Surface Treatment: Coated, Galvanised
Coil ID: 508/610MM Coil Weight: 3-8 Tons
Front Paint Coating: 15-35um Type Of Substrate: PPGI Coil
Highlight:

High Strength Galvanized Steel Coil

,

Pre-Painted Galvanized Steel Coil

,

Galvanized Steel Coil PPGI Coating

Product Description

Pre-painted galvanised steel coil introduction



PPGI, or Pre-Painted Galvanized Iron, is a coated steel product widely used in construction and manufacturing. It consists of a galvanized iron sheet coated with paint or other protective layers to enhance durability and aesthetics. The process involves cleaning, treating, and applying multiple layers of paint, followed by curing for a smooth, durable finish.





HUIYITM Color coated steel is the substrate after surface pretreatment (degreasing, phosphating, chromate passivation treatment) and then coated with roll coating, after baking and cooling products. Due to its paint coating , it performances better in corrosion compared With GI and GL .





Pre-painted galvanised steel coil specifications



Standard :   JIS G3312-1998 , ASTM A755 , GB / T12754 - 2006
Base Metal :   Cold Rolled Steel / Galvanized Steel
Material Thickness :   Normally 0.15 -1.5 mm
Width :   300 - 1500 mm ( Mainly in 914 mm ,1000 mm , 1219 mm and 1250 mm )
Coating :   PE / PVDF / SMP
Coating Thickness :   Min. Single Side - 50 g / sqm Max. Single Side - 275 g / sqm
Top Painting :   15 - 35 micrometer
Back Painting :   5 - 25 micrometer
Surface Finished Color :   According To RAL Standard
Packing Condition :   Seaworthy







Product application of prepainted galvanised steel :



Buildings And Constructions   Workshop , Warehouse , Corrugated Roof And Wall , Rainwater , Drainage Pipe , Roller Shutter Door
Electrical Appliance   Refrigerator , Washer , Switch Cabinet , Instrument Cabinet , Air Conditioning , Micro - wave Oven , Bread Maker
Furniture   Central Heating Slice , Lampshade , Book Shelf
Carrying Trade   Exterior Decoration Of Auto And Train , Clapboard , Container , Insulation Board
Others   Writing Panel , Garbage Can , Billboard , Timekeeper , Typewriter,  Instrument Panel , Weight Sensor , Photographic Equipment

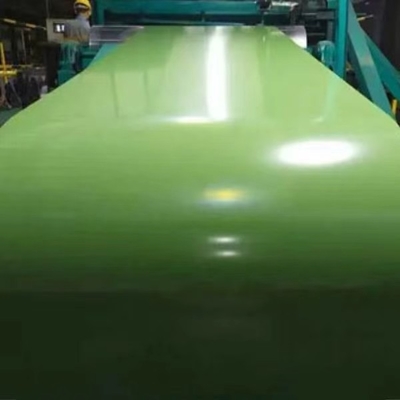

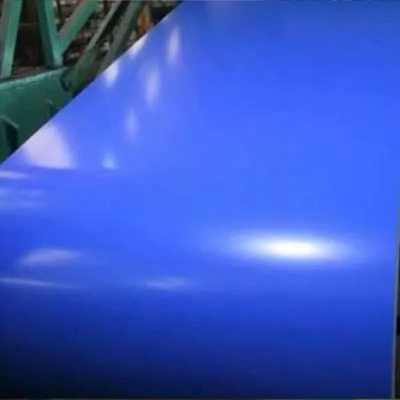

Pre-Painted Galvanized Steel Coil Construction Roofing Materrial High Strength 0

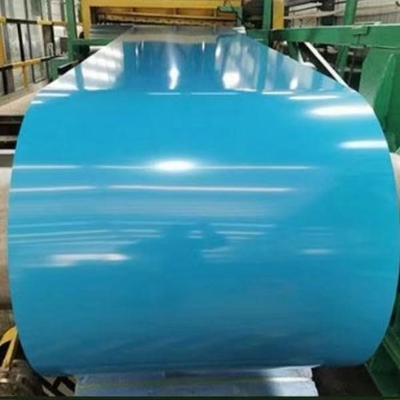

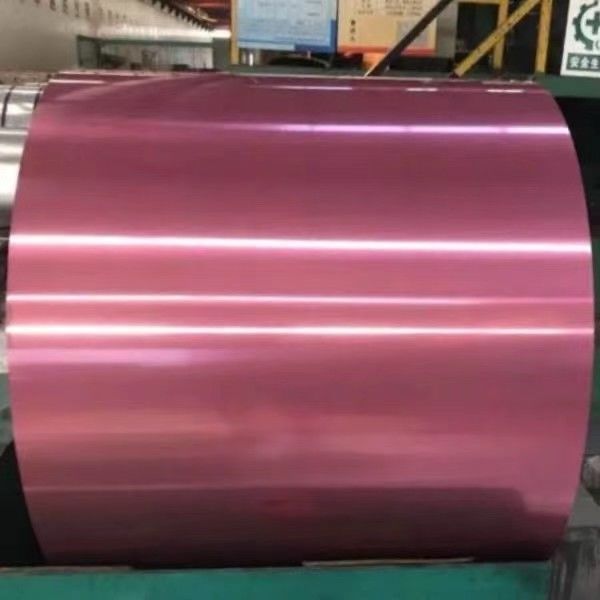

Pre-Painted Galvanized Steel Coil Construction Roofing Materrial High Strength 1



FAQ



1. What is pre-painted galvanized steel?

A pre-painted steel product generally consists of three layers: a steel sublayer with a zinc-based coating, an undercoat called primer and a layer of surface paint called finishing coat. The sublayer directly affects the installation of the product and its resistance to corrosion.



2. What are the advantages of pre painted steel?Durability: By nature, steel is a strong, robust material. Adding a painted layer makes a workpiece more resistant to scratches, dents, moisture, ultraviolet radiation, pollution, and other forms of damage. This heightened level of durability makes prepainted steel perfect for hard-wearing
3. How long does painted steel last?
Sun, heat, wind and weathering are constants that result in paint typically requiring touch-up and replacement in 12-15 years, costing far more than galvanizing over the intended life of the project.
