Z120 Hard Galvanized Steel Coil Sheet For Building Material

Z120 Hard Galvanized Steel Coil Sheet For Building Material

Product Details:

Place of Origin: China
Brand Name: HUIYI-GI
Certification: SGS,BV,ISO9001
Model Number: SPCC,SGCC,SGCD,DX51/52/53/54D+Z,Q195/215/235 And Etc

Payment & Shipping Terms:

Minimum Order Quantity: 25tons each thickness
Price: USD/MT
Packaging Details: Standard exporting package.wrapped with waterproof paper.Then after fully wrapped with high density PE film. Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical.
Delivery Time: 15-35days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: ASTM, AISI, GB, JIS, DIN , 0.11-6.0mm Thickness Hot-dip Galvanized Steel Coil/Sheet,Minimise Spangle Application: Decoration, Flange Plate, Ship Plate,
Width: 600-1100mm Thickness: 0.12-0.8mm
Zinc-coating: Z20-Z120 Standard: ASTM, AISI, GB, JIS, DIN
Shape: Coil/sheet Coil ID: 508mm/610mm
Surface Treatment: Oiled/un-oiled ,chromated Coil Weight: According To Requirements
Highlight:

Z120 Hard Steel Coil Sheet

,

Galvanized Cold Rolled Steel Coil

,

Galvanized Steel Coil Sheet For Building

Product Description

Full hard Galvanized Steel Coil Sheet Zero Spangle using for building material



Specifications of galvanised steel coil / sheet :



Thickness 0.12mm-0.8mm
Width 600~1100mm
Length 600~1100mm
Grade DX51D+AZ
DX52D+AZ
DX53D+AZ
DX54D+AZ
DX56D+AZ
DX57D+AZ
CS A
CS B
CS C
FS A
FS B
SGLCC
SGLCD
SGC340
SGC400
SGC440
SGC490
SGC510
AZ/Zn Coating AZ/Zn Coating
Hardness soft, full hard, half hard
Spangle zero spangle / minimized spangle / regular spangle/ big spangle
Packing Standard export package
(Plastic film in the first layer, second layer is Kraft paper. Third layer is galvanized sheet+package strip+corner protected, one pallet about 3 tons)
Application Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings



Details of Galvanised steel coil :



Hot Dipped Galvanized Steel Sheet in Coil (GI) is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface. It has excellent corrosion resistance, paintability, and workability due to Zinc’s characteristics. Usually, hot-dipped galvanized steel sheet and galvanized steel coil process and specifications are basically the same.



Surface Treatment Of Galvanized Steel Coil:



Surface treatment type Code Feature
Chromic acid treatment C Good corrosion resistance, suitable for bare state
Chromic acid treatment + oiling S Good corrosion resistance
Phosphoric acid treatment (including sealing treatment) P A certain degree of corrosion resistance, good paint performance
Phosphoric acid treatment (including sealing treatment) + oiling Q It has certain corrosion resistance, good paint performance, and prevents rust during transportation and storage
Phosphoric acid treatment (excluding sealing treatment) T A certain degree of corrosion resistance, good paint performance
Phosphoric acid treatment (excluding sealing treatment) + oiling V Have certain corrosion resistance, good paint performance, and prevent rust
Oiled O Prevent rust during transportation and storage
No treatment M Suitable for immediate painting



Chromate treatment of galvanized steel coils is also called passivation treatment. Through passivation treatment, the surface structure and gloss of the galvanized layer can be improved, the corrosion resistance and service life of the galvanized layer can be improved, and the bonding force of the coating and the base metal can be improved.

The purpose of oiling galvanized steel coils is a protective layer is formed on the surface of the steel coil to prevent the surface from rusting.



Application of galvansied steel coil :



Galvanized steel coil has a wide range of applications, and its advantage is that it has a long anti-corrosion period. It is mainly used for home appliances, office panels, roof sheets, automotive panels, construction and substrate of prepainted steel coils.

Car board

The use of automotive plates must first be stamped and formed, and the steel plate is stamped into the required shape and size of the part.

Then spot welding, as an important welding method for thin plate connection, has a wide range of applications in the manufacturing industry, especially in the automotive industry.

Galvanized roof sheet

The performance requirements of galvanized roof panels mainly include the mechanical properties of the material (tensile strength, yield strength, elongation), coating performance (coating type, coating thickness and coating adhesion)

Home appliance office board

Including air conditioners, washing machines, refrigerators, photocopiers, etc., household galvanized sheets are mainly used for general forming applications and stamping.

Substrate

Another use of galvanized steel coils is to be used as the substrate of prepainted steel coils. prepainted steel coils have polyethylene coatings than galvanized coils and are more durable.





Here comes some GI products as below:

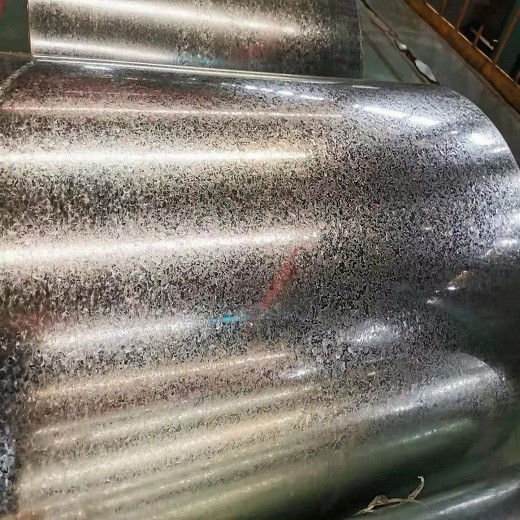

Z120 Hard Galvanized Steel Coil Sheet For Building Material 0

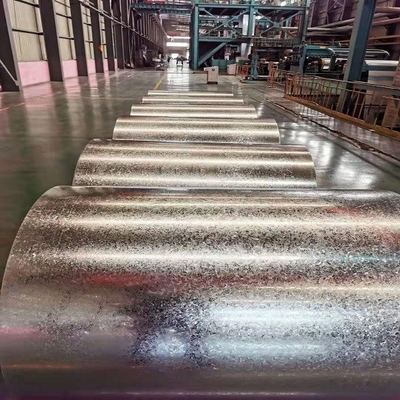

Z120 Hard Galvanized Steel Coil Sheet For Building Material 1



Query:



1. How about your Payment term?



A: We can do 20% TT as advanced,balance against scan copy of BL before arriving at destination port.



Or 100% irrevocable LC at sight





2. How about your quality?



A: We have experienced inspector to check each order before production,if can not reach customer's



quirements,we won't export to our clients.



3. How about your relationship with your clients?



A: We not only treat our clients as partners,but also friends.We care much about longterm ship,but not one



time business.If you do business with us , you can completely belive us as a friend.



4. How about your experience?



A: We have exported steel products many years, know all kinds of steel products very well.We can always grasp the market and suggest our clients to order at the appropriate time.
