Z275 Pre Painted Galvanized Gi Coated Sheet 2.0mm Thickness
Product Details:
| Place of Origin: | China |
| Brand Name: | HUIYI-GI |
| Certification: | SGS , BV , ISO9001 |
| Model Number: | SPCC , SGCC , SGCH,SGCD , DX51/52/53/54D+Z , Q195/21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard exporting package, wrapped with waterproof paper. Then high density PE film. after fully covered with iron sheet with metal edge protectors, strapped with metal bands |
| Delivery Time: | 15-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||

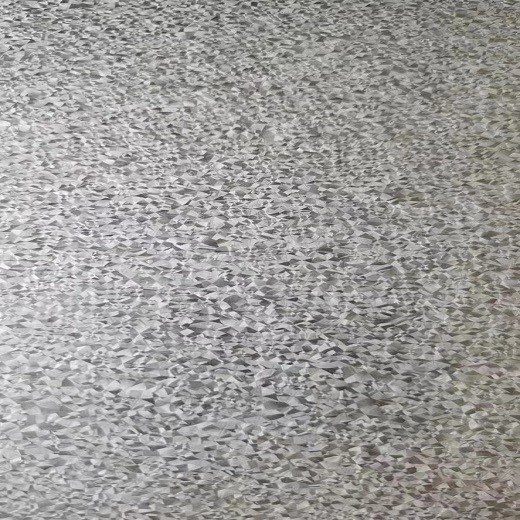

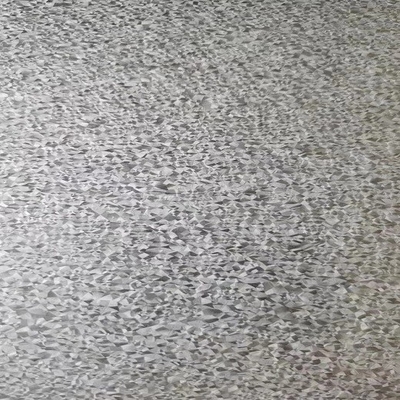

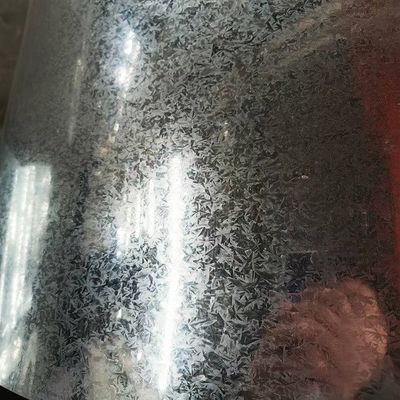

| Product Name: | Regular Spangle GI | Application: | Decoration , Flange Plate , Ship Plate, Building |
|---|---|---|---|
| Width: | 600-1250mm | Thickness: | 0.20-2.0mm |
| Zinc-coating: | Z20-Z600 | Standard: | ASTM , AISI , GB , JIS , DIN |
| Shape: | Coil/sheet/corrugated/flat | Coil ID: | 508mm/610mm |
| Coil Weight: | According To Customers' Requirements | Surface: | Regular /Minimised/Zero Spangle，chromated，unoiled |
| Highlight: | Galvanized Gi Coated Sheet,Pre Painted Gi Coated Sheet,2.0mm Galvanized Steel Sheet |
||
Product Description
2.0mm Thickness Z275 PrePainted Galvanized Steel Coil / sheet , Gi Coated Sheet
Galvanised steel coil introduction:
Hot Dipped Galvanized Steel Sheet in Coil (GI) is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface. It has excellent corrosion resistance, paintability, and workability due to Zinc’s characteristics. Usually, hot-dipped galvanized steel sheet and galvanized steel coil process and specifications are basically the same.
Galvanized steel coils production process :
- Uncoiler
- Welder
- Entry Looper
- Pre-treatment
- Annealing Furnace
- Zinc Pot
- Cooling Tower
- Water Quench Tank
- Skin Pass
- Tension Leveler
- Passivation Coater
- Exit Looper
- Recoiler
The production and processing of galvanized steel coils can be divided into three steps: first, the entire coil is pickled to remove rust and dirt, so that the surface of the galvanized steel strip can achieve a bright and clean effect; after pickling, pass ammonium chloride or zinc chloride It is cleaned in an aqueous solution or a mixed aqueous solution of ammonium chloride and zinc chloride, and then sent to the hot-dip plating tank for the galvanizing process; after the galvanizing process is completed, it can be put into storage and packaged.
Galvanised steel coil specifications :
| Product Name | GI |
| Base Metal | CR Full hard steel coils |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Material | SGCC,SGCH,DX51D |
| Thickness | 0.12-2.0 mm |
| Width | 600-1250mm |
| Coil ID | 508/ 610 mm |
| Zinc Coating | Z 30-275 (g/m2) |
| Spangle | Zero spangle,Minimum spangle,regular spangle,big spangle |
| Surface Treatment | Chromated,skin pass,oiled,phosphating |
| Coil weight | 3-10tons |
| Hardness | Soft hard(HRB60), Medium hard(HRB60-85), full Hard(HRB85-95) |
| Tolerance | 5-10% |
| Packing | kraft paper +plastic film+steel sheet +steel strips |
| MOQ | 25Tons (1* GP 20 FCL) |
| Capacity | 1,500,000.00 Ton / year |
| Trade Term | FOB,CFR,CIF |
| Payment Term | L/C or T/T(30% deposit) |
| Delivery Date | within 20-30 days after receiving the deposit |
| Loading Port | Tianjin port ,Qingdao Port or any port in China |
| Advantages | 1.High strength |
| 2.Well rainproof performance | |
| 3.Good corrosion resistance | |
| 4.easy to install and remove | |
| Application | |
| construction:roofing sheet,building wall pannel,fence, | |
| ,home application,advatising,furniture industry |
| SPECIES | GRADE | STANDARD | APPLICATION |
| PRESSING STEEL | DX51D+Z, | GB/T 2518 | common use,deep drawing |
| DX51D+ZF | |||
| DX52D+Z,DX52D+ZF | |||
| DX53D+Z,DX53D+ZF | |||
| DX54D+Z,DX54D+ZF | |||
| S220GD+Z,S220GD+ZF | |||
| CONSTRUCTION STEEL | S250GD+Z,S250GD+ZF | GB/T 2518 | construction material,corrosion resistance |
| S280GD+Z,S280GD+ZF | |||
| S320GD+Z,S320GD+ZF | |||
| S350GD+Z,S350GD+ZF | |||
| S400GD+Z,S400GD+ZF | |||
| S500GD+Z,S500GD+ZF | |||
| S550GD+Z,S550GD+ZF | |||
| HX260LAD+Z,HX260LAD+ZF | |||
| HX300LAD+Z,HX300LAD+ZF | |||
| HX340LAD+Z,HX340LAD+ZF | |||
| HX380LAD+Z,HX380LAD+ZF | |||
| HX420LAD+Z,HX420LAD+ZF | |||
| COLD ROLLED HIGH TENSILE STEEL | HC260/450DPD+Z,HC260/450DPD+ZF | GB/T 2518 | including alloy steel,corrosion resistance,good pressing |
| HC300/500DPD+Z,HC300/500DPD+ZF | |||
| HC340/600DPD+Z,HC340/600DPD+ZF | |||
| HC450/780DPD+Z,HC450/780DPD+ZF |
Galvanised steel coil application:
1. Buildings And Constructions
Floor Decks, Ceilings, Duct Work, Roofing, Siding, Sashes, Beams, Fences, Verandas, Shutters, Awnings,
Partitions, Indoor Decorations, Pipes, Ventilators, Sheds, Culverts.
2. Transportation
Body Pane, Air Cleaners, Oil Filters, Fuel Tanks, Containers, Highway Barriers.
3. Appliances
Light Fittings, Washing Machines, Dryers, Coolers, Vending Machines, Water Heaters, Stoves, Refrigerators, Freezers, Tool Boxes.
4. Agriculture
Barns, Dryer Panels, Animal Houses, Hoppers. Bar Supporters, Irrigation Systems, Green Houses.
5. Others
Furniture And Office Equipment, Entertainment Machines, Car Ports, Garden And Storage Sheds
Here are the loading pictures of galvanised steel coil :
