304 Hot Rolled Stainless Steel Coil 0.6MM Thickness
Product Details:
| Place of Origin: | China |
| Brand Name: | HUIYI-GI |
| Certification: | SGS , BV , ISO9001 |
| Model Number: | SPCC , SGCC , SGCH,SGCD , DX51/52/53/54D+Z , Q195/21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard exporting package, wrapped with waterproof paper. Then high density PE film. after fully covered with iron sheet with metal edge protectors, strapped with metal bands |
| Delivery Time: | 15-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 8000 tons per month |
|
Detail Information |
|||
| Surface: | 2B, 2D, BA, MATT, MATT PVC, No.4, No.5, SB, HR, No.8, Mirror, Hairline, Brush, Textured, Oil Base Wet Polished, Both Sides Polished Available. | Application: | Guest Houses, Kitchen Equipment |
|---|---|---|---|
| Width: | 1250 MM / 1500 MM / 2000 MM / 04 Feet / 05 Feet And Custom Cut Width As Per Requirement | Thickness: | 0.6 MM TO 80 MM |
| Grade: | 316L, 316, 304, 304L | Standard: | JIS, JIS, AISI, ASTM, GB, DIN, EN, Etc. |
| Shape: | Coil | Coil ID: | 508mm/610mm |
| Coil Weight: | According To Customers' Requirements | Product Name: | ISO9001 Hot Rolled Stainless Steel Coil |
| Highlight: | 304 hot rolled stainless steel coil,0.6MM thickness hot rolled stainless steel coil,0.6MM thickness hr sheet coil |
||
Product Description
304 grade Hot rolled Stainless steel coil used in Buildings And Constructions
The chemical composition of grade 304 Stainless Steel is outlined in the following table :
| C | Mn | Si | P | S | Cr | Ni | N | |
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| 304H | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | min: 0.04 max:0.10 | 0.75 max | 2.0 max | 0.045 max | 0.03 max | 0.10 max |
The mechanical properties of grade 304 Stainless Steel Plates are displayed in the following table:
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |
| 304H also has a requirement for a grain size of ASTM No 7 or coarser. | |||||
Physical properties of 304 grade stainless steel in the annealed condition:
| Grade | Density(kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 304/L/H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Stainless steel coil introductions :
Stainless steel has smooth surface, high plasticity, toughness and mechanical strength, and is resistant to the corrosion of acid and alkali gas, solution and other media. It is an alloy steel, which is not easy to rust, but it is not absolutely rusty.It has general corrosion resistance similar to unstable ni-cr304. It has high temperature oxidation resistance, but the oxidation rate will be affected by internal factors such as exposure environment and product morphology. The total heat transfer coefficient of metal depends on the thermal conductivity of metal, but also on other factors. Stainless steel keeps the surface clean, so it can conduct electricity. Metals with higher thermal conductivity have better heat dissipation than other metals
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Stainless steel coil application:
1. Buildings And Constructions
Floor Decks, Ceilings, Duct Work, Roofing, Siding, Sashes, Beams, Fences, Verandas, Shutters,
Awnings,
Partitions, Indoor Decorations, Pipes, Ventilators, Sheds, Culverts.
2. Transportation
Body Pane, Air Cleaners, Oil Filters, Fuel Tanks, Containers, Highway Barriers.
3. Appliances
Light Fittings, Washing Machines, Dryers, Coolers, Vending Machines, Water Heaters, Stoves,
Refrigerators, Freezers, Tool Boxes.
4. Agriculture
Barns, Dryer Panels, Animal Houses, Hoppers. Bar Supporters, Irrigation Systems, Green Houses.
5. Others
Furniture And Office Equipment, Entertainment Machines, Car Ports, Garden And Storage Sheds

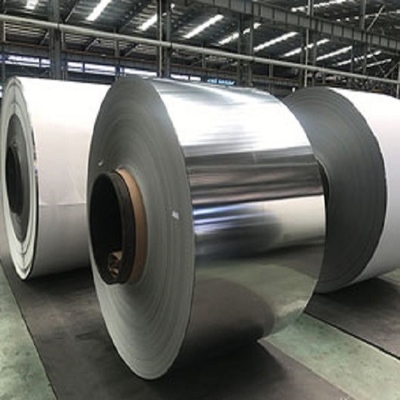

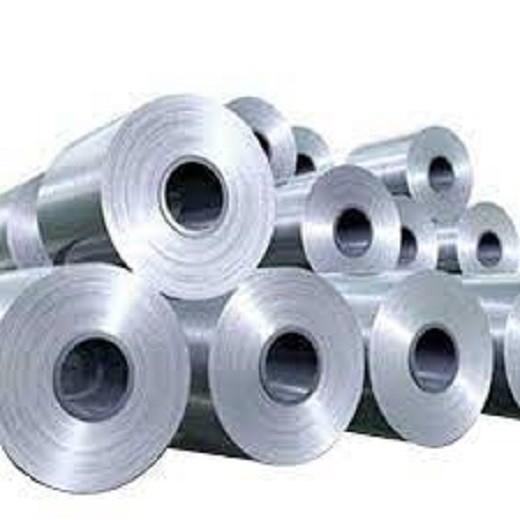

Loading pictures of stainless steel coil :
FAQ:
Q: Can you send samples?
A: Of course, we can send samples to all parts of the world, our samples are free.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: What are the shipping ports?
A: Any port in China.
Q: About product prices?
A: Prices vary from period to period due to cyclical changes in the price of raw materials.
Q: What are the certifications for your products?
A: We have ISO 9001, SGS, EWC and other certifications.
Q: How long does your delivery time take?
A: In general, our delivery time is within 20-25 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
