ASTM A240 Galvanized Hot Rolled Stainless Steel Coil 0.6mm Thickness
Product Details:
| Place of Origin: | China |
| Brand Name: | HUIYI-GI |
| Certification: | SGS , BV , ISO9001 |
| Model Number: | SPCC , SGCC , SGCH,SGCD , DX51/52/53/54D+Z , Q195/21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard exporting package, wrapped with waterproof paper. Then high density PE film. after fully covered with iron sheet with metal edge protectors, strapped with metal bands |
| Delivery Time: | 15-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 8000 tons per month |
|
Detail Information |
|||
| Surface: | 2B, 2D, BA, MATT, MATT PVC, No.4, No.5, SB, HR, No.8, Mirror, Hairline, Brush, Textured, Oil Base Wet Polished, Both Sides Polished Available. | Application: | Guest Houses, Kitchen Equipment |
|---|---|---|---|
| Width: | 1250 MM / 1500 MM / 2000 MM / 04 Feet / 05 Feet And Custom Cut Width As Per Requirement | Thickness: | 0.6 MM TO 80 MM |
| Grade: | 316L, 316, 304, 304L | Standard: | JIS, JIS, AISI, ASTM, GB, DIN, EN, Etc. |
| Shape: | Coil | Coil ID: | 508mm/610mm |
| Coil Weight: | According To Customers' Requirements | Product Name: | ISO9001 Hot Rolled Stainless Steel Coil |
| Highlight: | ASTM A240 galvanized sheet coil,ASTM A240 Hot rolled steel coil,508mm galvanized steel sheet coil |
||
Product Description
ASTM A240 Hot rolled Stainless steel coil 0.6mm thickness
Stainless steel coil specifications :
| 304 Stainless Steel Plate Specification | ASTM A240 / ASME SA240 |
| 304 Stainless Steel Manufacturing Process | Hot Rolled (HR) / Cold Rolled (CR) |
| 304 Stainless Steel Plate Grades | 202 / 304 / 304L / 304H / 309S / 310S / 316 / 316L / 316Ti / 317L / 321 / 321H / 347 / 347H / 904L etc. |
| UNS No. - UNS S30400, UNS S30403, UNS S31008, UNS S31620, UNS S31603, UNS S31603, UNS S31635, UNS S31703, UNS S32100, UNS S34700, UNS S34709, UNS S8904 | |
| EN No. - 1.4301, 1.4307, 1.4845, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4550, 1.4551, 1.4539 | |
| 304 Stainless Steel Plate Thickness | 0.6 MM TO 80 MM THICKNESS |
| 304 Stainless Steel Plate Width | 1250 MM / 1500 MM / 2000 MM / 04 Feet / 05 Feet and Custom Cut Width as Per Requirement |
| 304 Stainless Steel Plate Length | 2400 MM / 2420 MM / 6000 MM / 08 Feet / 10 Feet / Coil Cut and Custom Cut Length as Per Requirement |
| 304 Stainless Steel Plate Surface Finish | 2B, 2D, BA, MATT, MATT PVC, No.4, No.5, SB, HR, No.8, Mirror, Hairline, Brush, Textured, Oil base wet Polished, Both sides Polished available. |
| 304 Stainless Steel Plate Coating | PVC coating Normal / Laser, Film: 100 micrometer, Color: black/white. |
| 304 Stainless Steel Plate Other Testing | NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, etc. |
| 304 Stainless Steel Plate Value Added Services | Gas Cutting / CNC Plasma Cutting / Profiling / Rolling / Bending / Sheet Metal Fabrication / Drill / Punch / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| 304 Stainless Steel Plate Packaging | Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
| 304 Stainless Steel Plate Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
Stainless steel coil introductions :
Stainless steel has smooth surface, high plasticity, toughness and mechanical strength, and is resistant to the corrosion of acid and alkali gas, solution and other media. It is an alloy steel, which is not easy to rust, but it is not absolutely rusty.It has general corrosion resistance similar to unstable ni-cr304. It has high temperature oxidation resistance, but the oxidation rate will be affected by internal factors such as exposure environment and product morphology. The total heat transfer coefficient of metal depends on the thermal conductivity of metal, but also on other factors. Stainless steel keeps the surface clean, so it can conduct electricity. Metals with higher thermal conductivity have better heat dissipation than other metals
Possible alternative grades to 304 grade stainless steel :
| Grade | Why it might be chosen instead of 304 |
| 301L | A higher work hardening rate grade is required for certain roll formed or stretch formed components. |
| 302HQ | Lower work hardening rate is needed for cold forging of screws, bolts and rivets. |
| 303 | Higher machinability needed, and the lower corrosion resistance, formability and weldability are acceptable. |
| 316 | Higher resistance to pitting and crevice corrosion is required, in chloride environments |
| 321 | Better resistance to temperatures of around 600-900°C is needed…321 has higher hot strength. |
| 3CR12 | A lower cost is required, and the reduced corrosion resistance and resulting discolouration are acceptable. |
| 430 | A lower cost is required, and the reduced corrosion resistance and fabrication characteristics are acceptable. |
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Stainless steel coil application:
1. Buildings And Constructions
Floor Decks, Ceilings, Duct Work, Roofing, Siding, Sashes, Beams, Fences, Verandas, Shutters,
Awnings,
Partitions, Indoor Decorations, Pipes, Ventilators, Sheds, Culverts.
2. Transportation
Body Pane, Air Cleaners, Oil Filters, Fuel Tanks, Containers, Highway Barriers.
3. Appliances
Light Fittings, Washing Machines, Dryers, Coolers, Vending Machines, Water Heaters, Stoves,
Refrigerators, Freezers, Tool Boxes.
4. Agriculture
Barns, Dryer Panels, Animal Houses, Hoppers. Bar Supporters, Irrigation Systems, Green Houses.
5. Others
Furniture And Office Equipment, Entertainment Machines, Car Ports, Garden And Storage Sheds

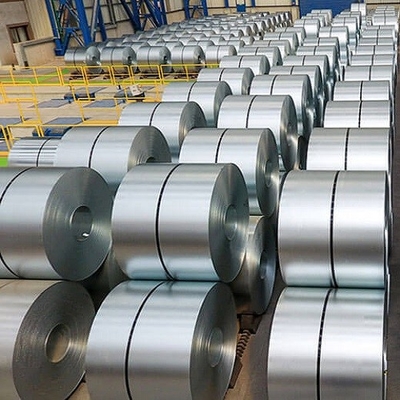

Loading pictures of stainless steel coil :
FAQ:
Q: Can you send samples?
A: Of course, we can send samples to all parts of the world, our samples are free.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: What are the shipping ports?
A: Any port in China.
Q: About product prices?
A: Prices vary from period to period due to cyclical changes in the price of raw materials.
Q: What are the certifications for your products?
A: We have ISO 9001, SGS, EWC and other certifications.
Q: How long does your delivery time take?
A: In general, our delivery time is within 20-25 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
