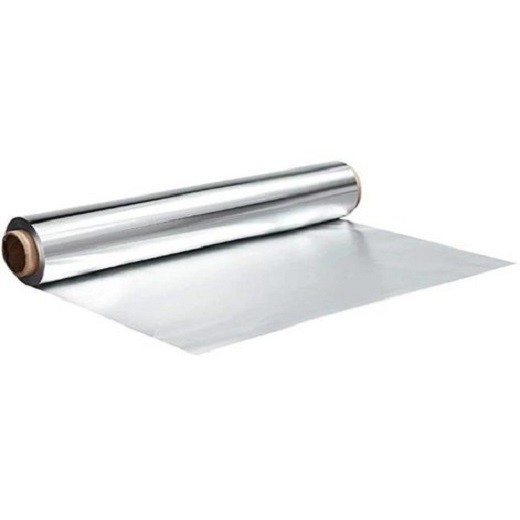

• 1200mm Width Alu Bubble Foil Mill Finish With Metal Cutter Packages
  • 1200mm Width Alu Bubble Foil Mill Finish With Metal Cutter Packages
1200mm Width Alu Bubble Foil Mill Finish With Metal Cutter Packages

1200mm Width Alu Bubble Foil Mill Finish With Metal Cutter Packages

Product Details:

Place of Origin: China
Brand Name: HUIYI
Certification: ISO9001
Model Number: ASTMB209

Payment & Shipping Terms:

Minimum Order Quantity: 25tons each thickness
Price: Negotiation
Packaging Details: water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel
Delivery Time: 15-35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: 1060 Clean, Hygienic And Shiny Appearance Type: Foil
Surface Treatmen: Mill Finish/Coated/Printed/Embossed Thickness: 0.004MM-0.2MM
Alloy: 8011,8021,1070,3003 Etc. Width: 20-1270mm
Application: Flexible Pack, Food Pack, Beverage Industry, Construction Industry Standard: JIS, AISI, ASTM, GB, DIN, EN
Highlight:

1200mm width alu bubble foil

,

Mill finish alu bubble foil

,

1200mm width aluminium bubble foil

Product Description

1200mm width Color box with metal cutter packages Alu Foil ,Aluminum foil

Alu foil introduction:



Because of its excellent characteristics, aluminum foil is widely used in food, beverage, cigarette, medicine, photographic substrate, household articles, etc., the aluminum foil is usually used as its packaging material.Aluminum foil is a soft metal with moisture, airtight, shading, non-toxic, tasteless and high plasticity. Especially, its clean, hygienic and shiny appearance make it popular.



Application of alu foil :



1. Flexible packaging and food contact applications
2. To laminated with Woven,bubble and EPE,XPE foam as thermal Insulating materials, which could be used as underlay, wrap wall,
3. To make sunshade or ice bag;
4. Used as emergency blanket, it can retains 80% percent of your radiant body heat.
5. To make static shielding bag for electronic product.



Alu foil packages   :



Width(Maximum Tolerance+/-3%) Length(Maximum Tolerance+/-3mm) Gauge-Microns(Maximum Tolerance+/-3%) Units * boxes Packing Carton Size
10cm 250m 12-20micron 24 Color box with metal cutter 33.5*28.5*29cm
12cm 50m 12-20micron 24 Color box with metal cutter 33.5*30.5*35cm
12cm 76m 12-20micron 24 Color box with metal cutter 30.5*27.5*22.5cm
12cm 100m 12-20micron 24 Color box with metal cutter 32.5*30.5*24.5cm
12cm 150m 12-20micron 24 Color box with metal cutter 34*30.5*24.5cm
12cm 250m 12-20micron 12 Color box with metal cutter 32.5*30.5*22cm
12cm 300m 12-20micron 12 Color box with metal cutter 32.5*30.5*22cm
12cm 365m 12-20micron 12 Color box with metal cutter 32.5*30.5*22cm
12.7cm 76m 12-20micron 24 Color box with metal cutter 32*27.5*22.5cm
12.7cm 94m 12-20micron 24 Color box with metal cutter 32*29*23.5cm
12.7cm 185m 12-20micron 20 Color box with metal cutter 46*32*22.5cm
12.7cm 230m 12-20micron 20 Color box with metal cutter 46*32*22.5cm
12.7cm 460m 12-20micron 8 Color box with metal cutter 32.5*24.5*26.5cm
12.7cm 540m 12-20micron 8 Color box with metal cutter 32.5*24.5*26.5cm





The manufacturing process of alu foil :



1200mm Width Alu Bubble Foil Mill Finish With Metal Cutter Packages 0



Mechanical properties of Alu foil :



Thickness (mm) Tensile Strength(Mpa) Elongation %
0.009-0.0099 45-100 ≥0.5
≥0.010-0.011 50-110 ≥1.0
>0.011-0.012 50-110 ≥1.5
>0.012-0.013 50-110 ≥1.7
>0.013-0.014 50-110 ≥1.8
>0.014-0.016 50-110 ≥2.0
>0.016-0.018 50-110 ≥2.2
>0.018-0.020 50-110 ≥2.5
>0.020-0.022 50-110 ≥2.8
>0.022-0.025 50-110 ≥3.0



Chemical components of Alu foil :



Alloy Si Fe Cu Mn Mg Zn Ti Others Al
8011 0.5-0.9 0.6-1.0 0.1 0.2 0.05 - 0.1 0.08 Rem

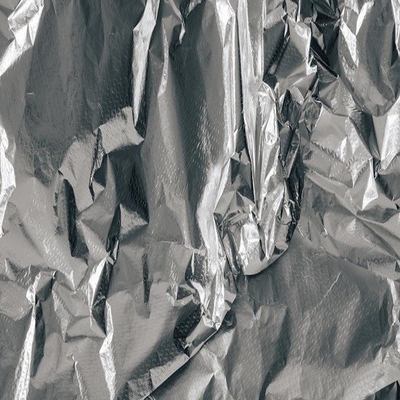

Here are the loading and application picutres of alu foil:



1200mm Width Alu Bubble Foil Mill Finish With Metal Cutter Packages 1

1200mm Width Alu Bubble Foil Mill Finish With Metal Cutter Packages 21200mm Width Alu Bubble Foil Mill Finish With Metal Cutter Packages 3



Alu foil advantage :


1. The surface of the aluminum foil is extremely clean and hygienic, and no bacteria or microorganisms can grow on its surface.
2. Aluminum foil is a non-toxic packaging material, it can be in direct contact with food without any worries that can endanger human health.
3. Aluminum foil is a tasteless and odorless packaging material, which will not cause any peculiar smell to the packaged food.
4. No matter in high temperature or low temperature, there will be no grease penetration in aluminum foil.
5. If the aluminum foil itself is not volatile, it and the packaged food will never dry or shrink.
6. Aluminum foil has good plasticity, so it can be used to package products of various shapes. Various shapes of containers can also be arbitrarily formed.
7. Aluminum foil is an opaque packaging material, so it is a good packaging material for products exposed to sunlight, such as margarine.



FAQ:



1. If you want to get a quotation ,what information need be provided to you?
A: Size(Width*Length*Thickness),color and the quantity demand and any other needs.

2. When can I get price after I send an enquiry?

A: We can guarantee that you can have the price as soon as possible
