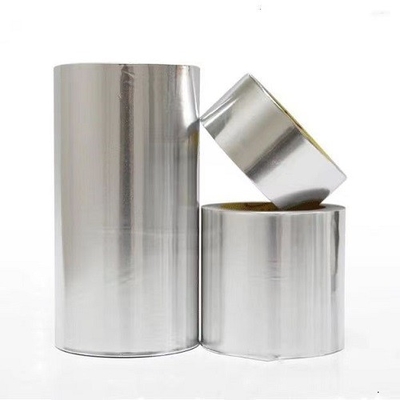

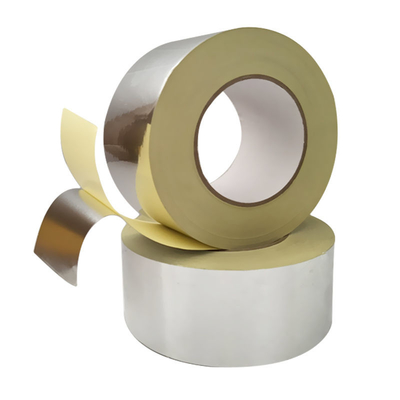

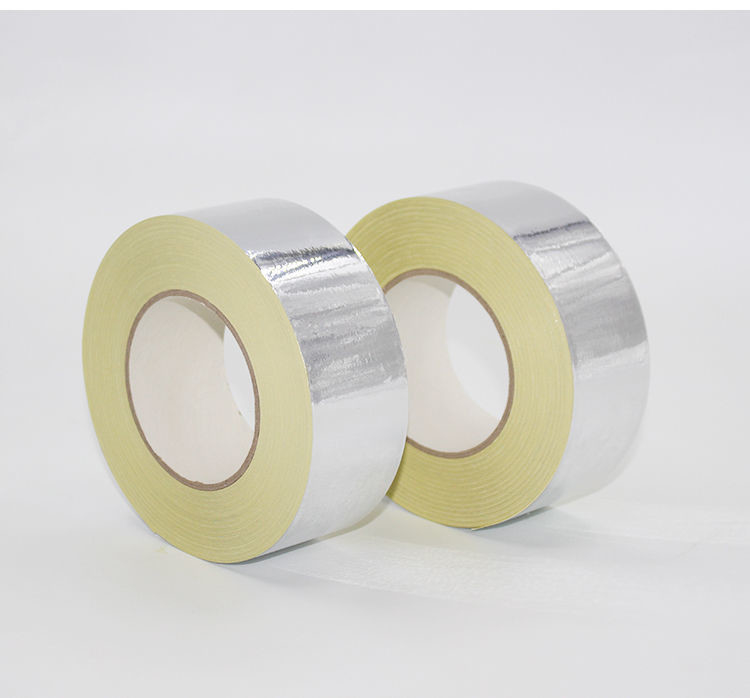

Heat Resistance Waterproof Aluminum Foil Tape Strong Adhesion Repair Packing

Heat Resistance Waterproof Aluminum Foil Tape Strong Adhesion Repair Packing

Product Details:

Place of Origin: China
Brand Name: HUIYI
Certification: ISO9001
Model Number: ASTMB209

Payment & Shipping Terms:

Minimum Order Quantity: 25tons each thickness
Price: Negotiation
Packaging Details: water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel
Delivery Time: 15-35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Aluminium Foil Tape Material: Alu Foil
Adhesive: Acrylic Adhesive Side: Single Sided
Adhesive Type: Pressure Sensitive Feature: Heat-Resistant
Color: Silver Width: 5CM/7.5CM/10CM Or As Required
Length: 20M/30M Application: Building, Ship, Automobile And Other Industries
Highlight:

20m Aluminum Foil Tape

,

Waterproof Aluminum Foil Tape

,

Heat Resistant Aluminum Foil Backed Tape

Product Description

Free Sample Heat Resistance Strong Adhesion Waterproof Repair Packing Aluminum Foil Tape



HUIYI Foil-Glass Cloth Tape is a foil-glass cloth backing (7u foil with a 10x10 mesh 90gsm glass cloth) with acrylic adhesive and protected by easy release liner.



Specifications





Application



Coupling and sealing pipe joints in ventilation, air condition and refrigeration



Material



Aluminum foil
Adhesive



Sollvent acrylic or water acrylic or rubber adhesive



Aluminum foil thickness



15, 30, 40, 50 Micron

Package

Cut roll : printed core and shrink wrapping +carton

Log roll: cardboard wrapping + carton +pallet

Jumbo roll: plastic film + corrugated board wrapping + wooden case.



Technical Data Sheet



Property
Unit
Value
Test Method
Total Thickness
(Backing+Adhesive)
Micron
150
PSTC-33 / ASTM D3652
Peel Adhesion
N/25mm
15
PSTC-1 / ASTM D3330
Tack Rolling Ball
cm
20
PSTC-6 / ASTM D3121
Tensile Strength
N/25mm
250
PSTC-31 / ASTM D3759
Elongation
%
5.0
PSTC-31 / ASTM D3759
Service Temperature
-10 ~ +120
----
Applying Temperature
+10 ~ +40
----





Alu foil introduction:



Aluminium foil has anti - leakage, fresh, anti - counterfeiting, anti - theft, anti - moisture and other functions, but also has a good antibacterial ability. It ’s an ideal material for packaging products. capacitor making field, construction field, ornament field, printing field and household packing, the main products of our company as follows: cigarette foil, golden foil paper, food foil, capacitor foil, medical foil, beer foil, housing foil and soft packing foil for aluminum foil manufacturer.



The manufacturing process of alu foil :



Heat Resistance Waterproof Aluminum Foil Tape Strong Adhesion Repair Packing 0



Mechanical properties of Alu foil :



Thickness (mm) Tensile Strength(Mpa) Elongation %
0.009-0.0099 45-100 ≥0.5
≥0.010-0.011 50-110 ≥1.0
>0.011-0.012 50-110 ≥1.5
>0.012-0.013 50-110 ≥1.7
>0.013-0.014 50-110 ≥1.8
>0.014-0.016 50-110 ≥2.0
>0.016-0.018 50-110 ≥2.2
>0.018-0.020 50-110 ≥2.5
>0.020-0.022 50-110 ≥2.8
>0.022-0.025 50-110 ≥3.0



Chemical components of Alu foil :



Alloy Si Fe Cu Mn Mg Zn Ti Others Al
8011 0.5-0.9 0.6-1.0 0.1 0.2 0.05 - 0.1 0.08 Rem





Here are the loading and application picutres of alu foil:



Heat Resistance Waterproof Aluminum Foil Tape Strong Adhesion Repair Packing 1

Heat Resistance Waterproof Aluminum Foil Tape Strong Adhesion Repair Packing 2Heat Resistance Waterproof Aluminum Foil Tape Strong Adhesion Repair Packing 3



Alu foil features :



Aluminum foil has a clean, sanitary and shiny appearance, it can be integrated with many other packaging materials packaging materials, and aluminum foil surface printing effect is better than other materials,in addition, aluminum foil has the following characteristics:


(1) Aluminum foil surface is clean, sanitary, no bacteria or micro-organisms can not grow on its surface.


(2) Aluminum foil is a non-toxic packaging material, it can directly contact with food without any harm to human health.


(3) Aluminum foil is a kind of tasteless odorless packaging material, will not make the packaging of food have any peculiar smell.


(4) Aluminum foil itself is not volatile, it itself and packaged food will never dry or shrink.


(5) At high temperature or low temperature, aluminum foil will not have the phenomenon of oil permeability.


(6) Aluminum foil is a kind of opaque packaging material, so it is a kind of good packing material for the products of sunlight irradiation.


(7) Aluminum foil has good plasticity, so it can be used to pack all kinds of products. Can also cause any shape containers.



Alu foil advantage :


1. The surface of the aluminum foil is extremely clean and hygienic, and no bacteria or microorganisms can grow on its surface.


2. Aluminum foil is a non-toxic packaging material, it can be in direct contact with food without any worries that can endanger human health.


3. Aluminum foil is a tasteless and odorless packaging material, which will not cause any peculiar smell to the packaged food.


4. No matter in high temperature or low temperature, there will be no grease penetration in aluminum foil.


5. If the aluminum foil itself is not volatile, it and the packaged food will never dry or shrink.


6. Aluminum foil has good plasticity, so it can be used to package products of various shapes. Various shapes of containers can also be arbitrarily formed.


7. Aluminum foil is an opaque packaging material, so it is a good packaging material for products exposed to sunlight, such as margarine.


FAQ:



1. If you want to get a quotation ,what information need be provided to you?
A: Size(Width*Length*Thickness), color and the quantity demand and any other needs.



2. When can I get price after I send an enquiry?

A: We can guarantee that you can have the price as soon as possible
