Multispan Heat Reflection Alu Bubble Foil Thermal Insulation Roll

Multispan Heat Reflection Alu Bubble Foil Thermal Insulation Roll

Product Details:

Place of Origin: China
Brand Name: HUIYI
Certification: ISO9001 SGS
Model Number: QCFB06

Payment & Shipping Terms:

Minimum Order Quantity: 25tons each thickness
Price: Negotiation
Packaging Details: water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel
Delivery Time: 15-35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Heat Reflection And Thermal Insulation Type: Multi-Span Agricultural Greenhouses, Other Heat Insulation Material...
Surface Treatmen: Anti-glare Coating Is Available Thickness: 2-4 Mm Bubble
Emissivity: 2.5% Reflectivity: 97%
Application: Outdoor Function: Heat Resistant, Fireproof, Waterproof
Highlight:

Heat Reflection Alu Bubble Foil

,

Multispan Alu Bubble Foil

,

Heat resistant alu bubble foil

Product Description

Heat Reflection And Thermal Insulation Alu Bubble Foil , Aluminium Silver Bubble Sheet

Alu-bubble foil specifications :



Product Name Heat Reflection And Thermal Insulation Roll
Material Structure Aluminum Foil/Bubble/Aluminum Foil
Thickness 2mm-10mm
Weight 200-500g/m2
Emissivity 0.105
Thermal Conductivity 0.034w/(m.k)
Apparent Density 85KG/M3
Reflectivity 96%-97%
Water Vapour Transmission 0.012g/m2 KPA
Tensile Strength(MD) 31.49Mpa
Tensile Strength(TD) 28.02Mpa
Flammability Index/Fire Rating Class A
Temperature Range -50 Degrees C to 80 Degree C
Pliability No Cracking
Security Non-Toxicity , Non-Corrosiveness
Specification Star Packaging Supplies 2 layers Aluminum foil(AL+CPE),and 3 layers Aluminum foil(AL+PET+CPE) for your selection. 3 layers is much stronger than 2 layers
Bubble Diameter(MM)*Height(MM):10*3/10*4/10*5/20*7/25*10,120G/sq.m ,130G/sq.m ,180G/sq.m ,300G/sq.m ,Choose the right bubble size which you need.
Roll Size(M) Roll size could be customized with the maximum width 1.5M
Promotion The product can be made with fire-retardant function or without. We are always glad to get your creative idea to make our product better and more versatile.





Alu-bubble foil introduction:



Alu-bubble foil a new environmentally friendly heat insulation material, which can add a layer of PE woven cloth on the basis of the original aluminum foil and polyethyene, which greatly enhances tensile strength and tering-resistance strength without changing its original characterstics.

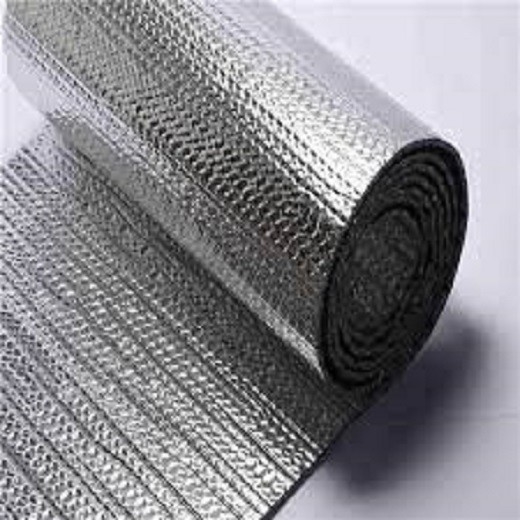

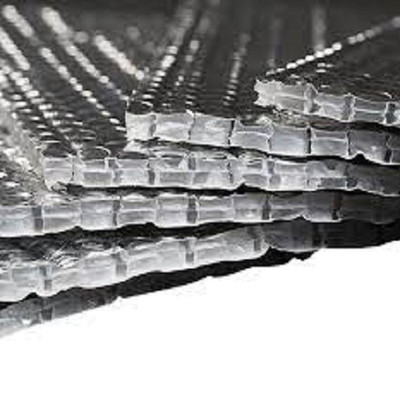

Here are the loading and application picutres of alu-bubble foil:



Multispan Heat Reflection Alu Bubble Foil Thermal Insulation Roll 0Multispan Heat Reflection Alu Bubble Foil Thermal Insulation Roll 1



Alu-bubble foil application  :


* Heat Insulation: Building Thermal Insulation Material to reduce summer heat and keep warm in winter
* Covers: It can be heat sealed to be roof cover to reflect heat radiation and seal airtight.
* Wrapping: Protective coating of ventilating pipe,HVAC Duct & Pipe or To make Bubble mailer,Bag



Alu-bubble foil advantage :



1. Fire proof

2. Non-toxic / Non-carcinogenic

3. Reflects about 97% of radiant heat

4. Durable and lightweight

5. Reduce heating and cooling costs all year round

6. Easy to cut and install, without the protective clothing or respirators during installment.

7. Does not support the growth of fungus or mold.

8. Vapor and radon retarder

9. Not affected by moisture or humidity



FAQ:



1.If you want to get a quotation ,what information need be provided to you?
A: Size(Width*Length*Thickness),color and the quantity demand and any other needs.

2. When can I get price after I send an enquiry?

A: We can guarantee that you can have the price as soon as possible
