0.20mm  Z20 Regular Spangle Pre Painted Galvanized Steel Coil , Gi Coated Sheet

0.20mm Z20 Regular Spangle Pre Painted Galvanized Steel Coil , Gi Coated Sheet

Product Details:

Place of Origin: China
Brand Name: HUIYI-GI
Certification: SGS , BV , ISO9001
Model Number: SPCC , SGCC , SGCH,SGCD , DX51/52/53/54D+Z , Q195/21

Payment & Shipping Terms:

Minimum Order Quantity: 25tons each thickness
Price: Negotiation
Packaging Details: Standard exporting package, wrapped with waterproof paper. Then high density PE film. after fully covered with iron sheet with metal edge protectors, strapped with metal bands
Delivery Time: 15-35days
Payment Terms: L/C, D/P, T/T
Supply Ability: 1000 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Regular Spangle GI Application: Decoration , Flange Plate , Ship Plate, Building
Width: Under 1600mm Thickness: 0.20-6.0mm
Zinc-coating: Z20-Z600 Standard: ASTM , AISI , GB , JIS , DIN
Shape: Coil/sheet/corrugated/flat Coil ID: 508mm/610mm
Coil Weight: According To Customers' Requirements Surface: Regular /Minimised/Zero Spangle,chromated,unoiled
Highlight:

regular spangle galvanized steel coil

,

Z20 galvanized steel coil

,

regular spangle gi coated sheet

Product Description

0.11mm , Z20 regular spangle Hot Dipped Galvanised Coil



Galvanised steel coil introduction:



Hot-dip galvanizing is the reaction of molten metal with an iron substrate to produce an alloy layer, thereby combining the substrate and the plating layer. Hot-dip galvanizing is to pickle iron and steel parts first. In order to remove iron oxide on the surface of iron and steel parts, after pickling, it is cleaned in an ammonium chloride or zinc chloride aqueous solution or a mixed solution of ammonium chloride and zinc chloride.And then sent to the hot-dip plating bath. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.

Galvanised steel coil specifications  :



Product Name GI
Base Metal CR Full hard steel coils
Standard AISI, ASTM, BS, DIN, GB, JIS
Material SGCC,SGCH,DX51D
Thickness 0.12-6.0 mm
Width 600-1500mm
Coil ID 508/ 610 mm
Zinc Coating Z 30-275 (g/m2)
Spangle Zero spangle,Minimum spangle,regular spangle,big spangle
Surface Treatment Chromated,skin pass,oiled,phosphating
Coil weight 3-10tons
Hardness Soft hard(HRB60), Medium hard(HRB60-85), full Hard(HRB85-95)
Tolerance 5-10%
Packing kraft paper +plastic film+steel sheet +steel strips
MOQ 25Tons (1* GP 20 FCL)
Capacity 1,500,000.00 Ton / year
Trade Term FOB,CFR,CIF
Payment Term L/C or T/T(30% deposit)
Delivery Date within 20-30 days after receiving the deposit
Loading Port Tianjin port ,Qingdao Port or any port in China
Advantages 1.High strength
2.Well rainproof performance
3.Good corrosion resistance
4.easy to install and remove
Application
construction:roofing sheet,building wall pannel,fence,
,home application,advatising,furniture industry





The details of galvanised steel coil :



SPECIES GRADE STANDARD APPLICATION
PRESSING STEEL DX51D+Z, GB/T 2518 common use,deep drawing
DX51D+ZF
DX52D+Z,DX52D+ZF
DX53D+Z,DX53D+ZF
DX54D+Z,DX54D+ZF
S220GD+Z,S220GD+ZF
CONSTRUCTION STEEL S250GD+Z,S250GD+ZF GB/T 2518 construction material,corrosion resistance
S280GD+Z,S280GD+ZF
S320GD+Z,S320GD+ZF
S350GD+Z,S350GD+ZF
S400GD+Z,S400GD+ZF
S500GD+Z,S500GD+ZF
S550GD+Z,S550GD+ZF
HX260LAD+Z,HX260LAD+ZF
HX300LAD+Z,HX300LAD+ZF
HX340LAD+Z,HX340LAD+ZF
HX380LAD+Z,HX380LAD+ZF
HX420LAD+Z,HX420LAD+ZF
COLD ROLLED HIGH TENSILE STEEL HC260/450DPD+Z,HC260/450DPD+ZF GB/T 2518 including alloy steel,corrosion resistance,good pressing
HC300/500DPD+Z,HC300/500DPD+ZF
HC340/600DPD+Z,HC340/600DPD+ZF
HC450/780DPD+Z,HC450/780DPD+ZF



Galvanised steel coil  application:



1. Buildings And Constructions



    Floor Decks, Ceilings, Duct Work, Roofing, Siding, Sashes, Beams, Fences, Verandas, Shutters, Awnings,



 Partitions, Indoor Decorations, Pipes, Ventilators, Sheds, Culverts.



2. Transportation



    Body Pane, Air Cleaners, Oil Filters, Fuel Tanks, Containers, Highway Barriers.



3. Appliances



    Light Fittings, Washing Machines, Dryers, Coolers, Vending Machines, Water Heaters, Stoves, Refrigerators, Freezers, Tool Boxes.



4. Agriculture



   Barns, Dryer Panels, Animal Houses, Hoppers. Bar Supporters, Irrigation Systems, Green Houses.



5. Others



    Furniture And Office Equipment, Entertainment Machines, Car Ports, Garden And Storage Sheds

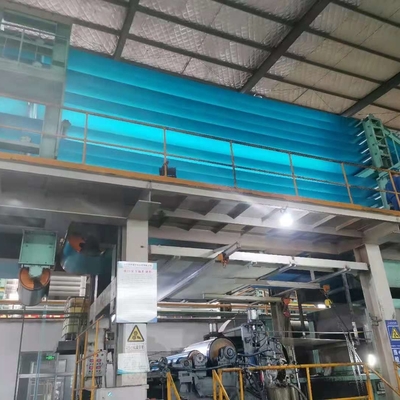

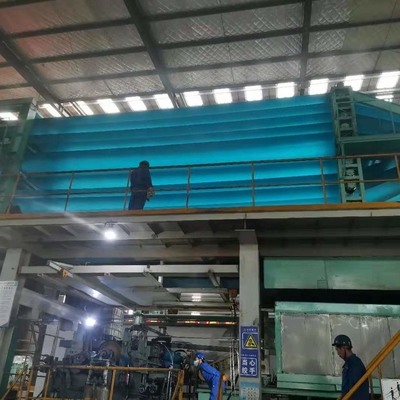

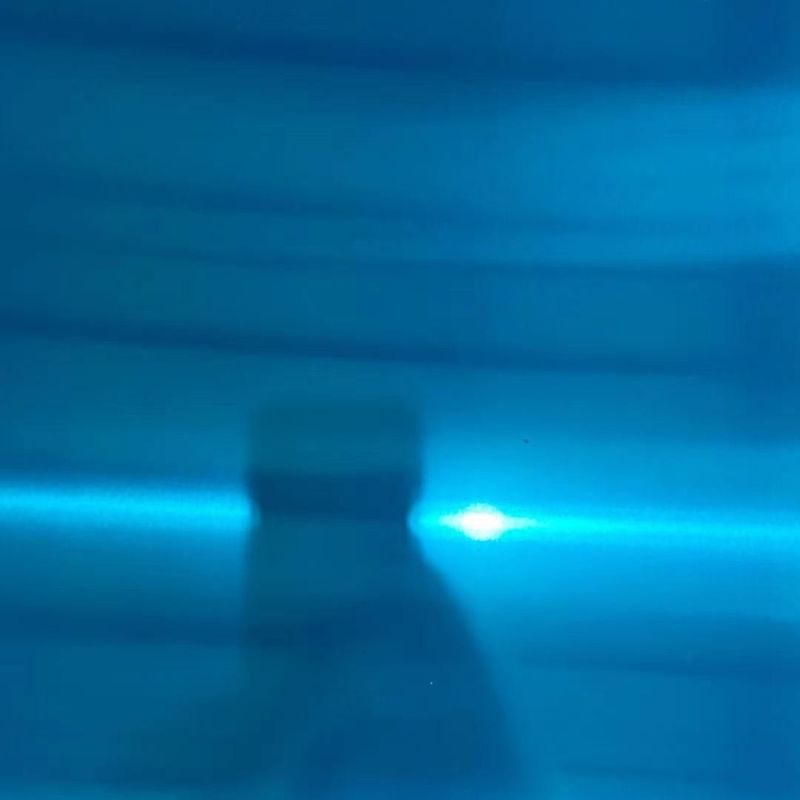

Here are the loading pictures of galvanised steel coil :



0.20mm  Z20 Regular Spangle Pre Painted Galvanized Steel Coil , Gi Coated Sheet 0

0.20mm  Z20 Regular Spangle Pre Painted Galvanized Steel Coil , Gi Coated Sheet 1
