Anti Finger Hot Dipped Galvanized Steel Flat Sheet
Product Details:
| Place of Origin: | China |
| Brand Name: | HUIYI-GI |
| Certification: | SGS , BV , ISO9001 |
| Model Number: | SPCC , SGCC , SGCH,SGCD , DX51/52/53/54D+Z , Q195/21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25tons each thickness |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard exporting package, wrapped with waterproof paper. Then high density PE film. after fully covered with iron sheet with metal edge protectors, strapped with metal bands |
| Delivery Time: | 15-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 1000 tons per month |
|
Detail Information |
|||
| Product Name: | Blue Anti-finger | Application: | Decoration , Flange Plate , Ship Plate, Building |
|---|---|---|---|
| Width: | Under 1600mm | Thickness: | 0.11-6.0mm |
| Zinc-coating: | Z20-Z600 | Standard: | ASTM , AISI , GB , JIS , DIN |
| Shape: | Coil/sheet/corrugated/flat | Coil ID: | 508mm/610mm |
| Coil Weight: | According To Customers' Requirements | Surface: | Regular /Minimised/Zero Spangle，chromated，unoiled |
| Highlight: | anti finger galvanized steel flat sheet,fingerproof galvanized steel flat sheet,fingerproof galvanized wire mesh sheets |
||
Product Description
Blue anti-finger Hot Dipped Galvanised Coil
Galvanised steel coil introduction:
Galvanized steel coil, immersing the thin steel plate in the molten zinc bath, and adhering a layer of zinc thin steel plate on the surface. Galvanised steel coil is mainly produced by the continuous galvanizing process, that is, the coiled steel plate is continuously immersed in the zinc-melted plating tank to make galvanized steel plate; alloyed galvanized steel plate. This kind of steel plate is also made by the hot-dip method, but it is heated to about 500 °C immediately after exiting the tank to form an alloy film of zinc and iron. This galvanized steel coil has good paint adhesion and weldability.
Galvanised steel coil specifications :
| Product Name | Galvanised steel coil |
| Base Metal | CR Full hard steel coils |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Material | SGCC,SGCH,DX51D |
| Thickness | 0.12-6.0 mm |
| Width | 600-1500mm |
| Coil ID | 508/ 610 mm |
| Zinc Coating | Z 30-275 (g/m2) |
| Spangle | Zero spangle,Minimum spangle,regular spangle,big spangle |
| Surface Treatment | Chromated,skin pass,oiled,phosphating |
| Coil weight | 3-10tons |
| Hardness | Soft hard(HRB60), Medium hard(HRB60-85), full Hard(HRB85-95) |
| Tolerance | 5-10% |
| Packing | kraft paper +plastic film+steel sheet +steel strips |
| MOQ | 25Tons (1* GP 20 FCL) |
| Capacity | 1,500,000.00 Ton / year |
| Trade Term | FOB,CFR,CIF |
| Payment Term | L/C or T/T(30% deposit) |
| Delivery Date | within 20-30 days after receiving the deposit |
| Loading Port | Tianjin port ,Qingdao Port or any port in China |
| Advantages | 1.High strength |
| 2.Well rainproof performance | |
| 3.Good corrosion resistance | |
| 4.easy to install and remove | |
| Application | |
| construction:roofing sheet,building wall pannel,fence, | |
| ,home application,advatising,furniture industry |
| SPECIES | GRADE | STANDARD | APPLICATION |
| PRESSING STEEL | DX51D+Z, | GB/T 2518 | common use,deep drawing |
| DX51D+ZF | |||
| DX52D+Z,DX52D+ZF | |||
| DX53D+Z,DX53D+ZF | |||
| DX54D+Z,DX54D+ZF | |||
| S220GD+Z,S220GD+ZF | |||
| CONSTRUCTION STEEL | S250GD+Z,S250GD+ZF | GB/T 2518 | construction material,corrosion resistance |
| S280GD+Z,S280GD+ZF | |||
| S320GD+Z,S320GD+ZF | |||
| S350GD+Z,S350GD+ZF | |||
| S400GD+Z,S400GD+ZF | |||
| S500GD+Z,S500GD+ZF | |||
| S550GD+Z,S550GD+ZF | |||
| HX260LAD+Z,HX260LAD+ZF | |||
| HX300LAD+Z,HX300LAD+ZF | |||
| HX340LAD+Z,HX340LAD+ZF | |||
| HX380LAD+Z,HX380LAD+ZF | |||
| HX420LAD+Z,HX420LAD+ZF | |||
| COLD ROLLED HIGH TENSILE STEEL | HC260/450DPD+Z,HC260/450DPD+ZF | GB/T 2518 | including alloy steel,corrosion resistance,good pressing |
| HC300/500DPD+Z,HC300/500DPD+ZF | |||
| HC340/600DPD+Z,HC340/600DPD+ZF | |||
| HC450/780DPD+Z,HC450/780DPD+ZF |
Galvanised steel coil application:
1. Buildings And Constructions
Floor Decks, Ceilings, Duct Work, Roofing, Siding, Sashes, Beams, Fences, Verandas, Shutters, Awnings,
Partitions, Indoor Decorations, Pipes, Ventilators, Sheds, Culverts.
2. Transportation
Body Pane, Air Cleaners, Oil Filters, Fuel Tanks, Containers, Highway Barriers.
3. Appliances
Light Fittings, Washing Machines, Dryers, Coolers, Vending Machines, Water Heaters, Stoves, Refrigerators, Freezers, Tool Boxes.
4. Agriculture
Barns, Dryer Panels, Animal Houses, Hoppers. Bar Supporters, Irrigation Systems, Green Houses.
5. Others
Furniture And Office Equipment, Entertainment Machines, Car Ports, Garden And Storage Sheds

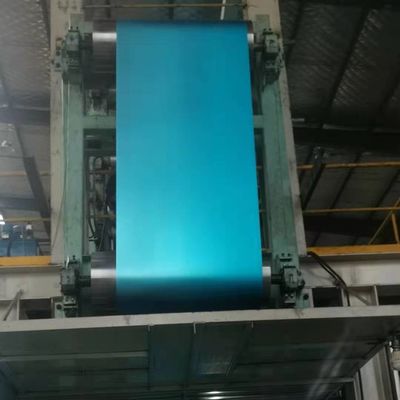

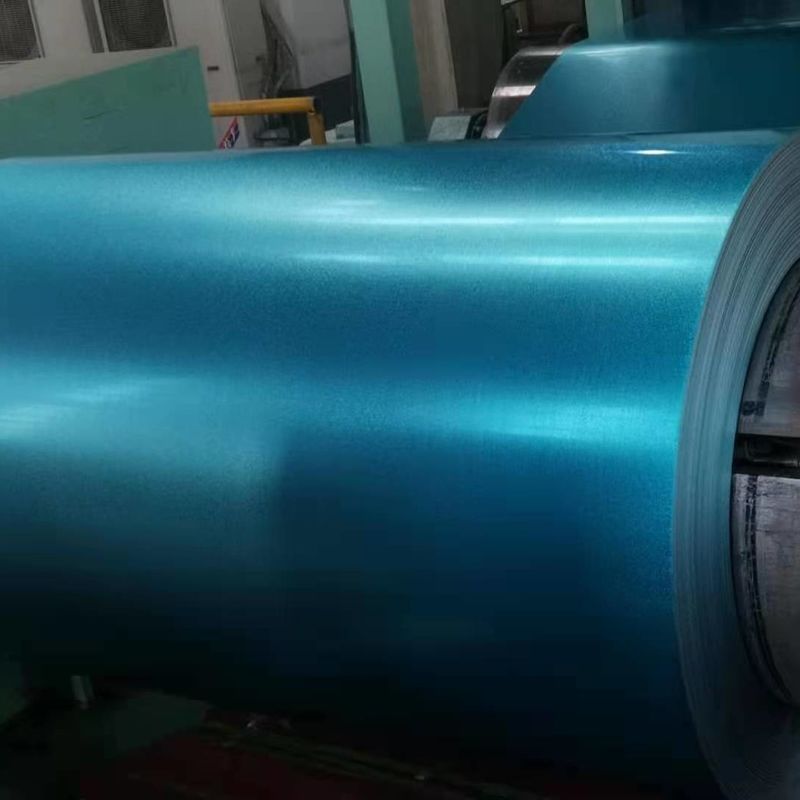

Here are the loading pictures of galvanised steel coil :
